Sealey Auto Service Line TH003 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using

this equipment.
Always load centrally and evenly with the tyres registering with both load bearing uprights in the transport mode.

DO NOT overload the trolley - see Specification.

DO NOT leave unattended, especially when loaded, unless the wheels are chocked or the trolley is otherwise secured.

DO NOT run over curbs or steps, use a ramp.

DO NOT allow others to ride on the trolley.

DO NOT use the trolley if any parts are damaged, paying particular attention to the jaws.

2. SPECIFICATION
Pick up and transport stacks of car tyres with ease. Strong tubular steel construction with welded joints. Pneumatic tyres allow transportation
over rough ground with swivel castors for stability and fulcrum purposes.
3. PARTS

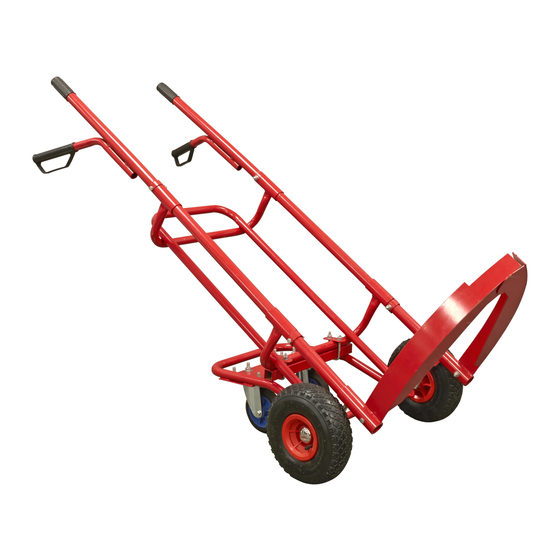

Transport handlebars
and stack support
Jaw sweep and lift
levers (with grips)
Fig.1
8
3
1
4
7
13-15
10
2
11
Operator side
© Jack Sealey Limited 2013
INSTRUCTIONS FOR:
TYRE TROLLEY 200kg CAPACITY
MODEL No: TH003
Model No. . . . . . . . . . . . . . . . . . . . . . . . . TH003
Max. Load. . . . . . . . . . . . . . . . . . . . . . . . . .200kg
Wheel Diameter . . . . . . . . . . . . . . . . . . . .250mm
Trolley Wheel Width . . . . . . . . . . . . . . . . . .90mm
Height . . . . . . . . . . . . . . . . . . . . . . . . . .1520mm
Item Part No Description
1 Stub axle and mounting frame
2 Swivel castor frame
3 Handlebar and lever
4 Adaptor tubes
5 Jaw
6 Jaw (opposite hand)
7 Adaptor tube collar
8 Handlebar grips
9 Tension spring
10 Pneumatic wheels
11 Swivel castors
12 Hub cap
13 Angle adjustment bar
14 "U" bolt
15 Clamp plate
16 Hex screws M10 X 16
17 Hex stiff nut M10
18 Plain washer Ø10
19 Hex bolt M8 X 45
20 Hex stiff nut M8
21 Plain washer Ø8
22 Handlebar plug
Fig.3
Fig.4
1
2
Original Language Version
Quantity
1
1
2
2
1
1
2
2
2
2
2
2
1
2
2
8
8
8
12
12
12
2
7
9
Fig.5
Fig.6
12
22
Fig.2
5 6
TH003 Issue: 1 - 10/04/13
