Service Manual
ISTAT I4X
9.5.2.1 Serial settings

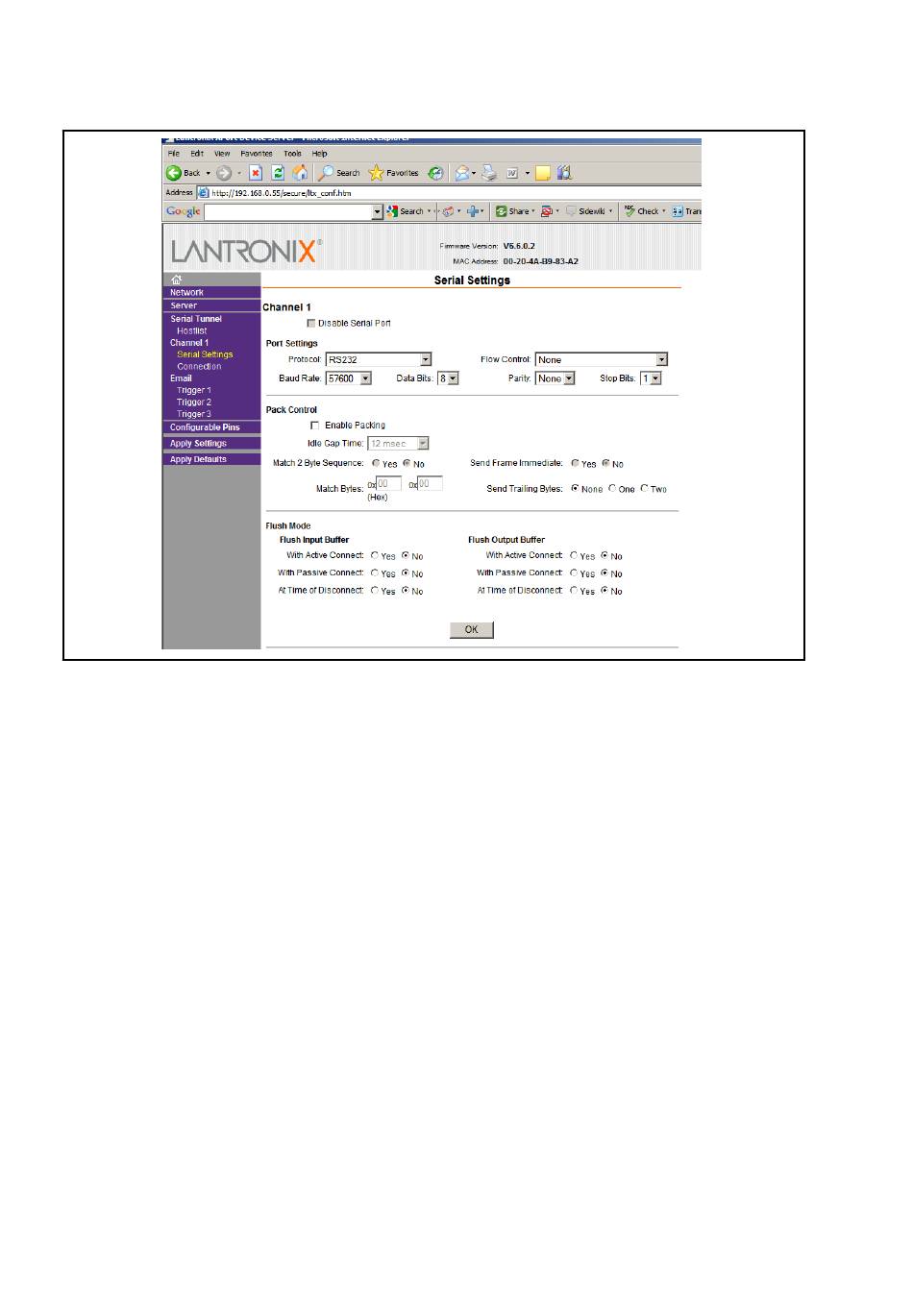

In the 'Serial Settings' window, only adjust the Baud Rate, Data Bits, Parity and Stop Bits,
these should be set to the same as the serial devices which are connected to the RS232 or
RS485 port. All other settings should not be changed from the defaults.
NOTE: Even when an Ethernet to RS485 converter is being programmed, the 'Protocol'
setting must remain as 'RS232', this is due to the internal construction of the I4X.
When settings are complete click <OK>.
