Sealey AUTO SERVICE LINE SX0407 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly
maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE
AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
WARNING! Ensure Health and Safety, local authority and general workshop practice regulations are adhered to when using tools.

DO NOT use tools if damaged.

Maintain tools in good and clean condition for best and safest performance.

Ensure that a vehicle which has been jacked up is adequately supported with axle stands.

Wear approved eye protection. A full range of personal safety equipment is available from your Sealey dealer.

Wear suitable clothing to avoid snagging. DO NOT wear jewellery and tie back long hair.

Account for all tools and parts being used and do not leave them in or near the engine.

DO NOT attempt to start engine or move vehicle, whilst tools are fitted and work is in progress.

Ensure any disconnected fuel pipes are plugged to avoid spillage.

Account for all tools and parts being used, DO NOT leave them in or near the engine. Return all parts to the case and store this in a

safe, dry, childproof location.
IMPORTANT: These instructions are provided as a guide only. Always refer to the vehicle manufacturer's service instructions,

or a proprietary manual, to establish the current procedure and data.
WARNING! The warnings referred to in this guide cannot cover all possible conditions and situations that may occur. It must be understood

that common sense and caution are factors which cannot be built into this product, but must be applied by the operator.
2. INTRODUCTION

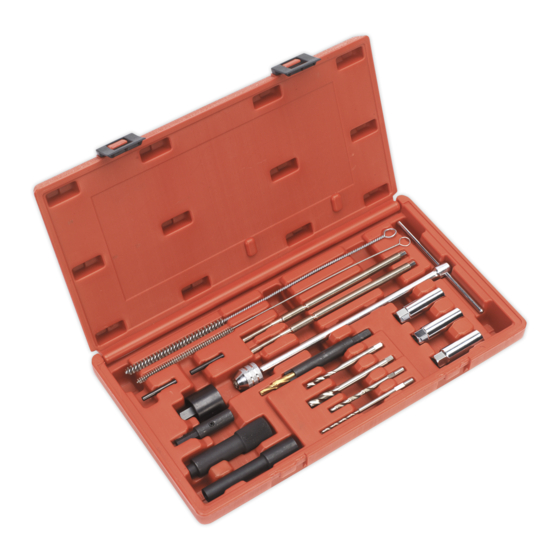

Designed for removal of damaged/broken glow plugs from cylinder heads. Suitable for glow plugs with a M8 x 1.0 thread. Set includes all required
adaptors, centring and cleaning tools to safely remove the glow plug without damaging the engine.
1. SX0407.01
2. SX0407.02
3. SX0407.03
4. SX0407.04
5. SX0407.05
6. SX0407.06
7. SX0407.07
8. SX0407.08
9. SX0407.09
De-carbonising Wire Brush (8mm)
De-carbonising Wire Brush (5mm)
Glow Plug Top Remover, 2.5mm
Glow Plug Top Remover, 3.5mm
Glow Plug Top Remover, 4.0mm
Tap, M5.5 x 9mm
Tap, M8 x 10mm
Pilot Drill, 4.5mm
Pilot Drill, 2.6mm
INSTRUCTIONS for:
Glow Plug Removal Set
MODEL No:
10. SX0407.10
11. SX0407.11
12. SX0407.12
13. SX0407.13
14. SX0407.14
15. SX0407.15
16. SX0407.16
17. SX0407.17
Original Language Version
SX0407
T-Bar
Pilot Drill Centring Sleeve (x2)
Bit - Glow Plug Top Nut Remover &
Drill Holding Adaptor (also for items 8 & 9)
Glow Plug Removal Thread Rod (x2)
Removal Nut
Tap Holding Adaptor (for items 6 & 7)
Centring Adaptor
Glow Plug Removal Sleeve
SX0407 Issue No: 1 - 07/12/10
