Sealey RGH18.V2 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY, AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
! Familiarise yourself with the application and limitations of the hose reel, as well as the specific hazards.
" WARNING! Disconnect the hose reel from the water supply before changing accessories, servicing or performing any maintenance.
! Maintain the hose reel in good condition (use an authorised service agent).
! Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
! Locate and fix the hose reel in a suitable working area. Do not position the hose in direct sun light, or in areas of extreme heat or cold.
Ensure there is adequate lighting.
" WARNING! Ensure maximum water pressure is not exceeded.
! Keep extended air hose away from heat, oil and sharp edges. Check hose for wear before each use, and ensure all connections are secure.
! Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
! Remove ill fitting clothing. Remove ties, watches, rings, and other loose jewellery and contain and/or tie back long hair.
! Keep children and unauthorised persons away from the working area.
# DO NOT operate the hose reel if any parts are damaged or missing as this may cause failure and/or personal injury.
# DO NOT exceed the rated capacity of the hose reel.
# DO NOT use the hose reel for any purpose other than that for which it is designed.
# DO NOT operate the hose reel when you are tired or under the influence of alcohol, drugs or intoxicating medication.
! When not in use ensure the water supply is turned off and tools disconnected. Disconnect from water supply and retract hose into case.
" WARNING! DO NOT dismantle the hose reel casing, or attempt to remove the screws and covers on the sides. To do so may result in
damage to the appliance and/or personal injury and will invalidate the warranty. Internal maintenance, which will require the opening of the
casing, must only be undertaken by an authorised service agent.
2. INTRODUCTION & SPECIFICATION
Tough, impact resistant, durable, composite case with wall/ceiling mounting bracket. Fitted with 18mtr high quality PVC hose. Complete with
2mtr leader hose and water gun.
Hose Length: . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18mtr
Hose Size (ID): . . . . . . . . . . . . . . . . . . . . . . . . . . .12mm
Max. Pressure: . . . . . . . . . . . . . . . . . . . . . .14bar/203psi
3. INSTALLATION
" WARNING! Do not position the reel in areas of extreme heat or cold.
NOTE: Prolonged exposure to direct and intense sunlight may affect the integrity of the polymers within the moulded components.
Avoid, if possible, positioning the reel in direct sunlight.
3.1 MOUNTING THE REEL
3.1.1 Due to the way the retractable hose operates, the reel should only be mounted in one of two positions shown below. The brackets
supplied will enable you to mount the reel in either position.
3.1.2 Ensure the wall, ceiling or other structure, to which the hose reel is to be fixed, is of sound construction and that the securing
points will hold the working strain of the hose when in use.
3.1.3 Using the mounting holes template (cut from box lid), drill appropriate holes for the desired mounting or see diagram below.
3.1.4 When wall mounted the hose exit point should not be more than 2.4 mtrs above floor level. Above this height ceiling mounting is
recommended. See diagrams below.
3.1.5 Screw fix one bracket to the chosen surface using fixings that are appropriate to the substrate and strong enough to carry the weight
of the reel plus the working strain exerted on it when in use. Position the hose reel onto the first bracket, then proceed to fix the
second bracket into place and ensure the reel is secure.
1. WALL MOUNTING
INSTRUCTIONS FOR:

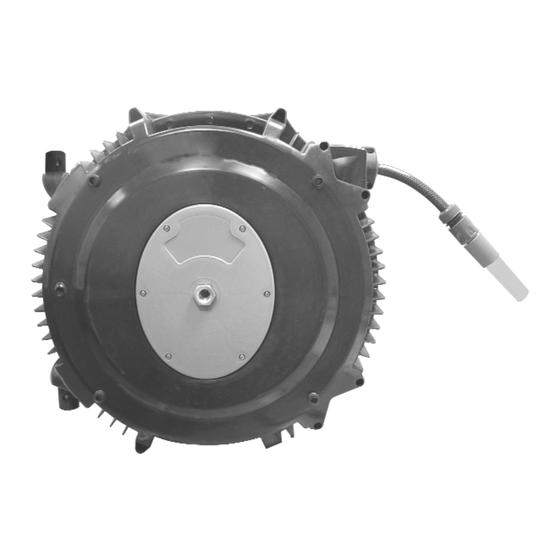

RETRACTING WATER HOSE REEL
RGH18.V2
MODEL NO:
Hose Type: . . . . . . . . . . . . . . . . . . .PVC garden hose
Inlet: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .½"BSP
2. CEILING MOUNTING
RGH18.V2 - 1 - 090106
