Sealey VS2074 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Wear eye
Refer to
protection
instruction
manual
1. SAFETY
WARNING! Ensure Health and Safety, local authority and general workshop practice regulations are adhered to when using tools.
‰
WARNING! Always use caution when working around fuel systems. The fuel in the fuel rail may be pressurised even if the
‰
engine is not running.
IMPORTANT: These instructions are provided as a guide only. Always refer to the vehicle manufacturer's service instructions, or a
proprietary manual, to establish the current procedure and data, also any warnings or cautions particular to the vehicle.
DO NOT use the puller if any parts are missing or damaged.
8
DO NOT use this puller for any purpose other than that for which it is designed.
8
Switch off vehicle's ignition and disconnect the battery before commencing work under the bonnet.
8
Never lay tools on the vehicle's battery. This may short the terminals together, causing harm to yourself, the tools, or the battery.
8
Operate in a well ventilated area. Do not inhale fuel vapours.
8
Wear approved eye protection. A full range of personal safety equipment is available from your Sealey dealer.
8
Wear suitable clothing to avoid snagging. Do not wear jewellery and tie back long hair.
8
Keep children and other unauthorised persons away from the working area.
8
Keep yourself, tools, and test equipment away from hot engine parts.
8
Always keep a fire extinguisher close by, that is suitable for fuel/electrical/chemical fires.
8
NEVER smoke or have open flames near vehicle.
8
Always relieve fuel pressure before disconnecting fuel lines from injectors.
9
Use a rag to cover fuel line fittings, when connecting or disconnecting fuel lines. Avoid contact with fuel.
9
Clean up all fuel spills immediately and dispose of all rags properly.
9
Maintain the tool components in good and clean condition for best and safest performance.
9
When work on the vehicle is finished, ensure all connections on vehicle are restored, and that there are no tools left in the engine bay.
9
Store in a safe, dry, childproof location.
9
2. INTRODUCTION

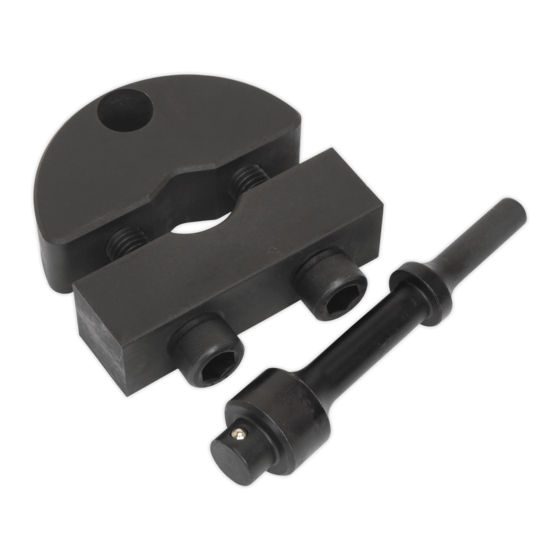

For use with Sealey injector puller slide hammer sets Model no's VS2059, VS2064 or similar tool that has a minimum 350mm shaft length and
suitable air hammer. Adaptor allows the air hammer to be used, to vibrate the injector loose instead of using a slide hammer. Ideal for stubborn
injectors when an alternative method of removal is required. Supplied in storage case.
3. SPECIFICATION
Model no: ................................................................. VS2074
Adaptor shank size: ....................................401" Parker Taper
© Jack Sealey Limited
INSTRUCTIONS FOR
AIR HAMMER ADAPTOR FOR INJECTOR PULLER
VS2074
MODEL NO:
Wear ear Wear
protection protective
gloves
Original Language Version VS2074 | Issue 1 18/11/15
