Wolfman Small Rolie Bag Mounting Manuallines

Wolfman Mounting guidelines for the Small, and Medium,and Large Rolie Bag

as Tank Panniers

Rolie Bag Tank Panniers.

Fig.1

You will need:

2-Tank Mounts

2-Small, Medium, or Large Roile Bags

Notes:

*If you are using the Large Rolie Bags you will need the Saddle Bag Mounting Kit #H608

*The Choice of the Rolie bag depends on the size of your Tank

*Also you must use the same size Rolie Bags on Both Sides

****Please read and understand these instructions before touching your bike, rack or wrench.****

*******Make sure your Gas Tank and Rolie Bag Tank Mounts are free of Dirt. **********

1. To Start you will need to "Patch Thread" your Rolie Bags.

*************************************************************************************

"Patch Thread" Setting up The Small, Medium, or Large Rolie bag.

Tools Needed:

Long Screwdriver, Chop Stick, or long tool.

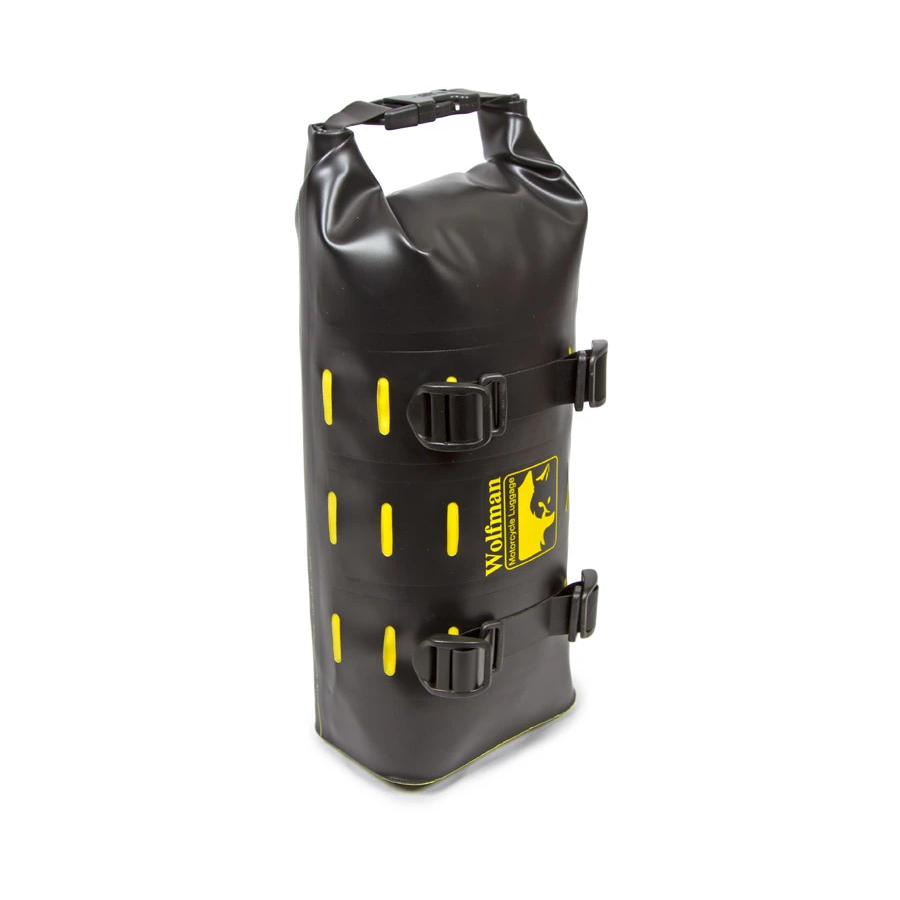

Your Small,Medium Rolie bag comes with two Seat Straps.

These will be "Patch Threaded" Fig.a

Table of Contents

Do you have a question about the Small Rolie Bag and is the answer not in the manual?

Page 1 Wolfman Mounting guidelines for the Small, and Medium,and Large Rolie Bag as Tank Panniers Rolie Bag Tank Panniers. Fig.1 Fig.1 You will need: 2-Tank Mounts 2-Small, Medium, or Large Roile Bags Notes: *If you are using the Large Rolie Bags you will need the Saddle Bag Mounting Kit #H608...
Page 2 Fig.a 1. Remove the Flappy strap keepers as they will not be used at all. 2. Insert raw end of the Seat Strap Webbing into the slot on the patch welded to the bag, on the underside of the buckles. Fig.b Small Rolie Fig.c Medium Rolie...
Page 3 Fig.3 Fig.4 You may have to trim the Tank Straps. 4. Attach the Frame Straps to the Frame in Front and Rear. Thread the RAW/CUT end of the straps around a frame member and through the Rectangle Buckle, pull tight. Fig.5 & Fig.6 Fig.5 Fig.6 **Guideline**Mount The Frame Straps around a frame member at the front of the bike, ie.
Page 4 ****Make sure the bags do not interfere with the steering From Full Left To Right. Adjust the Mounts as necessary.***** Large Rolie Bags. Due to the Size of the Large Rolie Bags you will need to use Straps between the bags to help support the bags.
