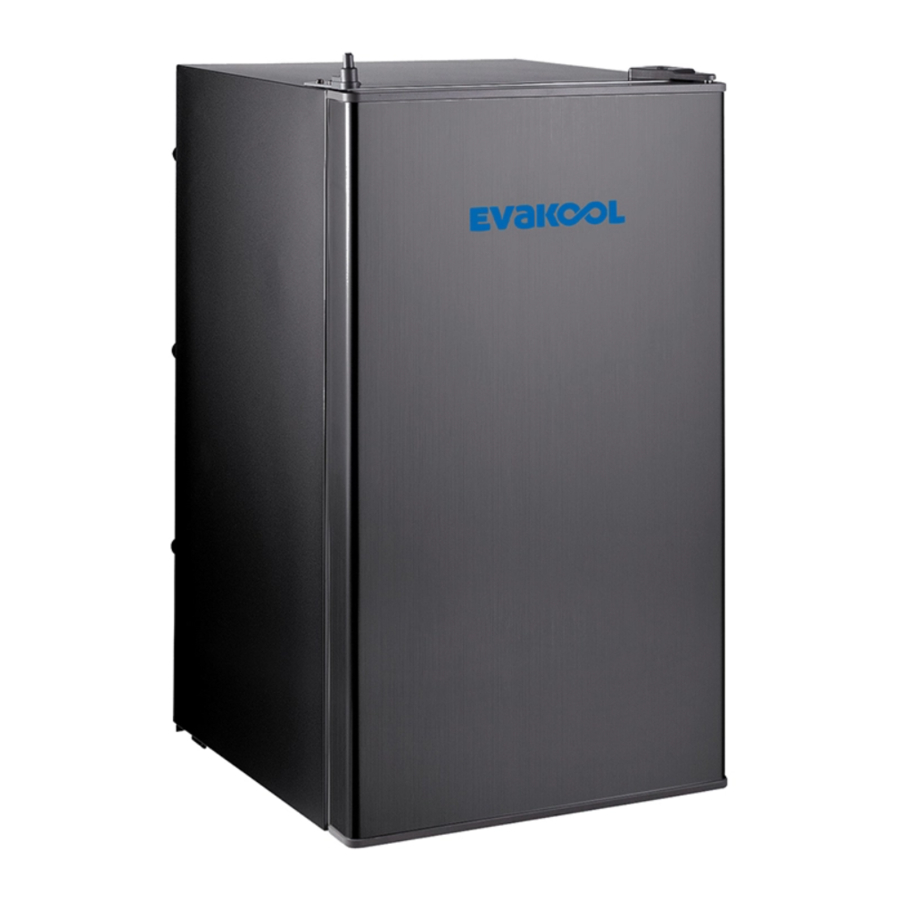

- Page 1 UPRIGHT PLATINUM ® INSTRUCTION MANUAL FOR MODELS DC95-SG DC110-SB...
-
Page 3: Table Of Contents
Please read operating manual carefully before using your unit. Please keep manual in a safe place and read our warranty statement via our website. If lost find a digital copy at Evakool.com.au or contact Evakool on 1300 385 665 (1300 EVKOOL). Contents Safety Instructions . -
Page 4: Safety Instructions
1 Safety Instructions • Warning: Do not use your unit if any cabling is damaged, frayed or exposed. • Warning: Do not attempt or continue to operate your unit if it is wet. • When using the unit ensure the circuit being used has a fuse or circuit breaker, located at the battery, the recommended size for DC 12 Volt is 15 Amp, DC 24 Volt is 7.5 Amp. - Page 5 Control Panel Dial LED Light Fault Light 1 = Warmer 7 = Coldest 0 = O • Connect fridge to 12 or 24V DC. Power Source Cut O Voltage Cut In Voltage 12V DC 10.4V 11.7V 24V DC 22.8V 24.2V •...
-
Page 6: Installation Guide
• Make sure the unit is easily accessible and easy to remove. In case of a warranty repair, the unit needs to be uninstalled and delivered to EvaKool or a recommended service agent as part of the warranty requirements. - Page 7 5. Unscrew and remove the 2 x screws that hold down the door locking mechanism. 6. Remove the plastic caps next to the locking mechanism. 7. Swap the door locking mechanism and hinge over to the opposite side and then screw them in place.
-
Page 8: Cross Flow Ventilation
5. Cross Flow Ventilation Cross flow ventilation ensures that there is su icient fresh air entering the space where your refrigerator is operating and that the stale hot air is extracted from the area. Fresh air is supplied to the space, through openings or vents, preferable from the outside to reduce the risk of hot air recycling through the condenser. - Page 9 Do Not: • Have only one vent to remove hot air, as this does not work. You need air in and air out, cross flow ventilation is the only way air will move. • This also applies to fans. A sealed compartment with one opening with a fan in it does EXTERNAL VENTING not remove the air, again you need cross flow, air in and air out.
- Page 10 If you are installing your fridge next to cabinetry please follow these diagrams: 50mm ca. 50mm(2inch) DC95 DC110 50mm 50mm 50mm 50mm...
-
Page 11: Troubleshooting
6. Troubleshooting The Unit is Not Turning On • Check whether the unit has been turned on. • Check the power supply (try a di erent power source/vehicle/socket). • Check whether the plug and the socket have a good connection. •... - Page 12 Unusual noise when refrigerator is working • The refrigerator is not placed on a level surface. If none of the above solves your issues please contact Evakool on 1300 385 665 or visit our website www.evakool.com to find a service agent.
-
Page 13: Preventative Maintenance & Care
• Do not store electrical devices such as the 12 volt adaptor inside the refrigerator. Refrigerator Maintenance • As your EvaKool fridge is a portable appliance it is subjected to a variety of di erent operating conditions. Every 12 months of use, a general inspection and maintenance should be carried out. -
Page 14: Warranty Statement
(https://www.evakool.com.au/stores?type=2). It is the purchaser’s responsibility to freight the unit to and from the service agent. • EvaKool will not be held responsible for any damage or loss su ered or cost incurred whilst fridge is in transit. • Warranty repairs may only be carried out by an authorised service agent. EvaKool will not reimburse repair claims carried out by unauthorised service agents. -
Page 15: Product Drawings
9. Product Drawings DC95... - Page 16 DC110...
- Page 20 For your nearest stockist contact Evakool T: 1300 385 665 (1300 EVKOOL) E: sales@evakool.com evakool.com.au For Service and Warranty support contact Evakool T: 1300 385 665 (EVKOOL) E: warranty@evakool.com...
