Victron energy MultiPlus-II 12|3000|120-50 Manual

2x120v
Hide thumbs Also See for MultiPlus-II 12|3000|120-50:
Table of Contents

Advertisement

Quick Links

ENGLISH
MultiPlus-II 12|3000|120-50
2x120V
Rev 01 02/2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MultiPlus-II 12|3000|120-50 and is the answer not in the manual?

Questions and answers

Related Manuals for Victron energy MultiPlus-II 12|3000|120-50

Summary of Contents for Victron energy MultiPlus-II 12|3000|120-50

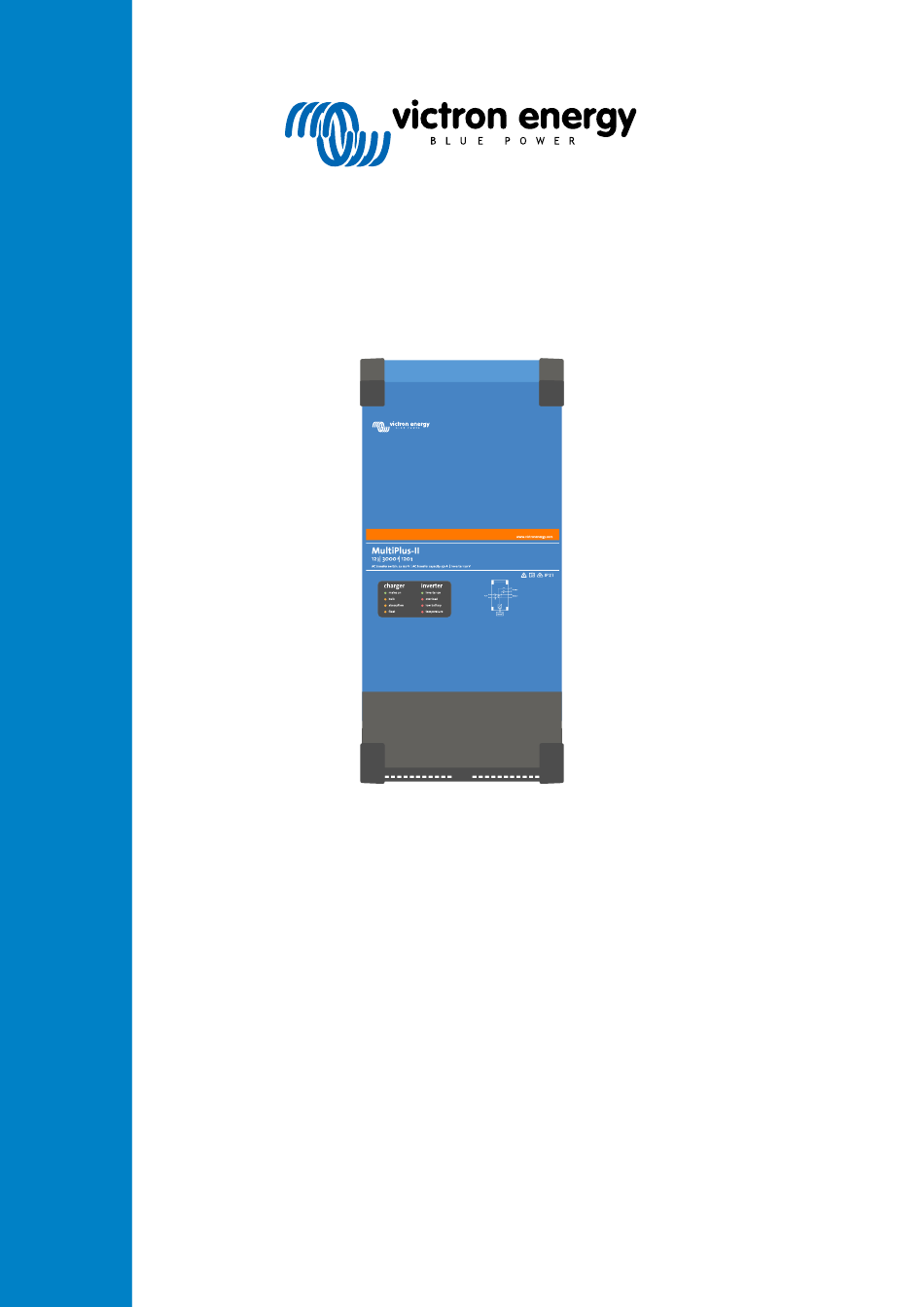

  • Page 1 ENGLISH MultiPlus-II 12|3000|120-50 2x120V Rev 01 02/2021...

  • Page 2: Table Of Contents

    MultiPlus-II 12|3000|120-50 2x120V Table of Contents 1. IMPORTANT SAFETY INSTRUCTIONS - Save these instructions! ............1 2. DESCRIPTION ......................... 2 2.1. 120/240V input and output, or 120V input and output (always 120V output when in inverter mode) ....2 2.2. Other features ........................ 2 2.3.
  • Page 3 MultiPlus-II 12|3000|120-50 2x120V D. APPENDIX D: Three phase connection ..................30 E. APPENDIX E: Charge algorithm ....................31 F. APPENDIX F: Temperature compensation ..................32 G. APPENDIX G: Dimensions ....................... 33 H. APPENDIX H: Power flow diagrams .................... 34...

  • Page 4: Important Safety Instructions - Save These Instructions

    MultiPlus-II 12|3000|120-50 2x120V 1. IMPORTANT SAFETY INSTRUCTIONS - Save these instructions! In general Please read the documentation supplied with this product first, so that you are familiar with the safety signs en directions before using the product. This product is designed and tested in accordance with international standards. The equipment should be used for the designated application only.

  • Page 5: Description

    MultiPlus-II 12|3000|120-50 2x120V 2. DESCRIPTION 2.1. 120/240V input and output, or 120V input and output (always 120V output when in inverter mode) The AC input can be supplied from a split-phase 120/240V source or a single-phase 120V source. When an AC source is available, the MultiPlus will feed through the AC to its output. The output will therefore mirror the AC input.

  • Page 6: Li-Ion Batteries

    MultiPlus-II 12|3000|120-50 2x120V The microprocessor-driven adaptive battery management system can be adjusted for various types of batteries. The adaptive function automatically adapts the charging process to battery use. The right amount of charge: variable absorption time In the event of slight battery discharge, absorption is kept short to prevent overcharging and excessive gas formation. After deep discharging, the absorption time is automatically extended in order to fully charge the battery.

  • Page 7: Operation

    MultiPlus-II 12|3000|120-50 2x120V 3. OPERATION 3.1. On/Off/Charger Only Switch When switched to ‘on’, the product is fully functional. The inverter will come into operation and the LED ‘inverter on’ will light up. An AC voltage connected to the ‘AC in’ terminal will be switched through to the ‘AC out’ terminal, if within specifications. The inverter will switch off, the ‘mains on’...

  • Page 8: Led Indications

    MultiPlus-II 12|3000|120-50 2x120V c. Switch once more rapidly from ‘on’ to ‘charger only’ and leave the switch in this position. 4. On the MultiPlus-II (and, if connected, on the MultiControl panel) the three LEDs ‘Bulk’, ‘Absorption’ and ‘Float’ will now flash 5 times.
  • Page 9 MultiPlus-II 12|3000|120-50 2x120V Low battery alarm The inverter has switched off due to low battery voltage. The "low battery" LED is blinking. Temperature pre-alarm The internal temperature is reaching a critical level. The "temperature" LED is blinking. Temperature alarm The inverter has switched off due it's internal temperature being too high.
  • Page 10 MultiPlus-II 12|3000|120-50 2x120V Bulk charging The AC input voltage is switched through and the charger operates in bulk mode. The "bulk" LED is on. BatterySafe The mains voltage is switched through and the charger is on. However, the set absorption voltage has not yet been reached. The "bulk"...
  • Page 11 MultiPlus-II 12|3000|120-50 2x120V PowerAssist The AC input is switched through, but the load requires more current than the preset maximum input current. The inverter is switched on to supply the required additional current. The "mains on" LED is on and the "inverter" LED is blinking.

  • Page 12: Installation

    MultiPlus-II 12|3000|120-50 2x120V 4. INSTALLATION This product may only be installed by a qualified electrical engineer. 4.1. Location The product must be installed in a dry and well-ventilated area, as close as possible to the batteries. There should be a clear space of at least 10 cm around the appliance for cooling.

  • Page 13: Connection Of Battery Cables

    MultiPlus-II 12|3000|120-50 2x120V WARNING – RISK OF EXPLOSIVE GASES) WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY OPERATION. FOR THIS REASON, IT IS OF UTMOST IMPORTANCE THAT EACH TIME BEFORE SERVICING THE UNIT IN THE VICINITY OF THEBATTERY, YOU READ THIS MANUAL AND FOLLOW THE INSTRUCTIONS EXACTLY.

  • Page 14: Connection Of The Ac Cabling

    MultiPlus-II 12|3000|120-50 2x120V Recommended cable lugs Size AWG 2/1 Molex part no. 19221-0243 AWG 1/0 Molex part no. 19221-0240 * Follow local installation rules. ** Do not locate battery cables in a closed conduit *** “2x” means two positive and two negative cables.

  • Page 15: Optional Connections

    From left to right: “N” (neutral) , “L2” (phase 2), “PE” (earth) and “L1” (phase 1) With its PowerAssist feature the Multi can add up to 3kVA (that is 3000 / 120 = 25A) to the output L1 during periods of peak power requirement.

  • Page 16: Voltage Sense (Connection Terminal J, See

    MultiPlus-II 12|3000|120-50 2x120V 4.4.5. Voltage sense (connection terminal J, see appendix A) For compensating possible cable losses during charging, two sense wires can be connected with which the voltage directly on the battery or on the positive and negative distribution points can be measured. Use wire with a cross-section of 0,75mm².

  • Page 17: Configuration

    MultiPlus-II 12|3000|120-50 2x120V 5. CONFIGURATION This section is intended mainly for stand-alone applications. Settings may only be changed by a qualified electrical engineer. Read the instructions thoroughly before implementing changes. During setting of the charger, the AC input must be removed.
  • Page 18 MultiPlus-II 12|3000|120-50 2x120V Input frequency range Input frequency range accepted by the MultiPlus-II. The MultiPlus-II synchronises within this range with the AC input frequency. The output frequency is then equal to the input frequency. Adjustability: 45 – 65 Hz; 45 – 55 Hz; 55 – 65 Hz Input voltage range Voltage range accepted by the MultiPlus-II.
  • Page 19 MultiPlus-II 12|3000|120-50 2x120V This setting can also be used for many other batteries: e.g. Victron AGM Deep Discharge and other AGM batteries, and many types of flat-plate flooded batteries. With VEConfigure the charge algorithm can be adjusted to charge any battery type (Nickel Cadmium batteries, Lithium-ion...

  • Page 20: Configuring The Multiplus-Ii

    MultiPlus-II 12|3000|120-50 2x120V BoostFactor Change this setting only after consulting with Victron Energy or with an engineer trained by Victron Energy! Programmable relay The relay can be programmed for all kinds of other applications, for example as a starter relay for a generator.

  • Page 21: Maintenance

    MultiPlus-II 12|3000|120-50 2x120V 6. MAINTENANCE The MultiPlus-II does not require specific maintenance. It will suffice to check all connections once a year. Avoid moisture and oil/ soot/vapours, and keep the device clean. Page 18 MAINTENANCE...

  • Page 22: Error Indications

    MultiPlus-II 12|3000|120-50 2x120V 7. ERROR INDICATIONS With the procedures below, most errors can be quickly identified. If an error cannot be resolved, please refer to your Victron Energy supplier. We recommend to use the toolkit app to link LED alarm codes to a description of the problem/alarm, see https:// www.victronenergy.com/support-and-downloads/software#victron-toolkit-app...

  • Page 23: Special Led Indications

    MultiPlus-II 12|3000|120-50 2x120V Problem Cause Solution The charger does not MultiPlus-II is in ‘Bulk protection’ Check your batteries. operate. mode thus, the maximum bulk You can reset the error mode by charging time of 10 hours is ‘Bulk’ LED flashes and switching off and back on the exceeded.

  • Page 24: Ve.bus Led Indications

    MultiPlus-II 12|3000|120-50 2x120V Absorption and float LEDs The battery temperature as measured has an extremely unlikely value. The sensor is flash synchronously probably defective or has been incorrectly connected. The device will remain in normal (simultaneously). operation. If the "inverter on" LED flashes in phase opposition, this a VE.Bus error code (see further on).
  • Page 25 MultiPlus-II 12|3000|120-50 2x120V All of the conditions below must be met!: 1. The device is in error! (No AC output) 2. Inverter LED flashes (in opposition to any flashing of the Bulk, Absorption or Float LED) 3. At least one of the LEDs Bulk, Absorption and Float is on or flashing...
  • Page 26 Update the firmware in the last device that was switched on. Internal error. Should not occur. Switch all equipment off, and then on again. Contact Victron Energy if the problem persists. Page 23 ERROR INDICATIONS...

  • Page 27: Technical Specifications

    MultiPlus-II 12|3000|120-50 2x120V 8. TECHNICAL SPECIFICATIONS MultiPlus-II 12/3000/120-50 2x120V 12/3000/120-50 2x120V PowerControl & PowerAssist Yes (on L1 input) Transfer switch Maximum AC input current 50A (each legs) INVERTER DC Input voltage range 9,5 – 17 V Output when in inverter mode Output voltage: 120 VAC ±...
  • Page 28 MultiPlus-II 12|3000|120-50 2x120V MultiPlus-II 12/3000/120-50 2x120V 12/3000/120-50 2x120V 120/240 V AC-connection Screw terminals 21 mm² (4 AWG) Weight 22 kg (12 V) Dimensions (hxwxd) mm 578 x 275 x 148 STANDARDS Safety EN-IEC 60335-1, EN-IEC 60335-2-29 Emission, Immunity N 55014-1, EN 55014-2...

  • Page 29: Appendix A: Connection Overview

    MultiPlus-II 12|3000|120-50 2x120V Appendix A. APPENDIX A: Connection overview Load connection AC out2 - From left to right: N (neutral), L2 (phase 2), PE (earth/ground), L1 (phase 1) Load connection AC out1 - From left to right: N (neutral), L2 (phase 2), PE (earth/ground), L1 (phase 1)
  • Page 30 MultiPlus-II 12|3000|120-50 2x120V I/O Terminal, from top to bottom: 1. 12V 100mA 2. Programmable contact K1 - open collector 70V 100mA 3. External ground relay + 4. External ground relay – 5. Aux input 1 + 6. Aux input 1 –...

  • Page 31: Appendix B: Block Diagram

    MultiPlus-II 12|3000|120-50 2x120V Appendix B. APPENDIX B: Block diagram ACout2 ACout1 AC in Battery * See table in Chapter 4.2 ‘Recommended DC fuse’ Page 28 APPENDIX B: Block diagram...

  • Page 32: Appendix C: Parallel Connection

    MultiPlus-II 12|3000|120-50 2x120V Appendix C. APPENDIX C: Parallel connection Unit1: Master Unit2: Slave1 Unit3: Slave2 GX device + BAT - + BAT - + BAT - AC IN N AC OUT2 N AC IN L1 AC OUT2 L1 AC IN L2...

  • Page 33: Appendix D: Three Phase Connection

    MultiPlus-II 12|3000|120-50 2x120V Appendix D. APPENDIX D: Three phase connection Unit1: Master L1 Unit2: Master L2 Unit3: Master L3 GX device + BAT - + BAT - + BAT - AC IN N AC OUT2 N AC IN L1 AC OUT2 L1...

  • Page 34: Appendix E: Charge Algorithm

    MultiPlus-II 12|3000|120-50 2x120V Appendix E. APPENDIX E: Charge algorithm 4-stage charging: Bulk Entered when charger is started. Constant current is applied until nominal battery voltage is reached, depending on temperature and input voltage, after which constant power is applied up to the point where excessive gassing is starting (14.4 V resp. 28.8 V, temperature compensated).

  • Page 35: Appendix F: Temperature Compensation

    MultiPlus-II 12|3000|120-50 2x120V Appendix F. APPENDIX F: Temperature compensation EN Default output voltages for Float and Absorption are at 25 °C. Reduced Float voltage follows Float voltage and Raised Absorption voltage follows Absorption voltage. In adjust mode temperature compensation does not apply.

  • Page 36: Appendix G: Dimensions

    MultiPlus-II 12|3000|120-50 2x120V Appendix G. APPENDIX G: Dimensions Dimension Drawing - MultiPlus-II PMP122305100 MultiPlus-II 12/3000/120-50 2x120V 275.4 148.2 6(4x) 6.2(3x) 32.5 57.5 98.3 87.5 87.5 577.6 125.6 44.9 137.6 148.2 Dimensions in mm Page 33 APPENDIX G: Dimensions...

  • Page 37: Appendix H: Power Flow Diagrams

    MultiPlus-II 12|3000|120-50 2x120V Appendix H. APPENDIX H: Power flow diagrams Output relay 0 VAC 0 VAC 120 VAC 120 VAC 120 VAC 120 VAC Transfer relays internal ground relay Battery Power flow inverter Page 34 APPENDIX H: Power flow diagrams...
  • Page 38 MultiPlus-II 12|3000|120-50 2x120V Output relay 0 VAC 120 VAC 120 VAC 0 VAC 0 VAC 120 VAC 120 VAC 120 VAC 120 VAC Transfer relays internal ground relay Battery Power flow single phase Page 35 APPENDIX H: Power flow diagrams...
  • Page 39 MultiPlus-II 12|3000|120-50 2x120V Output relay 240 VAC 120 VAC 120 VAC 240 VAC 120 VAC 120 VAC 120 VAC 120 VAC Transfer relays internal ground relay Battery Power flow split phase Page 36 APPENDIX H: Power flow diagrams...
