- Page 1 User manual of Direct Thermal Barcode Printer Brand: XPRINTER Model: XP-420B Paper size: A6 size (100mm x 150mm)
-
Page 2: Table Of Contents
CONTENT Instructions: Clicking at each topic below will bring you to the page directly. A) Equipment checklist B) Printer parts C) Download & save the driver file D) Installation E) Printer setting F) Size setting... -
Page 3: A) Equipment Checklist
A) Equipment checklist The equipment provided in the box. 1. Barcode Printer 2. Power Adapter 3. Power Cord 5/6. Paper Spindle 4. USB Cable... -
Page 4: B) Printer Parts
B) Printer parts Below is the printer descriptions. Front surface Clear Window Feed button with LED indicator light Button to open the top cover Back surface Power Switch button I - On O - Off SD Card Power Jack LAN interface USB cable interface... - Page 5 B) Printer parts Connect the printer with a PC/laptop. Power switch button Power Jack USB cable interface Plug in the battery and the cable to connect with a • PC/Laptop. Then, turn on the Power Switch button. • The symbol meaning: •...
-
Page 6: C) Download & Save The Driver File
Step 1 From the link given, www.skynet.com.my/labelprinter, select a model (X-Printer 420B) and download the Driver. Download Driver User Manual (English) Step 2 Create a folder for Xprinter XP-420B. Then, save the ZIP file that already been downloaded into this folder. - Page 7 Click at the ZIP file and right-click. Then, click on the Extract Here to extract the file. Step 4 After the file is already extract, find the folder name as shown below (x printer xp-420b). Then, click to open the folder.
- Page 8 C) Download & save the driver file Step 5 Click and open the printer driver folder to get the installer. Step 6 Next, double-click on the driver application and the installation will start.
-
Page 9: D) Installation
D) Installation Once the printer connect with the PC/laptop and the Driver successfully downloaded, continue with the installation process. Step 1 Tick ‘I accept the terms in the license agreement’. Then, click on the Next button. - Page 10 D) Installation Step 2 Click on the Next button. Step 3 Click on the Finish button.
- Page 11 D) Installation Step 4 Tick to ‘Install printer drivers’. Then, click on the Next button.
- Page 12 D) Installation Step 5 Make sure the printer has already connected with the PC/laptop. Then, tick at the USB and click on the Next button. Step 6 Once the USB is detected, this screen will appear. Next, click on the Next button.
- Page 13 D) Installation Step 7 Select ‘Do not share the printer’ and click on the Next button. Step 8 Click on the Finish button.
-
Page 14: E) Printer Setting
E) Printer setting Use the paper spindle to insert the paper roll and do the calibration process. Step 1 Open the top cover. Press the button on • both sides and pull forward. Step 2 Insert the paper roll. Insert the paper using •... - Page 15 E) Printer setting Step 3 Close the top cover. Leave some excess • paper as shown for the calibration process. Step 4 Calibration process: Press the feed button • until the LED light color change from blue to red color. The calibration process •...
-
Page 16: F) Size Setting
Step 1 Go to setting and click on the Devices. Step 2 Then, go to Printers & scanners and find the Xprinter XP- 420B. Click on the printer and select the Manage button. - Page 17 F) Size setting Step 3 Go to Printing Preferences to set the paper size for Xprinter XP- 420B. Step 4 In the Page Setup, choose the paper size which is 4 x 6 (4.00in x 6.00in) for A6 size. After that, click on the Apply button.
- Page 18 Thank You...
Need help?
Do you have a question about the XP-420B and is the answer not in the manual?
Questions and answers

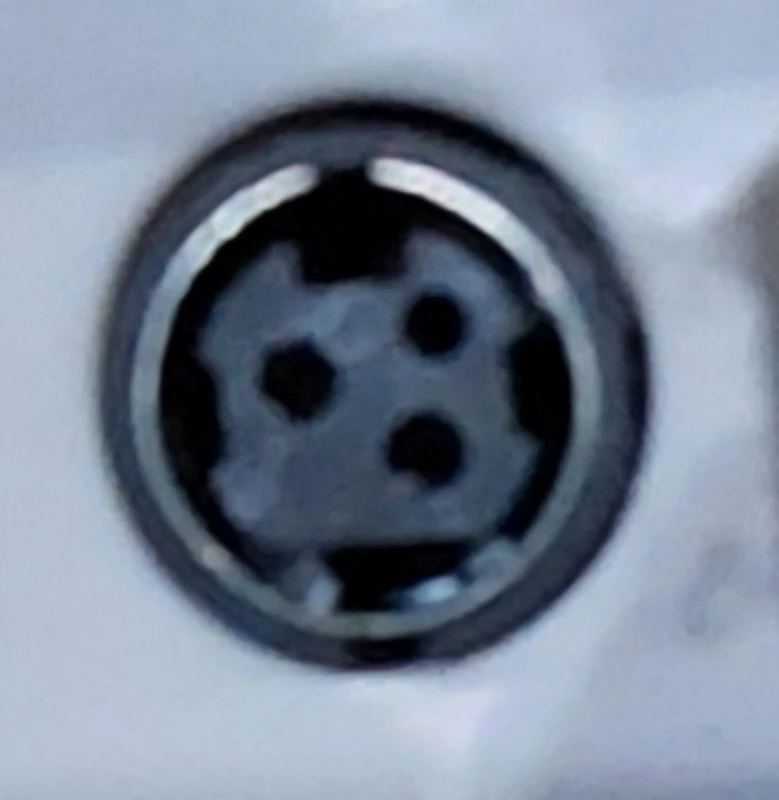

power jack 24V dc, uses what connector?
