Sealey ES502.V2 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
Wear protective
instructions
gloves
1. SAfETy
ensure that the engine support is in good working order. Take action for immediate repair or replacement of damaged parts. Use
9
genuine parts only. The use of unauthorised parts may be dangerous and will invalidate the warranty.
locate the vehicle in a suitable, well lit work area.
9
Keep work area clean and tidy and free from unrelated materials.
9
ensure the vehicle handbrake is engaged and the engine/motor is switched off.
9
ensure all non-essential persons keep a safe distance whilst the engine support is in use.
9
dO NOT use the engine support if damaged.
8
dO NOT allow untrained persons to operate the engine support.
8
dO NOT use the engine support for purposes other than that for which it is designed.
8
dO NOT exceed the rated capacity of the engine support.
8
When not in use, store engine support in a safe, dry, childproof area.
9
2. INTROdUcTION
designed to support and accurately position engines during maintenance operations such as replacing anti-vibration mountings and
certain body panels. Also used as an aid for the removal of gearboxes and transmissions. Beam is supported on rubber feet and fine
adjustment control is obtained by using two screw/hook mechanisms. Supplied with two short lengths of chain.
3. SPEcIfIcATION
Maximum Capacity ..........................................................500kg
Maximum Width ...........................................................1580mm
Minimum Width ..............................................................585mm
Screw Travel ..................................................................230mm
4. cONTENTS
4.1. Refer to fig.1.
Item ........................................................... description
1............................................................................Beam
2............................................................... lifting Handle
3..........................................................Adjustable Screw
4............................................................. Standing Block
5..............................................................................Foot
6..................................................................... Grip Knob
7............................................. Washer 13mm Internal Ø
8............................................. Washer 22mm Internal Ø
9............................................................................Chain
10..................................M10 x 30 Bolt 16mm & locknut
5. ASSEMBly
Note: numbers in brackets refer to item numbers shown in fig.1
5.1. Insert a foot (5) into the slot in the standing block (4). Align the holes in the two components and join them together using an M12 x 25
bolt (10). note that the standing block (4) has a threaded hole on one side and a clearance hole on the other.
5.2. Place a large washer (8) over the upstanding rod on the standing block (4) and insert the rod through the slot in the main support
guide from underneath. Place a large washer (7) over the thread on top of the rod and secure the assembly to the main support guide
by screwing on a grip knob (6) as shown in fig.1. Assemble the other foot/standing block and fix the assembly to the other end of the
main guide beam in the same way.
© Jack Sealey limited
ENGINE SUPPORT BEAM
500kG cAPAcITy, dOUBlE SUPPORT
Model no:
Wear safety Wear protective
footwear clothing
Original Language Version
ES502.V2

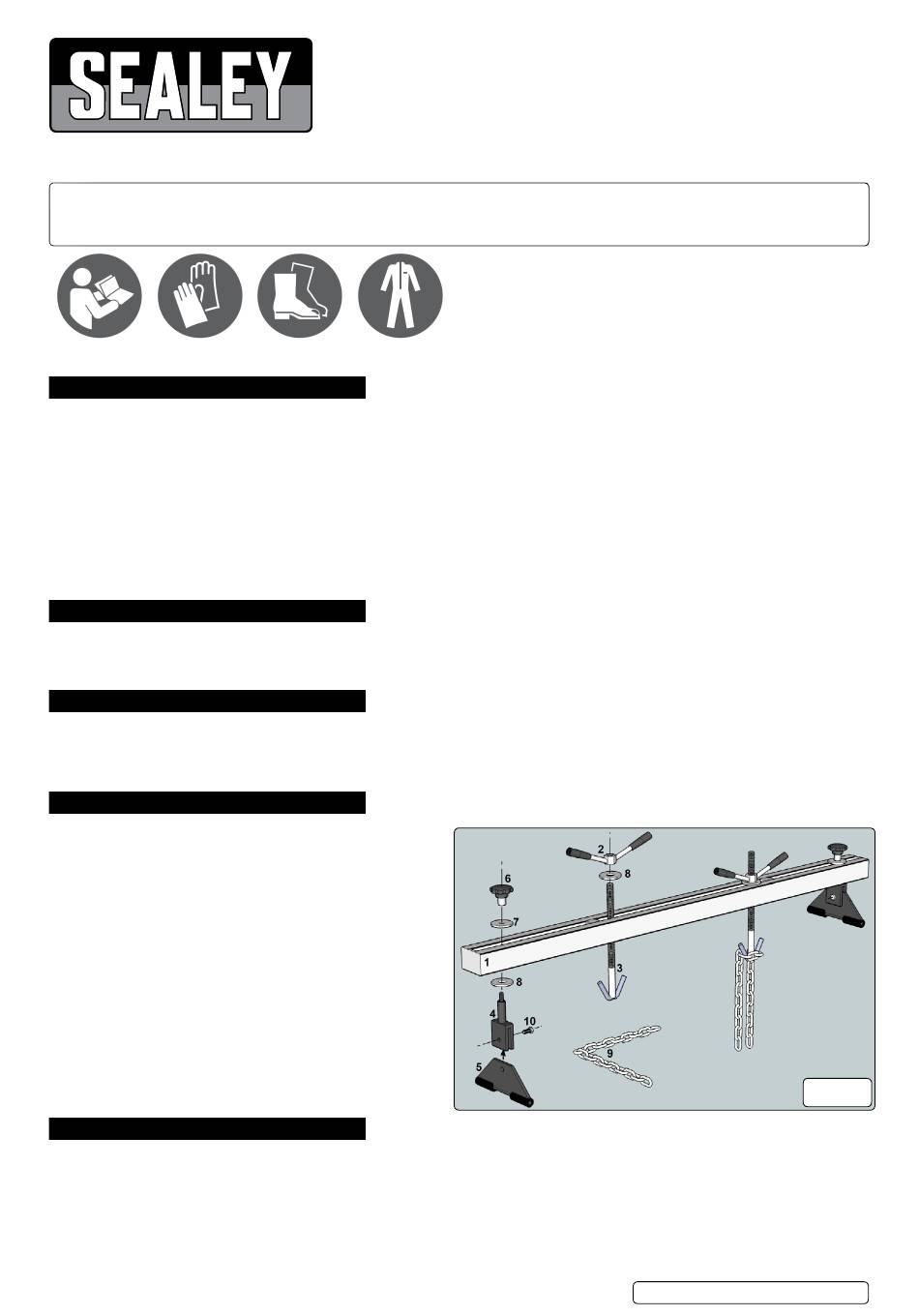

fig.1
eS502.V2 Issue 2 (HF) 20/08/18
