Zynex Medical NexWave User Manual page 21

PAIN CONTROL
INTENSITY LEVEL:
The stimulation level should be set to a strong, but comfortable strength.
DEVICE SET-UP:
Modality Mode
________________________________________________________________________________________________________________________________________________________________________
IFC LoHi, Low, Cmb
TENS Swp, Lmd, Hmd
ELECTRODE PLACEMENT
Electrodes should surround the targeted treatment site with area of pain located in the
center of the electrode area.

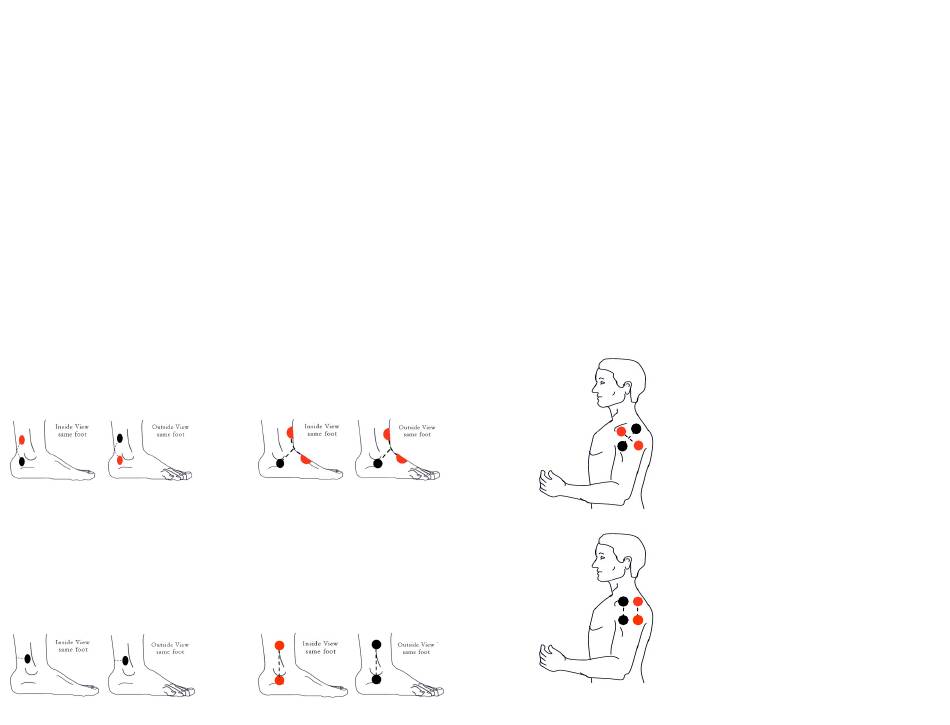

IFC Modality
Place the electrodes with the RED
pattern depicted on figure below.
ACHILLES TENDON
TENS Modality
Place the electrodes with the RED
pattern depicted on figure below. Crisscrossing the electrodes is optional when using
the TENS modality.
ACHILLES TENDON
28
Ankle
Treatment Time
40 minutes 4 times/day
As needed
and BLACK ends of the lead wires according to
ANKLE
and BLACK ends of the lead wires according to
ANKLE
PAIN CONTROL
INTENSITY LEVEL:
The stimulation level should be set to a strong, but comfortable strength.
DEVICE SET-UP:
Modality Mode
________________________________________________________________________________________________________________________________________________________________________
IFC LoHi, Low, Cmb
TENS Swp, Lmd, Hmd
ELECTRODE PLACEMENT
Electrodes should surround the targeted treatment site with area of pain located in the
center of the electrode area.
21
Shoulder
Treatment Time
40 minutes 4 times/day
As needed
IFC Modality
Place the electrodes with the RED
BLACK ends of the lead wires according
to pattern depicted on figure to the left.
TENS Modality
Place the electrodes with the RED
BLACK ends of the lead wires according
to pattern depicted on figure to the left.
Using both channels and crisscrossing
the electrodes is optional when using the
TENS modality.
and
and
