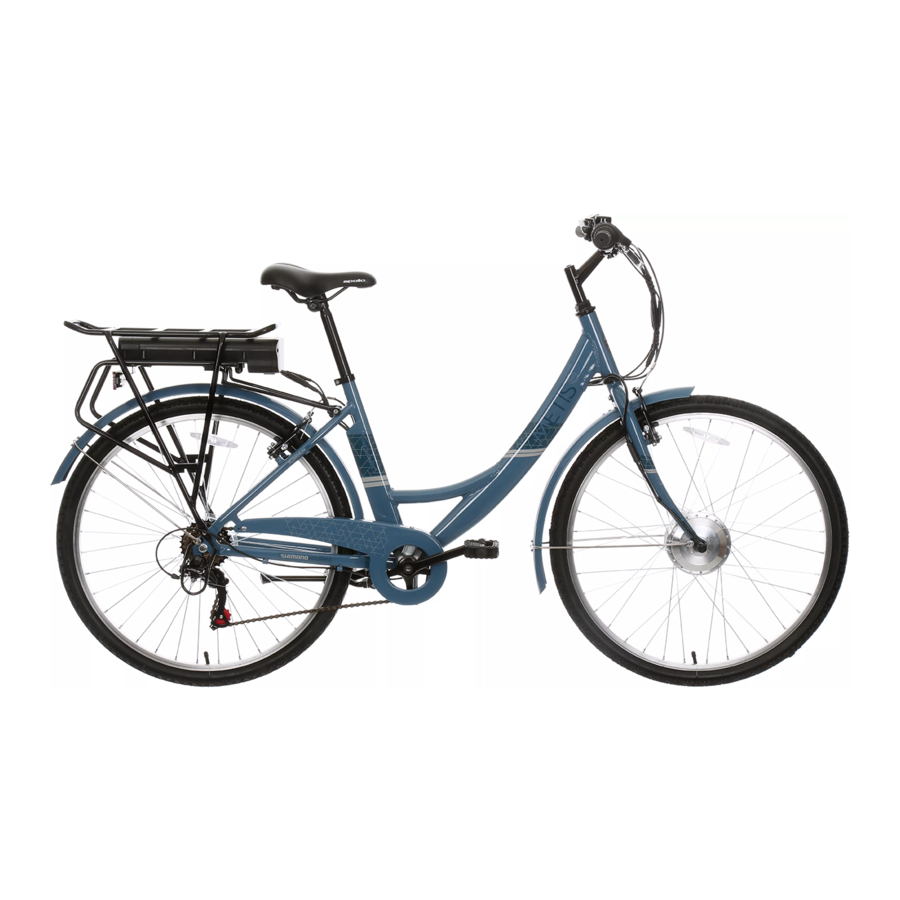

- Page 1 Apollo Metis E-bike Front Motor Drive System Owner’s Manual...
-
Page 2: Table Of Contents
Contents Safety information ................. 2 Riding the E-Bike ................5 Product characteristics ............... 6 Product specification ..............6 Display .................... 7 Battery ..................... 7 Battery charger ................8 Charging the battery ..............8 Battery LED indicators ............9 State of current charge .............. Error! Bookmark not defined. Battery fault indication ...................... -
Page 3: Safety Information
Safety information WARNING There is an increased risk of injury – even fatal – if you do not follow instructions. WARNING There is a risk of serious injury – even fatal – if you do not follow instructions. Managing the battery How safe maintenance is ensured ... - Page 4 Managing the battery WARNING Do not subject the battery or the charger to physical shocks, e.g., by dropping. There is a danger of personal injury or property damage Fluid that leaks from the battery pack may cause skin irritation or burns. In the event of accidental contact, rinse with water.
- Page 5 WARNING Please ensure that all carrier screws are fastened before riding； Please note that the maximum load of the carrier is 25 kg, cargo weight shall not exceed 25 kg； Please do not replace or modify the carrier； ...
-
Page 6: Riding The E-Bike
Riding the E-Bike Note: If the battery is not used for 4 hours or longer, it will automatically go into sleep mode. Press the power button on the battery for five seconds Press 2 sec. The handlebar display goes through a self-check routine, where all LEDs flash. -
Page 7: Product Characteristics
Product characteristics Display Battery Motor Product specification Operating temperature range during discharge -15°C to 60°C Operating temperature range during charge 0°C to 45°C -20°C to 60°C Storage temperature (battery) Humidity (storage) up to 80% Charging voltage 100V to 240VAC approx. 5 hours Charging time Battery type Lithium ion battery... -
Page 8: Display
Display ASSIST MODE BUTTON HIGH POWER ON/ OFF (press & hold for 2 seconds) BATTERY STATUS For WALK assistance press and hold the button Assistance will stop as soon as you release the button、 Battery Power Light Battery release key ON/OFF switch Important! Your bike is supplied with three battery lock keys;... -
Page 9: Battery Charger
If the E-Bike not in use, remove the battery and store it at a temperature between 0°C and 40°C in a dry environment. Do not store the battery with low capacity for a longer period. For storage, the battery should have a capacity of at least 40%. And charge once every 3 months. -
Page 10: Battery Led Indicators
WARNING Do not subject the battery or the charger to physical shocks, e.g., by dropping. Rinse in the event of accidental contact with water. If fluid gets in your eyes, seek medical advice. Fluid that leaks from the battery pack may cause skin irritation or burns. -
Page 11: Battery Fault Indication
Approx. LED 1 ~ LED 4 ON : 76% ~ 100% 5 hours Battery fault indication Error Condition Catalog How to do Cannot turn Power ON/OFF switch Battery pack needs returned battery (these malfunction manufacturer for repairing. LEDs have one-by-one running flash) Battery pack voltage Check battery pack output voltage. -
Page 12: Battery Capacity Remaining Indication
Turn off the power Battery pack voltage too Check battery pack output voltage. If its output during riding voltage is lower than 20V, please charge the battery. Over current protection Remove battery pack from its frame and check motor controller is broken or not. Battery capacity remaining indication If you press the ‘SOC’... -
Page 13: Fitting The Battery
Fitting the Battery The battery must latch on with an audible click Removing the battery STEP ONE STEP TWO Unlock with the key & slide out the battery Assistance levels and speed... -
Page 14: Range
15.5 12.5 Miles per hour Range Factors which affect the range The above figures are based on a speed of 20 km/h on a level road at 15°C–20°C. The range is influenced by many factors: Type, condition and air ... -
Page 15: Removing The Front Wheel (To Repair A Puncture)
Removing the front wheel (to repair a puncture) Take off the two cable ties holding of the wire harness and unplug the two parts of the motor connector. Release the two ‘arms’ of the front V brake by pulling on the front brake cable ‘noodle’... - Page 16 Remove the rubber caps from both front wheel nuts & loosen the nuts (19 mm spanner). You may need to remove the nuts to release the wheel. Having repaired puncture, refit the front wheel. Take care to ensure the motor cable is pointing directly downwards to align the anti-rotation toothed washers on the wheel axle with the dropout slots.
-
Page 17: Ec Declaration Of Conformity
Represented in the EU by:- Halfords Plc, Redditch, B98 0DE. A copy of the Technical file for this equipment is available from:- the EU address above. Description of Equipment Halfords Apollo Metis 250 W Front Motor Drive System, 8.7Ah Li-Ion Battery & Battery Charger... -
Page 18: Halfords E-Bike Specific Warranty Conditions
Place and Date: Redditch UK Feb 2019 Halfords e-bike specific warranty conditions Your Apollo Metis e-bike is guaranteed against manufacturing defects arising from faulty workmanship or materials for 2 years from the original date of sale. Providing that the cycle: ... -
Page 19: Battery Pack Specific Warranty Conditions
Battery pack specific warranty conditions The battery pack is guaranteed over the warranty period to provide a minimum of 500 charging cycles and to hold at least 60% of its nominal battery capacity. This is dependent upon the correct use, regular re-charging, correct preparation for storage and storage (as detailed in the EVERGRAND Owner’s Manual).
