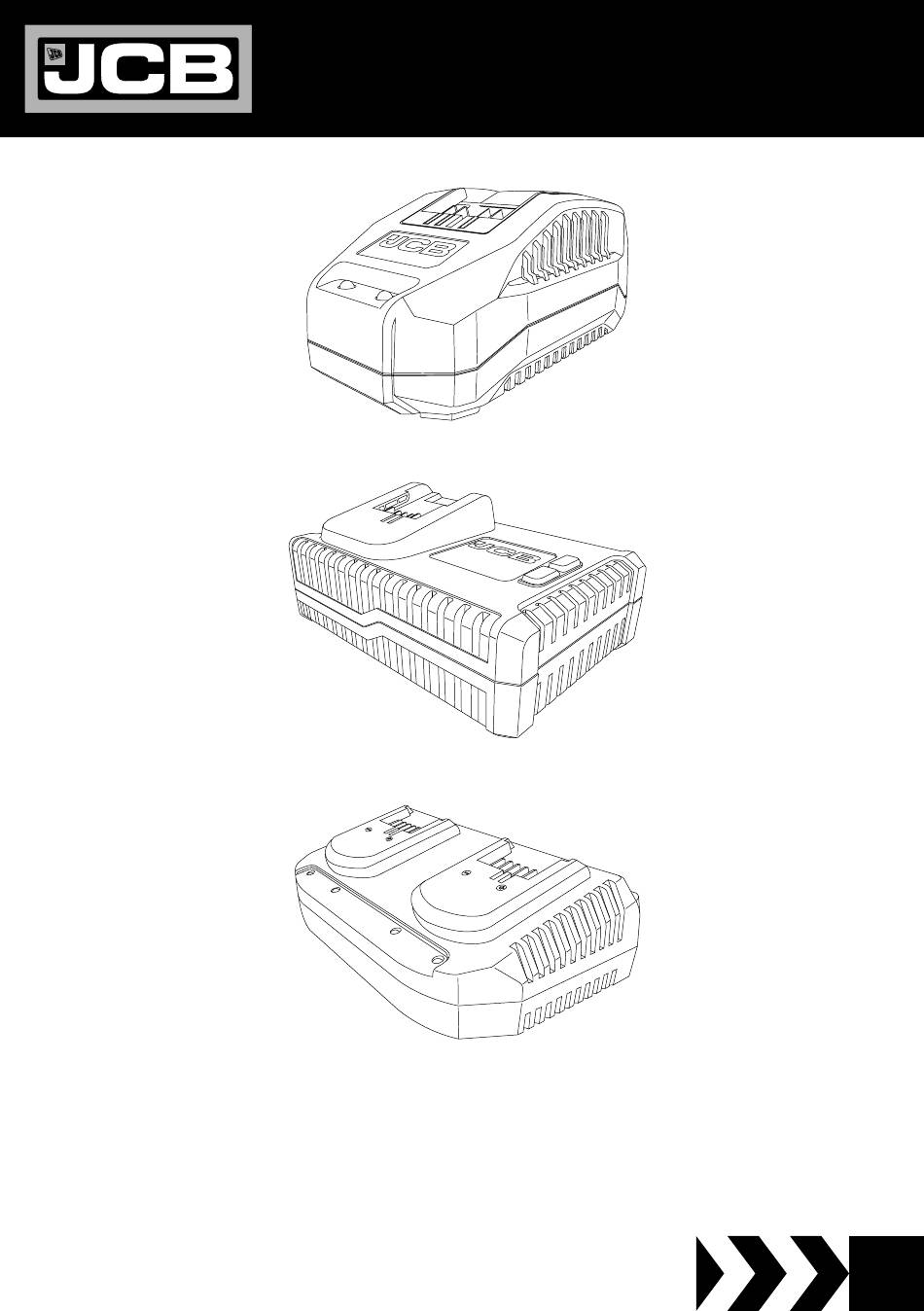

- Page 1 POWER TOOL INSTRUCTION & USER MANUAL JCB-20VFC JCB-20VSFC JCB-20DC JCB-20BC Original Instructions IM-20BC-EN Iss: 11/2019...
- Page 2 California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. The month and year of manufacture can be found within the product serial number e.g. MMYYPPPAXXXXX. Where production month (MM) and production year (YY) are included. JCB-20BC Instruction & User Manual...
-
Page 3: Table Of Contents
Contents CHARGER SAFETY COMPONENT LIST CHARGER TECHNICAL DATA LITHIUM ION BATTERY TECHNICAL DATA OPERATING INSTRUCTIONS Intended Use Maintenance Transport and Storage GENERAL CERTIFICATE OF CONFORMITY JCB-20BC Instruction & User Manual... -
Page 4: Charger Safety
8 years and above and persons with reduced physical, To reduce risk of injury, only charge sensory or mental capabilities or JCB rechargable batteries. The lack of experience and knowledge charger and battery packs are specifically if they have been given supervision designed to work together. -
Page 5: Component List
COMPONENT LIST INDICATOR LED CHARGER JCB-20VFC JCB-20VSFC JCB-20DC CHARGER TECHNICAL DATA Charger Code Input Data Output Data JCB-20VFC AC 120 V, 50-60Hz, 70W 14.4 -20V d.c. 2.4A JCB-20VSFC AC 120 V, 50-60Hz, 105W 14.4 -20V d.c. 4.0A JCB-20DC AC 100-240 V, 50-60Hz, 200W 20.5V d.c. -
Page 6: Lithium Ion Battery Technical Data
Intended Use Charging The Battery These chargers are intended for use only with WARNING! compatible JCB 20V power tools and lithium- ion battery packs. After charging for the first time, ensure the battery is completely discharged before The charger must not be modified or used for placing on charge again. -
Page 7: Maintenance
Removing the battery from the original packaging, or in a compatible JCB power tool power tool storage insert. Press the battery release button and remove Store the battery charger in a dry, frost-free, the battery from the tool. -
Page 8: General Certificate Of Conformity
IEC 61000-3-2:2014 IEC 61000-3-3:2013 IDENTIFICATION DETAILS OF IMPORTE DOMESTIC MANUFACTURER CERTIFYING PRODUCT COMPLIANCE: Name: JCB Tools (Yellow and Black Tools Limited) Address: 55 Romsey Industrial Estate Romsey, SO51 0HR Tel no: +44 1794 834250 CONTACT INFORMATION OF INDIVIDUAL MAINTAINING RECORDS OF TEST RESULTS: Name: Tim Burgoyne, QA Technical Manager &...
