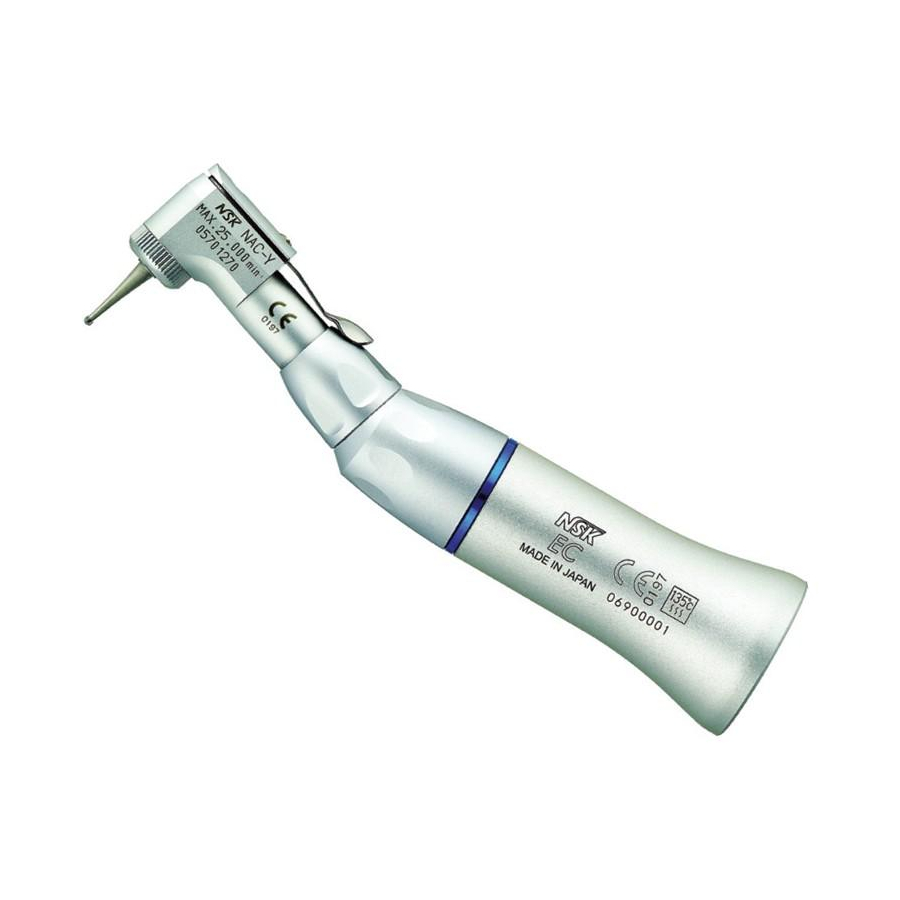

- Page 1 SM-C0028_E SERVICE MANUAL EX series Handpieces EC-30 / E4R / E10R / E16R / E20RI / E64R etc - 1 -...
-
Page 2: Tools Required
Notice The photograph in the manual is a different product. But the design is only different. Please advance it according to the following procedure. 1. TOOLS REQUIRED Emery Cloth Stick etc T-2（Pliers） - 2 -... -
Page 3: Disassembly Procedure
2. DISASSEMBLY PROCEDURE Caution Disassemble on a tray to prevent losing parts. In case of EC-30 2-1 Removal of Sheath Protect the Sheath and the Elbow Ass’y with Emery Cloth, turn counterclockwise with T-2 to remove the Sheath. Elbow Ass’y Sheath Drive Shaft Ass’y - 3 -... - Page 4 In case of E4R / E10R / E16R / E20RI / E64R etc 2-2 Removal of the Rear Joint Protect the Sheath and the Rear Joint with Emery Cloth, turn counterclockwise with T-2 to remove the Sheath. 2-3 Removal of the Dog Clutch Shaft Ass’y 2-3 Removal of the Reduction Gear Ass’y Push the the Reduction Gear Ass’y with Stick etc.
-
Page 5: Reassembly Procedure
3. REASSEMBLY PROCEDURE Reverse the procedure for disassembly. - 5 -...
