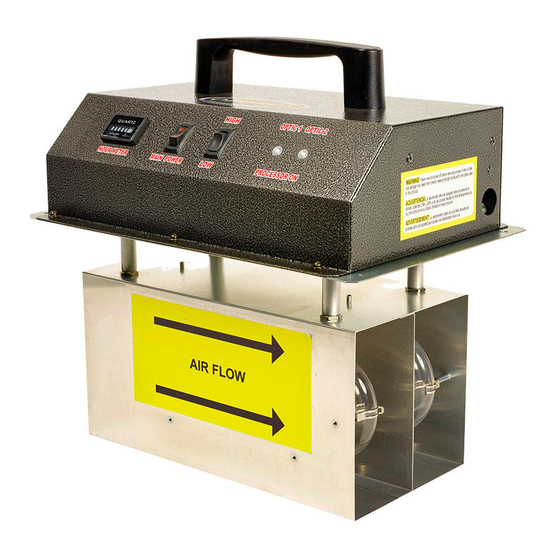

- Page 1 Owners Manual Distributed By Bio-Shine dba. OdoroxAir Odorox® IDU™ - Induct Unit 190 Summerhill Road | Spotswood NJ 08884 | (732) 25 251-9506 ext. 211 odoroxair@bio-shine.com | www.OdoroxAir.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Table of Contents SAFETY INFORMATION ................................. 1 PACKAGE CONTENTS ...................................4 INSTALLATION INSTRUCTIONS ............................... 5 OPERATING GUIDELINES ................................10 CARE INSTRUCTIONS ...................................11 OPTIC REPLACEMENT INSTRUCTIONS ..........................12 TROUBLESHOOTING GUIDE ..............................13 SPECIFICATIONS, REPLACEMENT PARTS AND LIMITED WARRANTY ..............14 LIMITED USE END-USER LICENSE AGREEMENT ......................17... -
Page 3: Safety Information
The inside of the unit contains no user serviceable parts. All servicing should be performed by authorized personnel only. • NEVER use detergents, gasoline, furniture polish, paint thinner or other household solvents to clean any part of the generator. Odorox ®... - Page 4 Safe Handling and Disposing of Mercury Mercury is used in the IDU™ device in order to generate the plasma needed to produce UV-C radiation. This is similar to the use of mercury in many types of commercial, fluorescent light fixtures. As long as the glass or quartz outer bulb is intact, mercury is contained within the fixture and poses no health hazard.
- Page 5 Close the trash bag and take it outdoors. Carefully remove the shoes and or clothing from the trash bag and air them out thoroughly outdoors for 24 to 48 hours. After the outdoor Odorox ®...
-
Page 6: Package Contents
PACKAGE CONTENTS Package Contents 1) One Odorox® IDU™ Hydroxyl Generator Unit 2) One IDU02MD13A Duct Reinforcement Plate, Outside 3) One IDU02MD14A Duct Reinforcement Plate, Inside 4) One 108” GSK-XX-311 Gasket, Rubber & Foam, Adhesive, 3/16” THK, 1/2” W, Gray 5) One Owner’s Manual... -
Page 7: Installation Instructions
Location The preferred installation location for the Odorox® IDU™ unit is in the return duct as the air will be treated before the filter and HVAC coil. If it is not possible to install in the return duct, it may be installed in the supply duct. If a humidifier is present, the IDU should be installed in the air stream before the humidifier. - Page 8 INSTALLATION INSTRUCTIONS Owner’s Manual...
- Page 9 INSTALLATION INSTRUCTIONS Odorox ®...
- Page 10 Check with the equipment manufacturer. STEP 10: Remove the power entry access cover on the IDU™ unit. Install connector for the power feed in the 7/8 inch hole. Connect cable/wire as per code and make connections to identified wires for ground, neutral, and line (see electrical schematic).
- Page 11 INSTALLATION INSTRUCTIONS NOTE: The IDU™ unit must be hardwired into the HVAC system. Connect to the HVAC EAC terminals or to the blower control. A current sensing relay or pressure switch may be necessary. Check with the equipment manufacturer. Example of Control Circuit for IDU™...
-
Page 12: Operating Guidelines
The IDU™ series comes in three models, based on the volume of the treatment space (floor area and ceiling height), the air exchange rate (air changes per hour), and the amount of air that is recirculated through the system relative to the introduction of fresh air. -
Page 13: Care Instructions
SYSTEM CASE CLEANING Exterior The exterior of the Odorox® product can be cleaned with mild dishwashing detergent and a clean cloth, and then rinsed with clean water. DO NOT use any all-purpose cleaners with harsh detergents or abrasives, as these may damage the decals and the exterior finish. -
Page 14: Optic Replacement Instructions
Instructions Warning: DISCONNECT the unit from the electrical power source before performing any maintenance or cleaning on the IDU™ Unit. Caution: Optics contain Mercury. Read and follow the Safety Information on pages 2 and 3 of this manual when handling the optics in the IDU™... -
Page 15: Troubleshooting Guide
Contact local distributor for service. Contact local distributor for Rated life of optic has been met. replacement optic service. Optic not functioning Contact local distributor for Optic has been damaged. replacement optic service. Internal component failure. Contact local distributor for service. Odorox ®... -
Page 16: Specifications, Replacement Parts And Limited Warranty
17.50lbs [7.94kg] Replacement Parts For replacement parts, warranty service, or any questions regarding the operation and maintenance of your Odorox® product, please contact your local Odorox® distributor. To find a distributor in your area, please visit: www.pyureco.com/contact www.odorox.com/contact EAN number... - Page 17 PLEASE KEEP THIS PART FOR YOUR RECORDS Serial #: Model #: Date of Purchase: Vendor Name: The PYURE Company 2055 High Ridge Road Boynton Beach, FL 33426 (561) 735-3701 www.pyureco.com Complete below and reverse side. Tear along perforation and mail to The PYURE Company within 60 days of purchase. You may also visit www.pyureco.com and register your warranty on-line.
- Page 18 The PYURE Company (“PYURE”) warrants that the product set forth below will be free from defects in materials and workmanship for the period of two (2) years from the date of original purchase under the following terms and conditions: To obtain service under this warranty, send or deliver this product within the warranty period together with the warranty certificate to any PYURE regional office or PYURE authorized warranty service center.
-
Page 19: Limited Use End-User License Agreement
Company retains all title, copyrights, and other intellectual property rights in the Licensed PYURE Software and any copies thereof. You may use a copy of the Licensed PYURE Software with any Odorox® product for which you have accepted the terms of this EULA. - Page 20 LIMITED USE END-USER LICENSE AGREEMENT OR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, LOSS OF SAVINGS, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THE LICENSED PYURE SOFTWARE PRODUCT, OR FOR PROVISION OF OR FAILURE TO PROVIDE SUPPORT SERVICES, EVEN IF THE PYURE COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
- Page 21 Need Support? Copyright 2020, The PYURE Company ODOROX® and IDU Powered by PYURE Technology are trademarks of Contact our support team The PYURE Company, Boynton Beach, FL 33426 USA 190 Summerhill Road | Spotswood NJ 08884 | (732) 25 251-9506 ext. 211...
