Summary of Contents for Balboa VS501Z
- Page 1 O O PERATION PERATION MANUAL MANUAL Due to our continuous improvement programs, all models, operation, and/or specifications are subject to change without prior notice. RLS201103 En.A...
- Page 2 Y o u r s p a c o n t r o l s y s t e m m o d e l : Y o u r s p a c o n t r o l s y s t e m m o d e l : VS/GS5 01 01 Z Z VS/GS5...
- Page 3 E l e c t r i c a l I n s t a l l a t i o n E l e c t r i c a l I n s t a l l a t i o n R e q u i r e m e n t s R e q u i r e m e n t s It is the responsibility of the spa owner to ensure that a qualified and licensed...
- Page 4 Circuit breaker selection and wiring requirements (Tab0): Voltage Amp. Phase(s) Breaker Size Wire Size /Frequency (Amp./RCD) 220V~240V, 50/60Hz 1x20A 3 x 4.0 mm 220V~240V, 50/60Hz 16 A 1x30A 3 x 6.0 mm 220V~240V, 50/60Hz 1x60A 3 x 10.0 mm 220V~240V, 50/60Hz 1x60A 3 x 10.0 mm 220V~240V, 50/60Hz...
- Page 5 not use aluminous wire. Do not use aluminous wire. (3) The power supply must have a suitable residual current device (RCD). This could be used as the shut-off switch, which must be installed in plain view of the spa. This electrical service must be readily accessible to the spa owner, but must not be within 5 feet (1.5m) of the spa.
- Page 6 3. Run a flexible non-metallic conduit from the power source to the spa, through the hole in the left or right front corner and into the electrical control box. 4. After pulling all lead wires through the non-metallic conduit, strip 10mm of insulation off one end of each lead wires.
- Page 7 compliance with the National Electric Code (NEC) and all local codes. 7. Close the control box cover and secure with screws. 8. Electrical connection is now complete. Page 6...
- Page 8 NOTE: This wiring diagram is meant as a guide only and not as instructions on how to wire the RCD. Different brands of RCD may be wired differently. The RCD must be wired by a qualified and licensed electrician. E l e c t r i c a l S e r v i c e C S e r v i c e C o n f i g u r a t i o n o n f i g u r a t i o n E l e c t r i c a l...
- Page 9 NOTE: Original wiring diagram is attached to the back of the control box cover. GL8000 system: For 1 x 16 Amp Service: DIP Switch A2, A3 and A4 must be OFF. For 1 x 32 Amp Service: DIP Switch A2, A3 and A4 can be ON. Dual Service (2 x 16 Amp) 5 Wires (2 Lines + 2 Neutrals + 1 Protective Earth) Protective Earth wire (Green/Yellow) must be connected to system ground terminal as...
- Page 10 NOTE: Original wiring diagram is attached to the back of the control box cover. VS/GS5xxZ system: DIP Switch A10 must be OFF VS/GS5xxZ system: GL8000 system : DIP Switch A2, A3 and A4 can be ON. 3-Phase Service (3 x 16 Amp or 3 x 32 Amp) 5 Wires (3 Lines + 1 Neutral + 1 Protective Earth) Protective Earth wire (Green/Yellow) must be connected to system ground terminal as marked.
- Page 11 To an optional fuse-protected expansion board. NOTE: Original wiring diagram is attached to the back of the control box cover. VS/GS5xxZ system: DIP Switch A10 must be OFF VS/GS5xxZ system: GL8000 system: DIP Switch A2, A3 and A4 can be ON. DIP Switch A11 must be OFF.
- Page 12 VL Panel for VS/GS5xxDZ Series ML Panel for GL Series Initial Start-up When your spa is first actuated, it will go into Priming mode (after displaying some configuration information). The Priming mode will last for less than 5 minutes and then the spa will begin to heat the spa and maintain the water temperature in the Standard mode.
- Page 13 (GL8000 system only): Press “Jets 1” while in Economy mode puts the spa in Standard-In-Economy mode, Which operates the same as Standard Mode, then reverts to Economy Mode automatically after 1 hour. Both the “STANDARD” and “ECONOMY” icons display in this mode.
- Page 14 during filtration. For 24 hour circulation systems, the circ pump and the ozone generator (if installed) run 24 hours. In hot environments, the circ pump may turn off for 30 minute periods, except during filter cycles. For non-24 hour circulation systems, the circ pump and ozone generator (if installed) run during filtration ( and may also run automatically at other times).
- Page 15 Press "Jets1" button reset the filter start time. exit Press “Mode/Prog” to see programming mode. “SET STOP FILTER 1” and adjust as done above. Same process as to “SET START FILTER 2” “SET STOP FILTER 2” Jets/Jets1/Jets2/Jets3/Jets4 (If equipped) Press the button once to turn the water pump on. Press the button a second time to turn the water pump off.
- Page 16 Time When time hasn’t been programmed, the “TIME” icon flashes. To set the time, press ”Time” then “Mode/Prog”. Use the “Warm” and “Cool” buttons to adjust time. Option Press the "Option" button once to turn the option equipment on or off. Such as Blower.
- Page 17 When a pump or blower is turn on by a button press, a clean-up cycle begins 30 minutes after the pump or blower is turned off or times out. The pump and the ozone generator will run for one to four hours. (You can change this setting) T r o u b l e s h o o t i n g T r o u b l e s h o o t i n g Should you experience and problem whatsoever, please do not hesitate to contact...
- Page 18 spa does not reset, shut off the power to the spa and call your dealer service organization. "Overheat" - The spa has shut ENTER TEMP down. One of the sensors has WATER. Remove the spa detected that the spa water is cover and allow water to cool.
- Page 19 normally. HEATER Possible inadequate water, If water level is normal, make MAY BE poor flow, or air bubbles in sure all pumps have been detected in the heater. Spa is primed. Press any button to WILL shut down for 15 minutes. reset.
- Page 20 CONFIG Configuration error. Contact your dealer or service ERROR cannot start up organization. GFCI Spa could not trip GFCI Contact your dealer or service FAILURE organization. Continued operation may be unsafe. Page 19...
Need help?
Do you have a question about the VS501Z and is the answer not in the manual?
Questions and answers

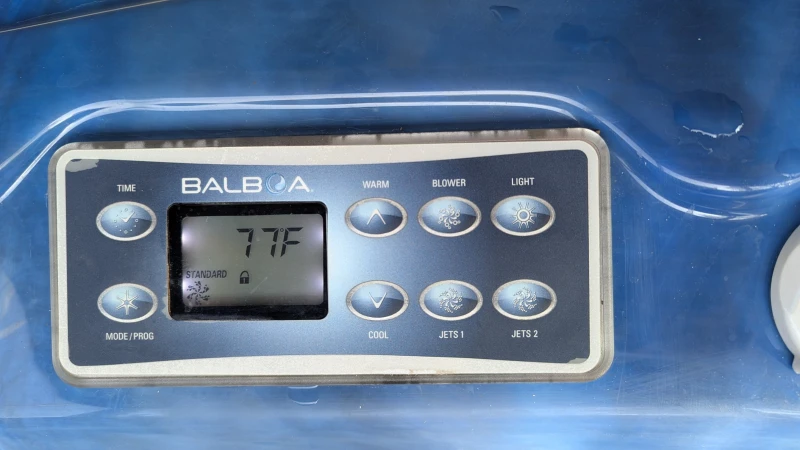

I somehow Locked my control panel. How do you unlock it?
Where does the control panel plug in
The Balboa VS501Z control panel plugs into the Main Panel terminal J1.
This answer is automatically generated
@Mr. Anderson i can't locate the terminal j
