Assembly Manual
Lakemont Shuffleboard 7pc Dining set
Model Number: GC-31025-7pc
Customer Assistance (spare/replacement parts):
Service Number: 1-888-691-2824 or
Service Email address: customerservice@coronadocasuals.com
Warning: Do not play in windy weather
Two or more audlts required assembly
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lakemont Shuffleboard GC-31025-7pc and is the answer not in the manual?

Questions and answers

Related Manuals for Member's Mark Lakemont Shuffleboard GC-31025-7pc

Summary of Contents for Member's Mark Lakemont Shuffleboard GC-31025-7pc

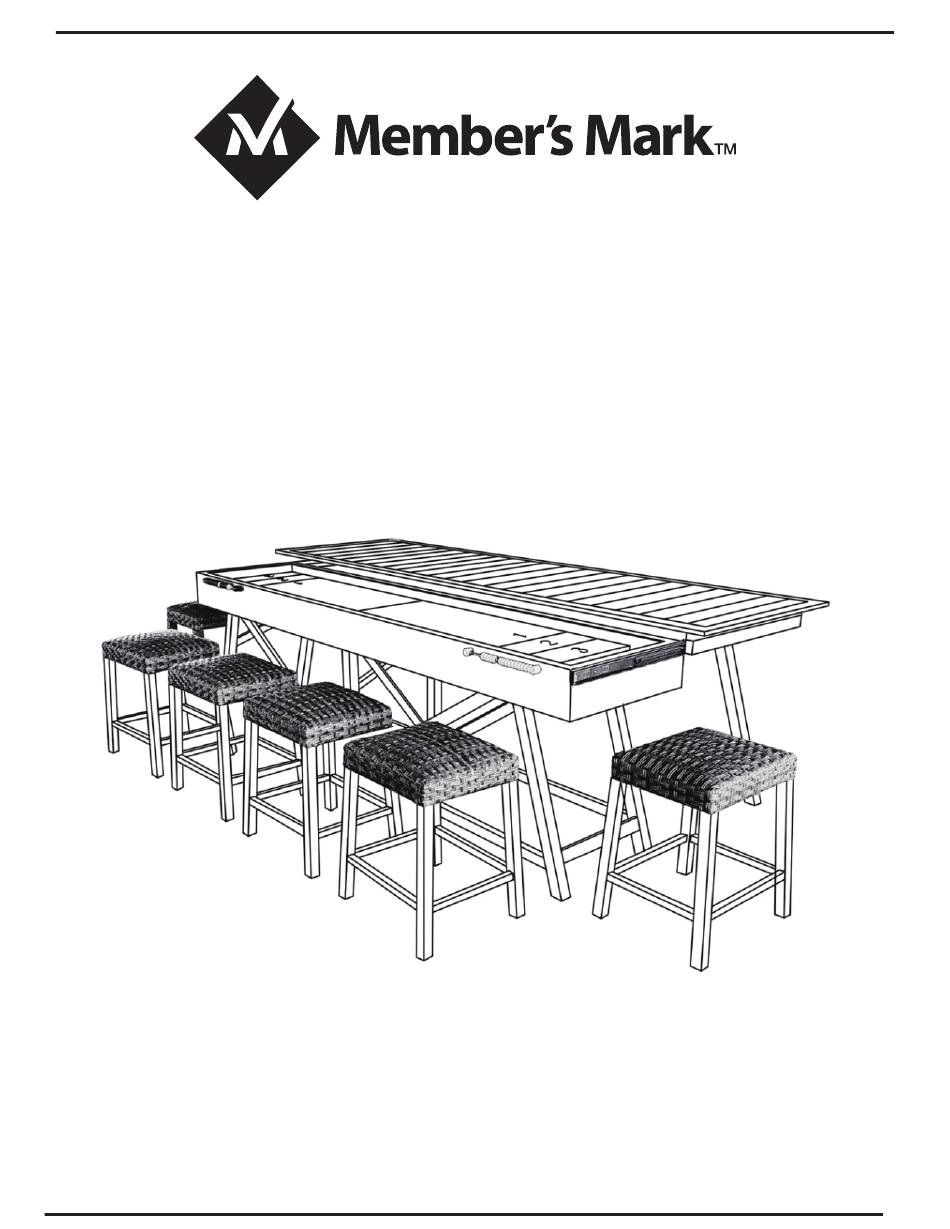

  • Page 1 Assembly Manual Lakemont Shuffleboard 7pc Dining set Model Number: GC-31025-7pc Customer Assistance (spare/replacement parts): Service Number: 1-888-691-2824 or Service Email address: customerservice@coronadocasuals.com Warning: Do not play in windy weather Two or more audlts required assembly THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
  • Page 2 Important Safety Information Please read all instructions carefully before assembling this furniture. For your safety, assembly by two or more adults is strongly recommended. Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. Hardware may loosen overtime.
  • Page 3 Shuffle board table Components Q..Bag for shuffleboard parts..1 A..Shuffle board table top..1 R..Triangle..1 B..Shuffle boad table leg..2 S..Bowling Pin..10 C..Table leg panel-Upper..3 T..Bowling Ball..1 D..Table leg panel-Under..2 U..Bag for Bowling set..1 E..Dining table top..1 V..Furniture cover..1 F..Dining table leg..1 W..S-Hook..1 L..Black puck..4 X..
  • Page 4 Hardware Allen/Hex Bolt Allen/Hex Bolt Allen/Hex Bolt M6x20mm M6x30mm M6x70mm Qty: 26 Qty: 8 Qty: 16 M6 Washer Allen Wrench Flat Head Bolt Qty: 50 Qty: 2 4x40mm Qty: 4 Screwdriver Qty: 1 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
  • Page 5 Step 1 Allen/Hex Head Bolt Allen/Hex Head Bolt M6 Washer M6x30mm M6x70mm Qty: 10 Qty: 4 Qty: 6 M6 Allen Wrench Qty: 1 Carefully place shuffleboard table top (A) upside down a soft, flat and non-abrasive surface. Attach the table legs(B) to table top (A) with bolts(H&I) and M6 Washer(J) by using M6 Allen Wrench(K).
  • Page 6 Step 2 Allen/Hex Head Bolt M6 Washer Allen/Hex Head Bolt M6x70mm Qty: 20 M6x20mm Qty: 6 Qty: 14 M6 Allen Wrench Qty: 1 Attach the Upper table leg panels(C) to shuffleboard table legs (B) with bolts(G&I) and M6 Washer(J) by using M6 Allen Wrench(K). Attach the Under table leg panels(D) to shuffleboard table legs (B) with bolts(G) and M6 Washer(J) by using M6 Allen Wrench(K).
  • Page 7 Step 3 Allen/Hex Head Bolt Allen/Hex Head Bolt M6 Washer M6x30mm M6x20mm Qty: 16 Qty: 4 Qty: 12 M6 Allen Wrench Qty: 1 Carefully place dining table top (E) upside down a soft, flat and non-abrasive surface. Attach the dining table leg(F) to dining table top (E) with bolts(G&H) and M6 Washer(J) by using M6 Allen Wrench(K).
  • Page 8 Step 4 IMPORTANT Carefully turn the shuffleboard table over. Insert the Left Sliding Rail (AA) into left chute. Color Coded Insert the Right Sliding Rail (BB) into right chute. Color Coded Both mating rails & chutes for AA-AA and BB-BB must be on the same side of the table and shuffleboard for correct installation.
  • Page 9 Step 5 Allen/Hex Head Bolt M6 Washer Allen Wrench M6x70mm Qty: 4 Qty: 1 Qty: 4 Carefully turn the dining table top over. Attach the dining table top to shuffleboard table with bolts(I) and M6 Washer(J) by using M6 Allen Wrench(K). Tighten all the bolts with M6 Allen Wrench(K).
  • Page 10 Step 6 Flat Head Bolt Screwdriver 4x40mm Qty: 1 Qty: 4 Attach the Scorers (X) to shuffleboard table with Flat Head Bolts(Y) by using Screwdriver(Z). Tighten all the bolts with Screwdriver(Z). Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
  • Page 11 Step 7 The shuffleboard table is ready for your enjoyment. If the stools and table is uneven, you can adjust the feet to make it even. Place shuffleborad accessorices included 4pcs black puck(L), 4pcs white puck(M), 1pc Shuffleboard Wax (N), 1pc Brush and 1pc Gradienter on Shuffleboard parts bag (Q).
  • Page 12 Furniture Cover For maximum protection, use Heavy Duty Furniture Cover (V). Fasten adjustable cord lock to secure the cover from wind and snug fit. Warranty The game play is suitable for people over 14 years old and DO NOT play in windy days. Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
  • Page 13 GAME RULES Shuffleboard game play Sprinkle included playfield Wax(N) on the surface. This will allow the weights/pucks to glide smoothly across the surface. Players alternate sliding each of their 4 weights across the board (L&M). The goal is to get your weight to stop as close to the end of the board in the highest scoring zone, without falling off into the alley.
  • Page 14 Bowling game play A game of American ten pins consists of ten frames. A player delivers two balls in each of the first nine frames unless a strike is scored. In the tenth frame, a player delivers three balls only if a strike or spare is scored.
