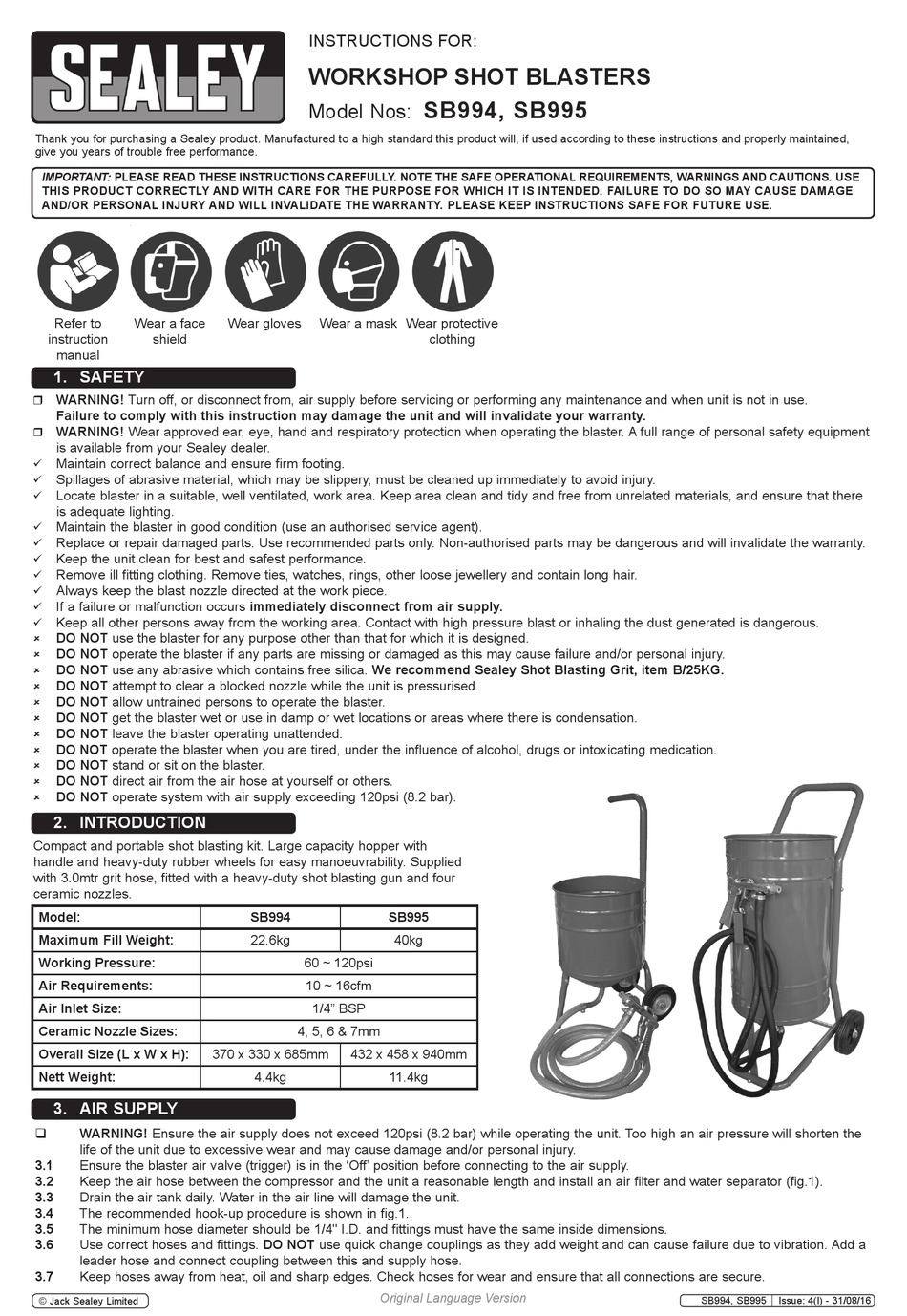

Sealey SB994 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly maintained,
give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS. USE
THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE
AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear a face
instruction shield
manual
1. SAFETY
WARNING! Turn off, or disconnect from, air supply before servicing or performing any maintenance and when unit is not in use.
r
Failure to comply with this instruction may damage the unit and will invalidate your warranty.
WARNING! Wear approved ear, eye, hand and respiratory protection when operating the blaster. A full range of personal safety equipment
r
is available from your Sealey dealer.
Maintain correct balance and ensure firm footing.
ü
Spillages of abrasive material, which may be slippery, must be cleaned up immediately to avoid injury.
ü
Locate blaster in a suitable, well ventilated, work area. Keep area clean and tidy and free from unrelated materials, and ensure that there
ü
is adequate lighting.
Maintain the blaster in good condition (use an authorised service agent).
ü
Replace or repair damaged parts. Use recommended parts only. Non-authorised parts may be dangerous and will invalidate the warranty.
ü
Keep the unit clean for best and safest performance.
ü
Remove ill fitting clothing. Remove ties, watches, rings, other loose jewellery and contain long hair.
ü
Always keep the blast nozzle directed at the work piece.
ü
If a failure or malfunction occurs immediately disconnect from air supply.
ü
Keep all other persons away from the working area. Contact with high pressure blast or inhaling the dust generated is dangerous.
ü
DO NOT use the blaster for any purpose other than that for which it is designed.
û
DO NOT operate the blaster if any parts are missing or damaged as this may cause failure and/or personal injury.
û
DO NOT use any abrasive which contains free silica. We recommend Sealey Shot Blasting Grit, item B/25KG.
û
DO NOT attempt to clear a blocked nozzle while the unit is pressurised.
û
DO NOT allow untrained persons to operate the blaster.
û
DO NOT get the blaster wet or use in damp or wet locations or areas where there is condensation.
û
DO NOT leave the blaster operating unattended.
û
DO NOT operate the blaster when you are tired, under the influence of alcohol, drugs or intoxicating medication.
û
DO NOT stand or sit on the blaster.
û
DO NOT direct air from the air hose at yourself or others.
û
DO NOT operate system with air supply exceeding 120psi (8.2 bar).
û
2. INTRODUCTION
Compact and portable shot blasting kit. Large capacity hopper with
handle and heavy-duty rubber wheels for easy manoeuvrability. Supplied
with 3.0mtr grit hose, fitted with a heavy-duty shot blasting gun and four
ceramic nozzles.
Model:
Maximum Fill Weight:
Working Pressure:
Air Requirements:
Air Inlet Size:
Ceramic Nozzle Sizes:
Overall Size (L x W x H):
Nett Weight:
3. AIR SUPPLY
WARNING! Ensure the air supply does not exceed 120psi (8.2 bar) while operating the unit. Too high an air pressure will shorten the

life of the unit due to excessive wear and may cause damage and/or personal injury.
3.1 Ensure the blaster air valve (trigger) is in the 'Off' position before connecting to the air supply.
3.2
Keep the air hose between the compressor and the unit a reasonable length and install an air filter and water separator (fig.1).
3.3 Drain the air tank daily. Water in the air line will damage the unit.
3.4 The recommended hook-up procedure is shown in fig.1.
3.5
The minimum hose diameter should be 1/4" I.D. and fittings must have the same inside dimensions.
3.6 Use correct hoses and fittings. DO NOT use quick change couplings as they add weight and can cause failure due to vibration. Add a
leader hose and connect coupling between this and supply hose.
3.7 Keep hoses away from heat, oil and sharp edges. Check hoses for wear and ensure that all connections are secure.
© Jack Sealey Limited
INSTRUCTIONS FOR:
WORKSHOP SHOT BLASTERS
Model Nos:
Wear gloves Wear a mask Wear protective
SB994
22.6kg
60 ~ 120psi
10 ~ 16cfm
1/4" BSP
4, 5, 6 & 7mm
370 x 330 x 685mm 432 x 458 x 940mm
4.4kg
Original Language Version
SB994, SB995
clothing
SB995
40kg
11.4kg
SB994, SB995 Issue: 4(I) - 31/08/16
