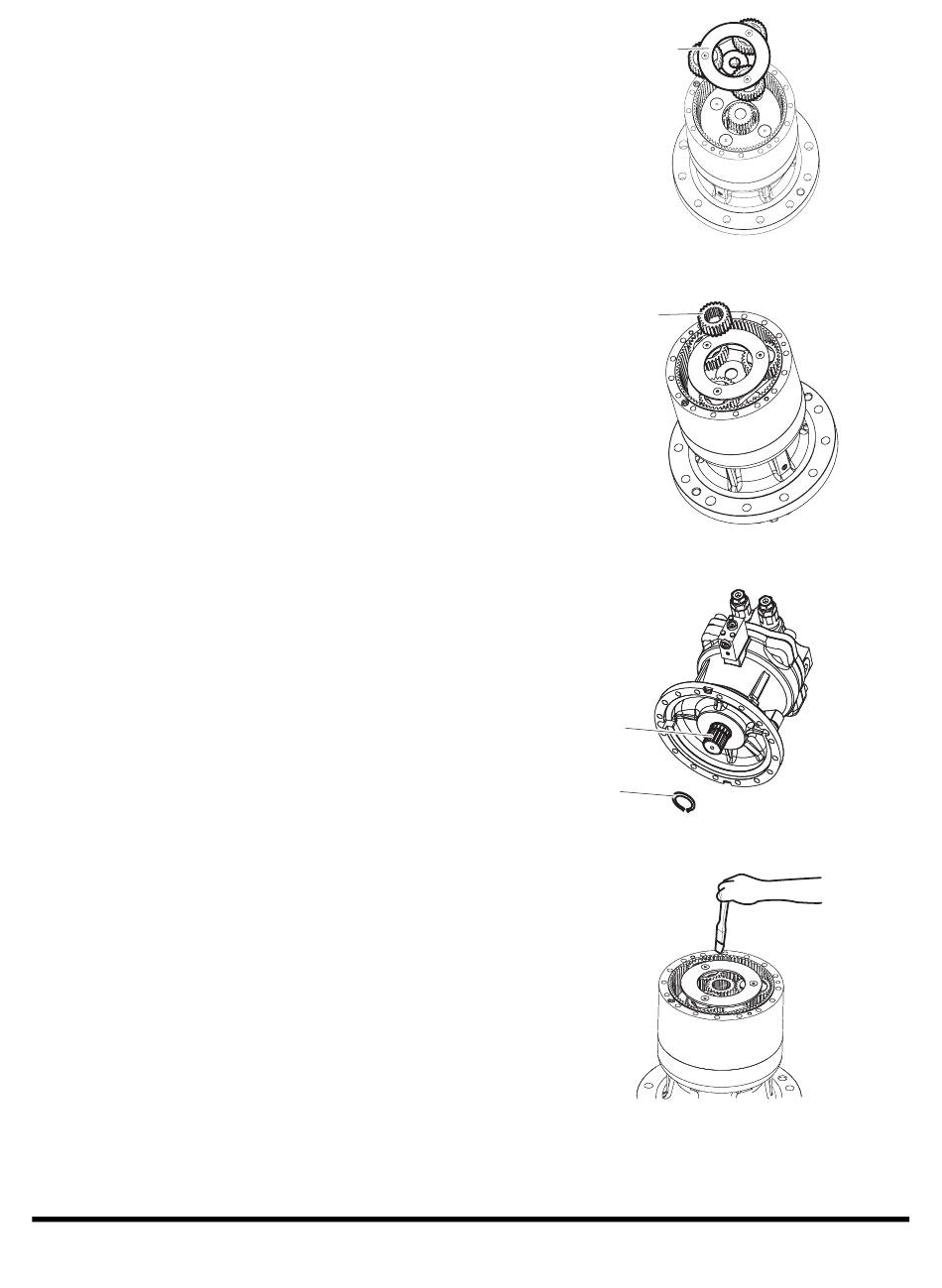

18. Install the carrier No.1 subassembly. Lift the carrier No.1
subassembly and turn it clockwise or counterclockwise
gently for it to engage with the spline of the No.2 sun gear
(702) and the ring gear (801).
19. Install No. 1 sun gear (602) in No. 1 carrier.
20. Use a hoist to lift the prepared motor, wipe out the
assembly, and install the retaining ring (214) on the shaft
(201).
21. Apply sealant evenly to ring gear assembly of motor.
Swing Device
Page 46
No. 1 Carrier
sub-assembly
Figure 81
602
Figure 82
201
214
Figure 83
Figure 84
FG022431
FG022473
FG022474
FG022475
SP002498
