Sealey DH01.V3 Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear safety
instructions footwear
1. SAFETY
Only use the drum truck on firm, level, unobstructed surfaces which are capable of supporting the truck, drum and its contents.
9
Ensure you have a clear pathway to your destination.
9
DO NOT overload the drum truck - maximum capacity is 250kg.
8
DO NOT allow others to ride on the drum truck.
8
DO NOT use on tarmacadam. The drum truck must only be used on a concrete surface.
8
Replace or repair damaged parts. Use only genuine parts. Non-genuine parts may be dangerous and will invalidate the warranty.
9
Use a qualified person to lubricate and maintain the truck. DO NOT use brake fluid to top up hydraulic unit. Use Sealey hydraulic oil only.
9
WARNING! Failure to comply with these instructions may result in loss of load, damage to drum truck or other property and/or personal injury.
‰
2. INTRODUCTION
Less manual effort required as hydraulic ram clamps drum, then raises it off the ground for simple manoeuvring and relocation. Cradle is fitted
with two smooth rolling, heavy-duty wheels and one castor with brake. Suitable for 205ltr drums.
3. SPECIFICATION
Model No: . . . . . . . . . . . . . . . . . . . . . . . . . . DH01.V3
Lifting Height: . . . . . . . . . . . . . . . . . . . . . . . . . 335mm
Width: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 780mm
Drum Size: . . . . . . . . . . . . . . . . . . . . . . . . . . . . .205ltr
Maximum Capacity: . . . . . . . . . . . . . . . . . . . . . 250kg
Nett Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45kg

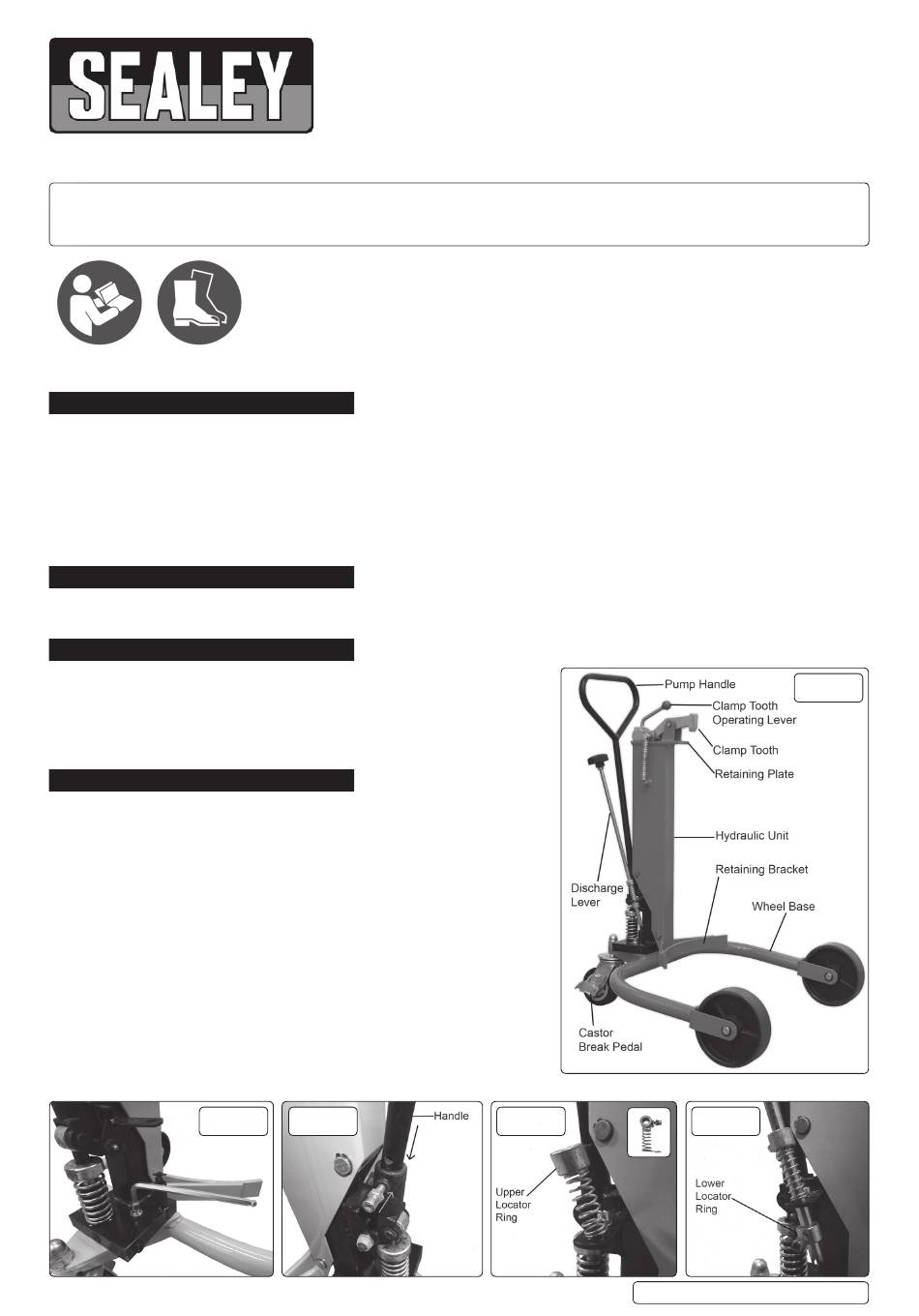

4. ASSEMBLY
4.1. Place the hydraulic unit on the wheel base and attach using the bolts supplied,
as shown in (figs.1&2).
4.2. Insert handle into pump seat and line up the holes, attach with nut supplied (fig.3).
4.3.
Attach recoil spring and upper locator ring to plate, as shown in (fig.4).
4.4. Insert discharge lever, through recoil spring, (fig.5), slide lower locator ring over
lever, from below.
4.5. Lower locator ring should sit just under the plate (fig.9).
4.6. Fit slotted end of lever, over hydraulic release valve, as shown in (fig.6).
IMPORTANT! Ensure there is sufficient gap between lower locator ring and
plate, preventing lever from sliding up off hydraulic valve, yet still allowing
discharge lever to rotate fully. (fig.9).
4.7. Turn the top locator ring, anti-clockwise, (fig.7) putting pressure on the return
spring, then tighten screw to hold in place (fig.8). Discharge lever should turn
fully, lowering the hydraulic ram. When released, lever should return to original
position.
NOTE: If hydraulic ram fails to lower, undo the lower locator ring (fig.5) and
slide down a tiny bit, tighten nut, then re-try.
fig.2
© Jack Sealey Limited
HYDRAULIC DRUM TRUCK 205LTR
DH01.V3
MODEL NO:
fig.3
Original Language Version
fig.4
DH01.V3 | Issue 1 08/01/2019
fig.1
fig.5
