Sealey DBG5010 Quick Start Manual

Thank you for purchasing a Sealey product. manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREfULLy. NOTE THE SAfE OPERATIONAL REQUIREmENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLy AND WITH CARE fOR THE PURPOSE fOR WHICH IT IS INTENDED. fAILURE TO DO SO mAy CAUSE DAmAGE AND/OR PERSONAL INJURy AND WILL
INVALIDATE THE WARRANTy. KEEP THESE INSTRUCTIONS SAfE fOR fUTURE USE.
Refer to
instructions
1. SAfETy
WARNING! Ensure Health and Safety, local authority and general workshop practice regulations are adhered to when using

tools and equipment.
DO NOT use the dial bore gauge if damaged.

DO NOT drop.

This is a precision instrument, always return gauge components to the internally lined storage case.

Maintain the gauge in good and clean condition for best and safest performance.

Keep the work area clean, uncluttered and ensure there is adequate lighting.

Ensure the work area floor is not slippery; wear non slip shoes.

Components to be measured and the dial bore gauge to be stored at room temperature (21°C).

2. INTRODUCTION

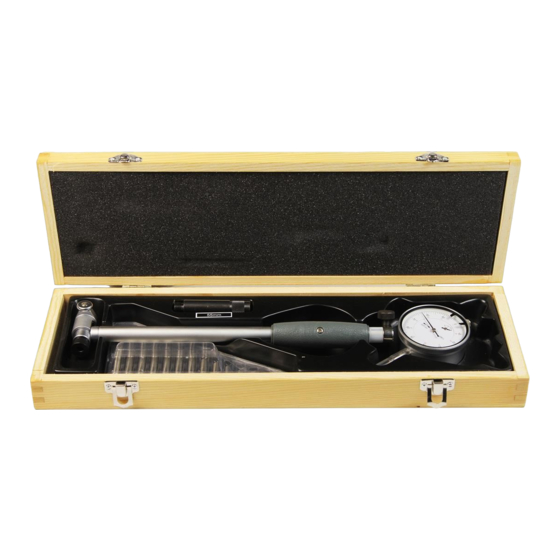

Precision mechanism with Ø55mm dial and locking rotating bezel, offering an accurate method of measuring a bore or detecting a taper or
ovality. Will indicate the deviation from set size by up to 5mm with an accuracy of 0.01mm. Probe body, dial indicator, anvils and spacer rings
are also included. Supplied in wooden storage case.
3. SPECIfICATION
model No: ............................................................................DBG5010
Range: ................................................................................50-160mm
Maximum deviation Measurement with Stem: .............................1mm
Maximum deviation Measurement, Gauge: .................................5mm
Weight: ...................................................................................... 1.12kg
4. CONTENTS
3 2
© Jack Sealey limited
DIAL BORE GAUGE 50 - 160mm
ModEl No:
5
Original Language Version
DBG5010
1
4
Item Description Qty
1 dial gauge
indicator 1
2 Probe
body 1
3 Clamp
screw 1
4 distance
piece (50mm) 1
5 Anvils and
spacer rings 1-set
dBG5010 Issue: 2 (H,F) - 04/04/19
