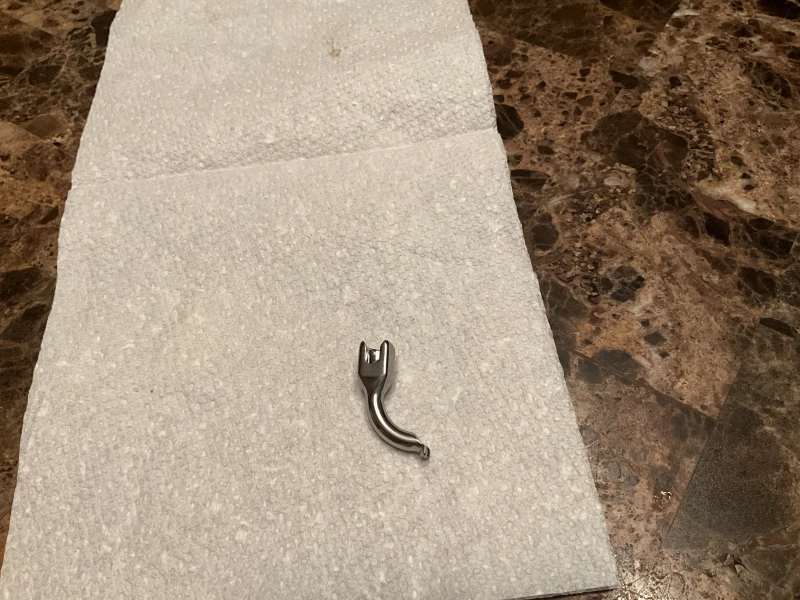

Hi I **** looking for a micro stippling foot for my Pfaff Power Quilter 1600 and can't find one. What other feet are available for this machine. Please

User image 67c8fac11f84d
0
1 comments:
Mr. Anderson
March 6, 2025

The Pfaff PowerQuilter 1600 comes with two metal presser feet: one is a complete ring, and the other has an opening for better visibility in tight areas. Optional accessory feet are also available for different quilting needs.

This answer is automatically generated

0

Related Manuals for Pfaff powerquilter 1600

Summary of Contents for Pfaff powerquilter 1600

  • Page 1 User’s Guide Stationary Machine...
  • Page 2 powerquilter™ 1600 User’s Guide © 2020 Singer Sourcing Limited LLC. All rights reserved. The information contained in this document is subject to change without notice. If you find any problems in the manual, please report them to us in writing. This document is not warranted to be error-free. Singer Sourcing Limited LLC assumes no responsibility or liability for any errors or inaccuracies that may appear in the informational content contained in this manual.

  • Page 4: Congratulations On Your Purchase

    With that in mind, we invite you to visit our website at www.pfaff.com to learn more about the art of quilting. Plus, you will find tips, tricks and inspiration on a variety of quilting topics including the basics of setting up your machine and loading a quilt.

  • Page 5: Table Of Contents

    Table of Contents Congratulations on Your Purchase! � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �1 What’s Included with Your Machine �...
  • Page 6 (D) Presets ................... . 25 (E) Basting Mode In Manual Operation .

  • Page 7: What's Included With Your Machine

    What’s Included With Your Machine • Bobbins (5) • 3/32 wrench • Bobbin case • 2 mm hex wrench • INSPIRA needles size 100/16 (pack of 10) • 2.5 mm hex wrench • Thread tray and thread mast • 3 mm hex wrench •...
  • Page 8 • Do not pull or push the machine across the fabric excessively while stitching. It may deflect the needle enough to cause it to break. • Use only needles designed for free motion quilting and recommended by PFAFF® for this machine. Other types of needles may break during normal quilting.
  • Page 9 • N'utilisez que les aiguilles conçues pour le quilting en piqué libre et recommandées par PFAFF® pour cette machine. D'autres types d'aiguilles risqueraient de se fracturer au cours d'un quilting normal.
  • Page 10 This machine is intended for household or commercial use. Disclaimer PFAFF® and its Retailers are in no way legally responsible or liable for damage to the powerquilter™ 1600 when used improperly or not in accordance with the guidelines stated in this manual or when used on machine quilting frames not recommended by PFAFF®.

  • Page 11: To Use The Machine Safely

    If the machine breaks down or needs adjustment, first check the troubleshooting chart at the end of this manual to inspect and adjust the machine yourself. For more product information and updates, visit our website at www.pfaff.com. The contents of this manual and product specifications are subject to change without prior notice.

  • Page 12: About Your Machine

    Velocite 10, Texaco 22 Disclaimer PFAFF® and its Retailers are in no way legally responsible or liable for damage to the powerquilter™ 1600 when used improperly or not in accordance with the guidelines stated in this manual or when used on machine-quilting tables not recommended by PFAFF®.

  • Page 13: Powerquilter™ 1600 Components

    powerquilter™ 1600 Components Front Side View Components Not Identified Because the powerquilter™ 1600 is upgradeable to a stand-up frame quilting system, there are components found on the machine that are not used for stationary machine quilting (such as threaded holes for handlebars). 1.
  • Page 14 Back Side View 12. Needle Bar 18. Presser Bar 13. Needle Bar Thread Guide 19. Front Threaded Display Mounting Holes 14. Needle 20. Back Casing/Frame 15. Ruler Foot 21. Color Touch-Screen Display Connector 16. Needle Plate 22. Threaded Horizontal Spool Pin Mounting Hole 17.
  • Page 15 Rear and Front Views Rear Front 23. On/Off Switch 26. Thread Mast 24. Power Cord Connector 27. Bobbin Assembly 25. Foot Pedal Connector 28. LED Light Ring 12 | ™ powerquilter 1600 Quilting Machine User’s Guide...

  • Page 16: Installation And Setup

    Installation and Setup Setting Up the Stationary Longarm Table The Stationary Longarm Table is designed to accommodate the powerquilter™ 1600 machine. It has legs that are height-adjustable and is heavy enough to provide stabilization for quilting at high speeds. See the instructions provided with the Stationary Longarm Table for table assembly. Placing the Machine in the Table 1.

  • Page 17: Installing The Foot Pedal

    Installing the Power Cord Check that the On/Off switch is turned off (the 0 setting). Plug the power cord into the top power outlet on the back of the machine. Do not plug the power cord into a power source at this time. Installing the Foot Pedal 1.

  • Page 18: Installing The Color Touch-Screen

    Installing the Color Touch-Screen The color touch-screen comes pre-installed on its mounting bracket.  NOTE: Confirm that the power is turned off before installing the color touch-screen. 1. Remove the two bolts from the bag in which they are packed. 2.

  • Page 19: Using Your Machine

    Using your Machine Needle/Thread Selection Guide Needle Size Threads 12 (80) Monofilament, 100 wt. Silk, 60 wt. poly, mylar 14 (90) Silk (100 wt) 60 wt., monofilament, glitter, some metallics 16 (100) 60 wt., 50 wt., 40 wt., monofilament, glitter, metallics 18 (110) 50 wt., 40 wt., 30 wt., metallic 21 (125)

  • Page 20: Threading The Machine

    Figure 11 Threading the Machine Figure 12 Note: See “HQ Quilting Machines Getting Started” DVD (included with your machine) for videos show- ing threading and other tips. These videos are also available on www.HandiQuilter.com. Avanté User Manual 1. Place a cone or spool of thread on the spool pin. If using a spool, make sure that any slits on the spool are against the base of the spool pin holder.
  • Page 21 3. Thread continues through thread guide C, and then down to the tension assembly.  NOTE: It is important that the thread is “flossed” up between the two tension discs. If the thread is not firmly in place between the two tension discs, the thread rests on the outside of the tension discs (without tension) and looping on fabric or thread nests may occur.

  • Page 22: Inserting (Or Changing) The Needle

    20 minutes of testing. It is possible that it could be damaged in shipping or as you remove the machine from the box. For these reasons, PFAFF® recommends that you replace the needle before beginning to quilt with your new machine.

  • Page 23: Bobbin Case And Bobbin Thread Tension Adjustments

    Bobbin Case and Bobbin Thread Tension Adjustments Inserting the Bobbin  NOTE: Turn off the power switch while inserting the bobbin case or anytime your hands are near the needle area. 1. Place the bobbin in the bobbin case so that the thread pulls off clockwise when viewing the open side.

  • Page 24: Drawing The Bobbin Thread To The Top Of The Quilt

    Drawing The Bobbin Thread to the Top of the Quilt 1. After threading the machine, plug it in and turn on the power. Place quilt sandwich under hopping foot. 2. While firmly holding the tail of the needle thread with the left hand, choose one of the following methods to cycle the needle through one full rotation to bring the bobbin thread to the top of the quilt.

  • Page 25: Easy To Set Tension Adjustment

    Easy to Set Tension Adjustment  IMPORTANT: Top thread tension should be adjusted only after the bobbin case foundation tension adjustment is made. Puckering, gathers and thread breakage occur when the top tension is too tight. Loops and thread nests occur on the back when the top thread tension is too loose.

  • Page 26: Maintenance

    Maintenance  NOTE: Turn off the machine and remove the power cord when performing maintenance on the machine. Cleaning and Lubricating the Machine Only use light sewing machine oil in the powerquilter™ 1600. Internal oiling is not necessary on the powerquilter™...

  • Page 27: Using The Touch-Screen Display

    Using the Touch-Screen Display The powerquilter™ 1600 has a color touch-screen display on the front of the machine. Setti ngs are changed using this display. Main Screen Manual Mode Bu� on Functi ons The Machine is in Manual Mode when the M is green.

  • Page 28: (D) Presets

    (D) Presets Save up to two preset speeds to quickly switch between speed preferences. For example, you may prefer a slower speed when using rulers and a faster speed when doing all- over meandering. Use the “+” and “–” butt ons to adjust the speed percentage and then press the Record butt on next to one of the preset values to store that speed as a preset.

  • Page 29: (G) Bobbin Thread Indicator

    (G) Bobbin Thread Indicator When using the Low-Bobbin Esti mator feature, The Bobbin Thread Indicator box shows how much bobbin thread remains on the bobbin. The value counts down unti l it gets to zero, at which ti me the low-bobbin alarm sounds an alert indicati ng it is ti me to put in a new bobbin.

  • Page 30: (I) Up/Down/Tieoff

    (I) Up/Down/TieOff The arrow butt ons can assist in creati ng ti eoff sti tches, basti ng, or needle-positi oning functi ons without the use of the foot pedal. Pressing and releasing the arrow butt on quickly will send the needle to the next needle stop positi on. If the needle is up, pressing the butt on will cause the needle to move to the down positi on.

  • Page 31: Precision

    (C) Precision If Precision mode is selected, the powerquilter™ 1600 will not start sti tching unti l fabric moves across the table. (D) Cruise If Cruise mode is selected, the machine will immediately begin sti tching at the speed (sti tches per minute) indicated in the box when the foot pedal is depressed or the play butt on is selected.

  • Page 32: Tools Menu

    (F) Diagnosti cs The Diagnosti cs butt on acti vates the screen where machine diagnosti c functi ons can be performed. Diagnosti c functi ons are generally only used when working with an authorized PFAFF® retailer to resolve issues. (G) Set Language The powerquilter™...

  • Page 33: Low Bobbin

    Low Bobbin The powerquilter™ 1600 includes a low bobbin alarm to esti mate how soon the bobbin thread will run out. This low bobbin capacity is based on an esti mate of how much of a parti cular thread can fi t on a bobbin, in combinati on with other quilti ng factors such as tension, sti tches per inch, and how much bobbin thread is used to pull up and ti e off when beginning and ending quilti ng.

  • Page 34: Timer And Stitch Count

    Timer and Sti tch Count Use the quilti ng ti mer to keep track of how much ti me is spent on a quilt. When beginning a new project, press the Reset butt on. Then press the Play butt on to begin recording quilti ng ti me.

  • Page 35: Lighting

    Lighti ng The brightness porti on of this screen has two butt ons and a sliding control. The LED Light Ring and light bar can be turned on or off with the switch butt on associated with the LED locati on. Use the slide bar to adjust the brightness of each light.

  • Page 36: Diagnostics Tests

    If you get a constant solid beep or no beep at all, this indicates a failed test and the machine should be inspected by a quali fied PFAFF® repair technician. Press the HOME butt on to return to the Main menu screen or the Tools butt on to return to the Diagnosti cs menu screen.

  • Page 37: Motion Sensors

    If you hear a constant beep or no beep at all for a full 360° rotati on of the hand wheel, this indicates a failed test and the machine should be inspected by a quali fied PFAFF® repair technician. 34 | ™...

  • Page 38: Tension Calibration

    Tension Calibrati on The Tension butt on on the Diagnosti cs menu resets the tension device. Only calibrate the tension device under the directi on of PFAFF® technical support. When calibrati ng the tension, do the following: 1. Remove the tension knob.

  • Page 39: Language

    Language Set Language 1. Touch the Tools icon in the toolbar. The Tools screen appears. 2. Press the fl ag icon to rotate through the language opti ons: English, French (Français), German (Deutsch), and Spanish (Español). 3. When the fl ag representi ng the language you want to use appears, press the Home butt on to return to the Main screen.

  • Page 40: System Information Screen

    The Lifeti me counter cannot be reset and should be used as an indicator to determine when general machine maintenance should be performed by an authorized PFAFF® Retailer. (B) The foot controller icon in the middle of the screen indicates whether the foot controller is att ached.

  • Page 41: Getting Started Quilting

    Getting Started Quilting Thread Requirements Be sure to choose high quality threads for your valuable heirloom quilts. Needle Requirements For general quilting, a size 16/100 needle will accom modate most threads and fabrics. Heavier threads, such as top stitch and some decora tive threads, require a larger needle such as 18/110 or 21/125. Heavier fabrics such as denim, canvas, or densely woven fabric may re quire a larger needle.

  • Page 42: Troubleshooting

    Troubleshooting You can correct many problems on your own. If you need additional help, contact your local, authorized powerquilter™ 1600 retailer. First check the following: 1. The AC power cord is properly connected and both power switches are turned on. 2.
  • Page 43 The needle is not positioned • Position the needle properly to the needle bar. Inspect the properly position of the needle to make sure the needle is at the 6 o’clock position. When you stand directly in front of the needle (facing the bobbin case side of the machine), you will see the entire needle eye directly facing you.
  • Page 44 Moving the quilt too fast • Synchronize quilt movement and needle speed to get your desired for needle speed selected stitch length. Elongated stitches are an indication of moving the (Manual mode) quilt too fast for the current speed. Tension is Poor Corrective Measure(s) Lint caught under the tension •...
  • Page 45 Sewing in one place too long will cause the thread to break. Improper needle/hook • Machine timing needs to be checked. Consult an authorized relationship PFAFF® technician. 42 | ™ powerquilter 1600 Quilting Machine User’s Guide...
  • Page 46 Consult a repair technician to polish any hard-to-reach or delicate areas, or if the burr is inside the throat. Wrong type of needle • Use only the needles recommended by PFAFF® (134, sizes 12 through 21). Other possible problems • Needle too close to hook, causing friction and possible collision of hook point and needle (causing broken thread).
