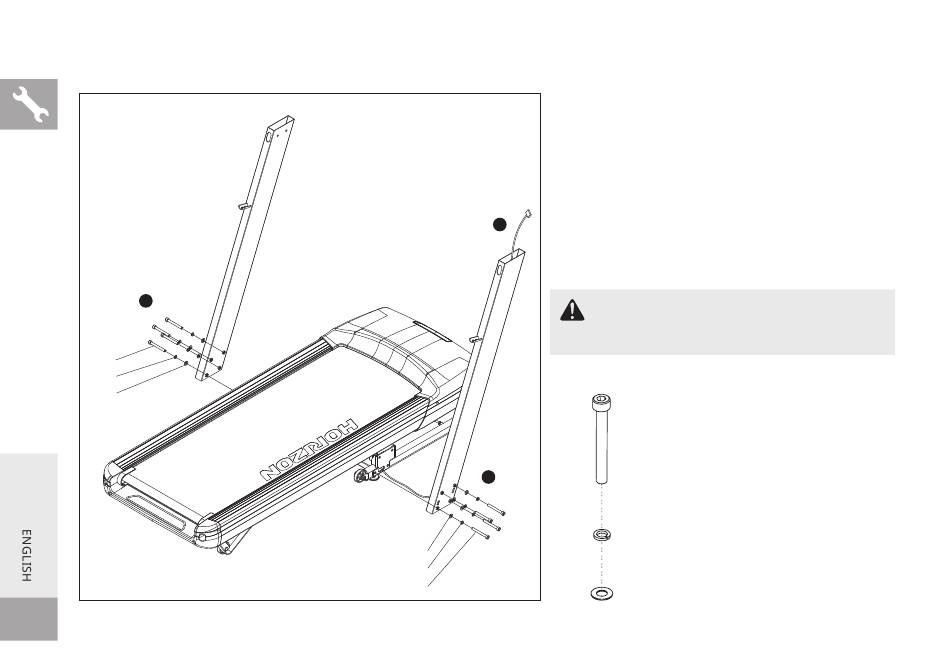

ASSEMBLY STEP 1
C
Z06x4
Z05x4
Z04x4
10
Open HARDWARE FOR STEP 1.
A
Insert the CONSOLE CONTROL CABLE from the
BASE FRAME through the CONSOLE MAST (RIGHT).
B
Align the CONSOLE MAST (RIGHT) to the BASE
FRAME, then screw by 4 x hardware assembly
(Z04+Z05+Z06).
A
C
Align the CONSOLE MAST (LEFT) to the BASE
FRAME, then screw by 4 x hardware assembly
(Z04+Z05+Z06).
DO NOT PINCH THE WIRE !!
B
Z04x4
Z05x4
Z06x4
ATTENTION
Z06
Z05
Z04
