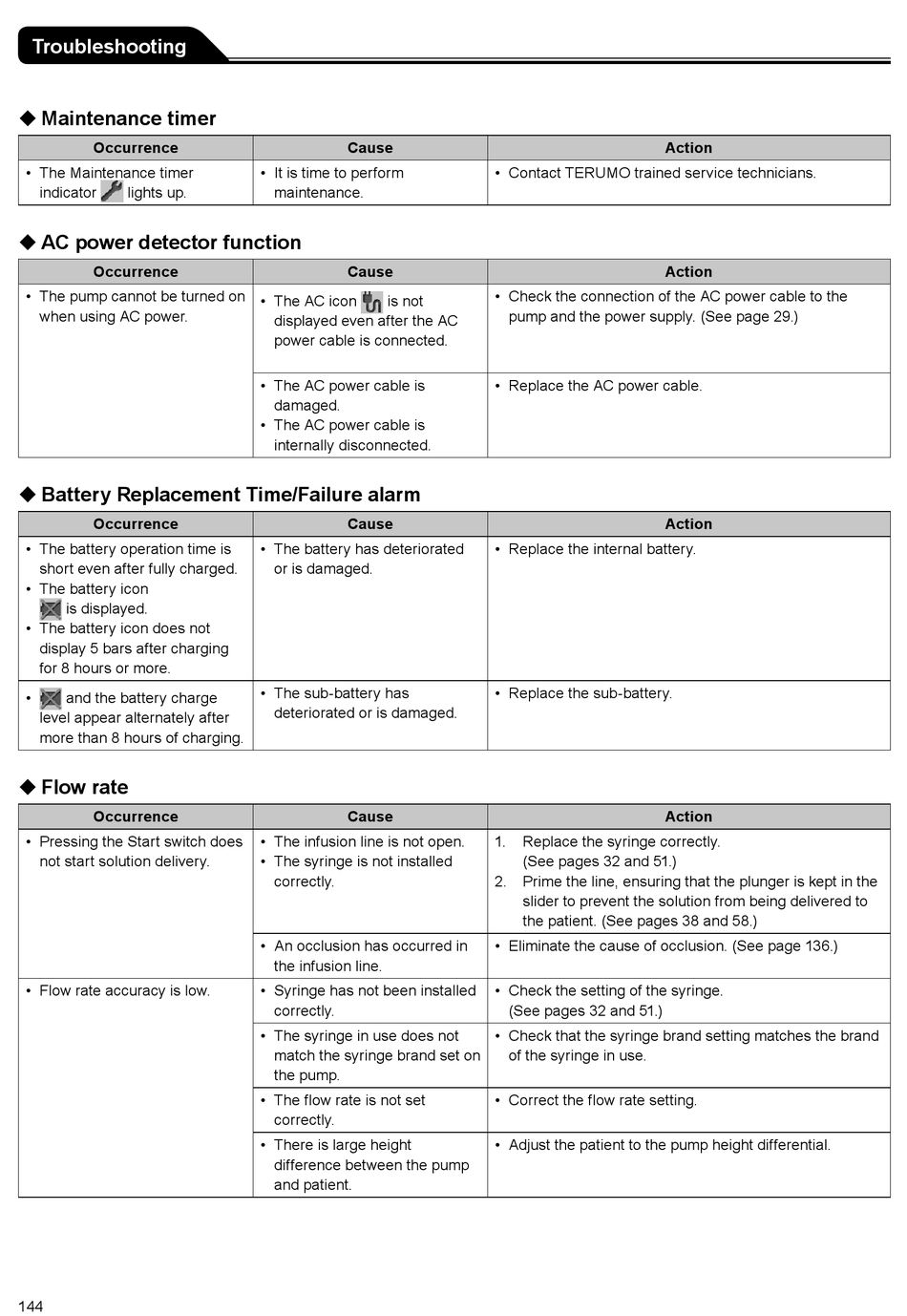

Troubleshooting
 Maintenance timer
Occurrence
• The Maintenance timer
indicator lights up.
 AC power detector function
Occurrence
• The pump cannot be turned on
when using AC power.
 Battery Replacement Time/Failure alarm
Occurrence
• The battery operation time is
short even after fully charged.
• The battery icon
is displayed.
• The battery icon does not
display 5 bars after charging
for 8 hours or more.
• and the battery charge
level appear alternately after
more than 8 hours of charging.
 Flow rate
Occurrence
• Pressing the Start switch does
not start solution delivery.
• Flow rate accuracy is low.
144
Cause
• It is time to perform
maintenance.
Cause
• The AC icon is not
displayed even after the AC
power cable is connected.
• The AC power cable is
damaged.
• The AC power cable is
internally disconnected.
Cause
• The battery has deteriorated
or is damaged.
• The sub-battery has
deteriorated or is damaged.
Cause
• The infusion line is not open.
• The syringe is not installed
correctly.
• An occlusion has occurred in
the infusion line.
• Syringe has not been installed
correctly.
• The syringe in use does not
match the syringe brand set on
the pump.
• The flow rate is not set
correctly.
• There is large height
difference between the pump
and patient.
Action
• Contact TERUMO trained service technicians.
Action
• Check the connection of the AC power cable to the
pump and the power supply. (See page 29.)
• Replace the AC power cable.
Action
• Replace the internal battery.
• Replace the sub-battery.
Action
1. Replace the syringe correctly.
(See pages 32 and 51.)
2. Prime the line, ensuring that the plunger is kept in the
slider to prevent the solution from being delivered to
the patient. (See pages 38 and 58.)
• Eliminate the cause of occlusion. (See page 136.)
• Check the setting of the syringe.
(See pages 32 and 51.)
• Check that the syringe brand setting matches the brand
of the syringe in use.
• Correct the flow rate setting.
• Adjust the patient to the pump height differential.
