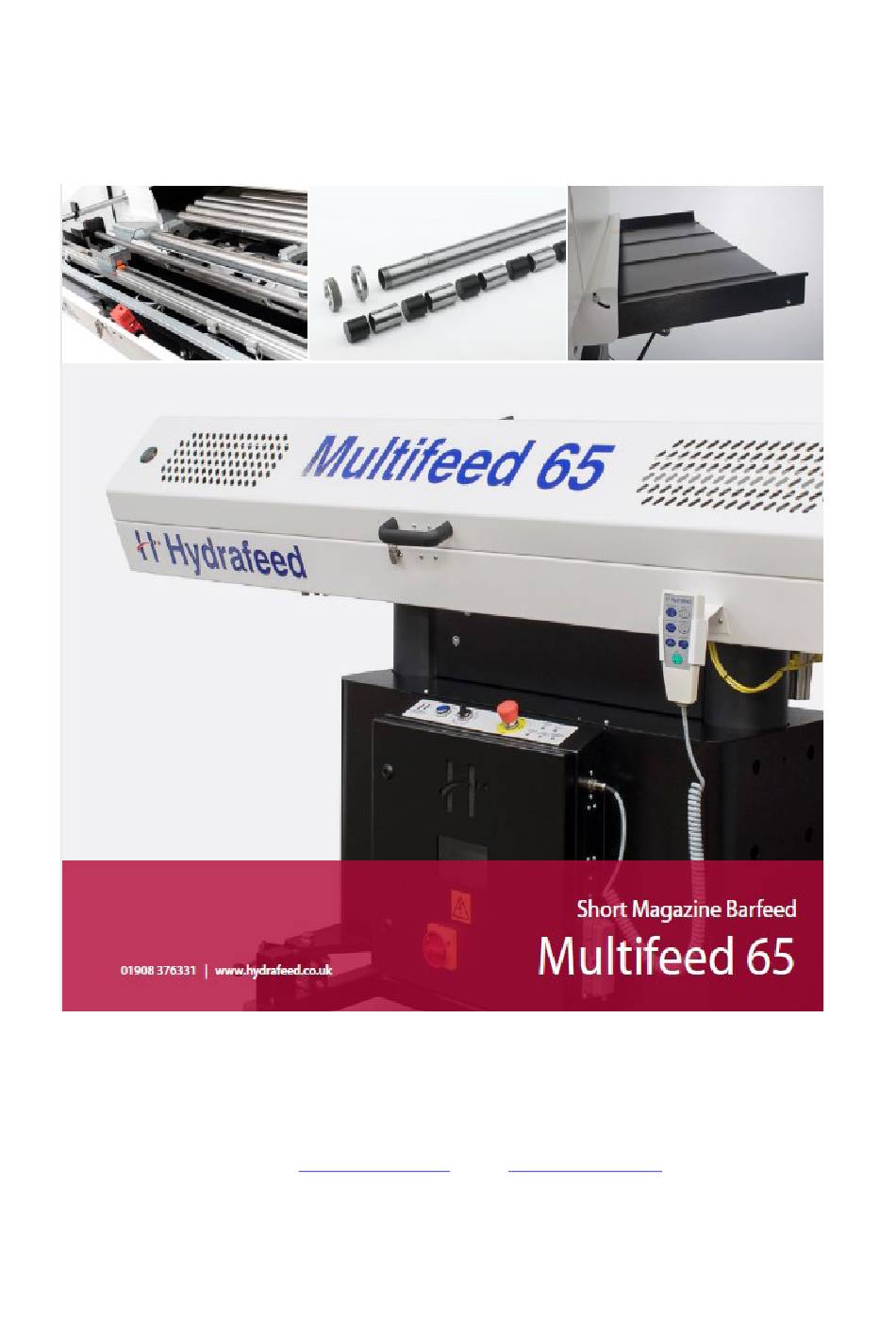

Hydrafeed Multifeed 65 Manual

Short magazine barfeed
Hide thumbs
Table of Contents

Advertisement

Quick Links

Manufactured By Hydrafeed Limited
Talgarth House, Bond Avenue, Mount Farm Industrial Estate,
Milton Keynes, MK1 1JD
Telephone: +44(0) 1908 376331 www.hydrafeed.co.uk
Website:
www.hydrafeed.co.uk
Email:
info@hydrafeed.co.uk
Note: all images may not represent exactly in manual as on your Barfeed
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Multifeed 65 and is the answer not in the manual?

Questions and answers

Related Manuals for Hydrafeed Multifeed 65

Summary of Contents for Hydrafeed Multifeed 65

  • Page 1 Manufactured By Hydrafeed Limited Talgarth House, Bond Avenue, Mount Farm Industrial Estate, Milton Keynes, MK1 1JD Telephone: +44(0) 1908 376331 www.hydrafeed.co.uk Website: www.hydrafeed.co.uk Email: info@hydrafeed.co.uk Note: all images may not represent exactly in manual as on your Barfeed...

  • Page 2: Table Of Contents

    CONTENTS Section 1 Safety Requirements………………………………………………....Section 2 Barfeed Installation……………………………………………………………. 3.0 Site Preparation………………………………………………………………………… 3.10 Delivery and Inspection of Barfeed…………………………………………………... 3.20 Positioning of Barfeed………………………………………………………………... 3.30 Alignment Procedure…………………………………………………………………. 3.40 Operation of Barfeed…………………………………………………………………. Section 3 Barfeed Mechanism 4.1 The Barfeed Master Spindle Reduction Liner system………………………………… 4.2 Fitting Master Spindle Reduction Liner with BSU…………………………………….
  • Page 3 Section 8 Electrical Control and Functionalities 9.1 Cabinet control functions………………………………………………………………. 9.2 Alarm signals and description………………………………………………………….. 9.3 List of alarm signal messages………………………………………………………….. 9.4 Retract control function………………………………………………………………... 9.5 Hand unit control function…………………………………………………………….. Section 9 Trouble Shooting 10.1 Common causes and solutions………………………………………………………... Section 10 Barfeed’s Parts Listings 11.1 Cover and Guard parts list…………………………………………………………….
  • Page 4 Wiring Looms and Specifications 15 Lathe to B/Feed Interface pin to pin specification……………………………………… 17 Optional Mains Power lead…………………………………………………………….. 18 Lathe to B/Feed Interface Lead………………………………………………………… 19 External Barfeed wiring loom…………………………………………………..……… External Electrical Schematic 20 Cabinet Door Isolator…………………………………………………………………… 21 Stand Socket Outlets……………………………………………………………………. 22 Cabinet Control Panel…………………………………………………………………..
  • Page 5 Be sure to follow instructions and alarms, which are generated, via the screen  If STRICT COMPLIANCE with the above safety procedures is not undertaken, Hydrafeed Limited cannot accept responsibility for any accident thus incurred. FOR YOUR OWN PROTECTION - WORK SAFELY...

  • Page 6: Site Preparation

    2. INSTALLATION When this instruction manual was printed, the information given was correct. However, since we are constantly improving the design of our Barfeed’s, it is possible that the illustrations and descriptions may vary from the Barfeed supplied. When supplied for installation within Europe, the Barfeed carries the CE mark of incorporation, and should be declared in conformity with the EC Directives after safe installation with the Lathe.

  • Page 7: Delivery And Inspection Of Barfeed

    3.4 Check that a suitable air supply (70psi 5bar) is available for connection to Barfeed. If the pressure is below 5bar the Barfeed will not respond, 5bar is to be a recognised pressure for the Barfeed to operate safely. Delivery and Inspection of Barfeed 3.10 The Barfeed should be removed from it’s packaging, exported Barfeed’s are supplied in a wooden transit box, in this case remove screws from around base, (usually about 16-off), and lift top section of box up and over the top of the Barfeed.
  • Page 8 Figure 30.3 Multifeed 3.24 Open the cover on the Barfeed and remove the black plastic transit spacers from the cross slide bars, then close the cover. 3.25 Connect air supply via filter bottle located at side of stand Note; Minimum air supply 70psi(5bar). 3.26 Check the transformer settings and the voltage output from the Lathe, if these are specified for correct interface proceed to stage 3.27, otherwise contact the Lathe agent for alterations.

  • Page 9: Alignment Procedure

    Alignment Procedure 3.30 Latch the smallest bore Push Rod bushing into the front support block that is positioned Lathe side of Barfeed. 3.31 Clamp the line-up bung that’s supplied into the collet/chuck. 3.32 Feed a 2mm (5/64”) cord through the orifice of the Pusher block, and then be sure that it’s tied behind the block using the aid of a knot or clamping device.
  • Page 10 OPERATION 3.40 You are able to manually operate the Barfeed’s basic functions through the screen. Loading Cams Cross Slide Insert Pusher Main Pusher This just simply allows the operator to manoeuvre the positions of the working functions for whatever reason. After set-up, the pushrod pushes the material forward as requested by the Lathe until the bar is fed to a Lathe stop.

  • Page 11: The Barfeed Master Spindle Reduction Liner System

    The Barfeed is supplied with the necessary master liner, five sets of bushings and one set of steel spacers to suit the CNC Lathe as standard. Extra sets of bushings can be supplied blank or bored from Hydrafeed Limited, or made ‘in house’ to the specifications in the drawings.
  • Page 12 The clearance between the O.D. of the bar and the remainder of the liner or liner bushings should be approximately 0.5 mm over the bar O.D. and the effective length of the support bushings should not be greater than 25mm, except with very small diameter bar, i.e.
  • Page 13 Figure 11...
  • Page 14 Figure 12...
  • Page 15 Figure 13 Figure 13...
  • Page 16 Figure 14...

  • Page 17: Height Adjustment Of The Support Channel

    4.4. HEIGHT ADJUSTMENT OF THE SUPPORT CHANNEL Ensure that Cross Slide and support channel are in the ‘out’ position. Place the material to be used on the support channel, and slide material forward by hand towards the lathe spindle. Unclamp the two locking handles indicated in figure Raise or lower the channel to the height at which the material can easily be inserted into the spindle with out much interference.
  • Page 18 Move the stops so that the material is against the stops in the position shown in figure 13. Then adjust the stops so that only one piece of material is lifted into the V-channel. Once this has been established be sure to tighten the stop screws securely. Figure 13 Adjustment stops Cam lever...

  • Page 19: Changing Or Removing The Push Rod

    4.6. CHANGING OR REMOVING THE PUSH ROD The mechanical Pusher latch is designed so that when the push rod is in line with the spindle the Push rod is latched to the main carriage therefore allowing insertion of material to be fed through the collet section. When the Insert Pusher is in line with the spindle the push rod will be detached from the carriage therefore allowing insertion of material to be loaded into the spindle section.

  • Page 20: Pusher Forward Movement Sensor

    5.1 PUSHER FORWARD MOVEMENT SENSOR Figure 20 This sensor detects the forward movement of the Main Pusher. This signal information is used to finish the M-Code signal (that is generated from the Lathe), when the Main Pusher has stopped moving, ie fed to Lathe stop, the Barfeed will then generate an M-Finish signal to the Lathe to cancel the M-Code so machining can continue.

  • Page 21: Location Of Cross Slide Sensors

    5.2 LOCATION OF CROSS SLIDE SENSORS Figure 21 Cross Slide Out Sensor Cross Slide In Sensor (X15 input) (X14 input) Cross Slide Out Sensor: this sensor is only activated when the Insert Pusher is aligned with the spindle centre line. Cross Slide In Sensor: this sensor is only activated when the Main Pusher is aligned with the spindle centre line.
  • Page 22 5.4 LOCATION OF GUARD SWITCH Figure 23 This switch comes in two parts, (switch and actuator) and they are separately mounted, the switch is fixed to the front apron of the Barfeed and the actuator is fixed to the guard hood. When the hood is closed the actuator locates in the switch and this will allow electrical operations in the Barfeed to be carried out.

  • Page 23: Location Of Material Sensor

    5.5 LOCATION OF MATERIAL SENSOR Figure 24 This sensor is capable of detecting the different types of materials that is used, the characteristics of this sensor is that there is a light beam that deflects from a reflector which is mounted opposite the sensor inside the front cover, so when the beam becomes broken a signal is generated to the control system.

  • Page 24: Location Of Cylinders Sensors

    Note; if the sensor alarm is to keep generating then contact us quoting the problem and the part n 5.6 LOCATION OF CYLINDER SENSORS Figure 25 Sensor 1 Sensor2 Sensor3 Sensor4 Sensor5 Pusher Home Mis-load Last Component Eject Remnant Pusher E.O.B Forward Picture of sensor may not be same as on machine.
  • Page 25 Sensor 3 Last Component (E.O.B): This sensor indicates when the last component has been fed out. To determine the position of this sensor, the length of component is to be measured or placed between these two sensors below, where the Ejected sensor is fixed (as explain below) and the E.O.B sensor is adjusted.

  • Page 26: Location Of Loader Cylinder

    Loader Cylinders Rear of Barfeed (below Magazine) Part n HYDRAFEED These Cylinders are located at the rear of the Barfeed below the Magazine, they are capable of lifting 80mm diameter x 1500mm in length solid brass. The valve that is located inside the stand (shown on page 24) at the rear can adjust the speed at which the bar is loaded.

  • Page 27: Location Of Cross Slide And Cam Adjustment Valves

    Cross Slide cylinder is located on the base plate below the extruded slide The valve that is located inside the stand (shown below) at the rear can adjust the speed at which the Slide traverses. 7.1 LOCATION OF CROSS SLIDE AND CAM ADJUSTMENT VALVES Figure 35 CROSS SLIDE VALVE Turning valves clockwise decreases the velocity of operation.

  • Page 28: Pusher Adjustment Valve

    7.2 PUSHER ADJUSTMENT VALVES Pusher forward adjustment: Loosen the nut and turning counter-clockwise will increase the airflow to the pusher forward direction. Note: very fine adjustment of the screw is needed for immediate response. Pusher Retract adjustment: By removing the Valve Cap there will be an adjustment screw; Turning counter-clockwise will increase the airflow to the pusher retract direction.

  • Page 29: Location Of Air Pressure Regulator

    7.4 LOCATION OF AIR PRESSURE REGULATOR Figure 39 Pressure Gauge Air Pressure Adjuster Air Bleeder Main Air Pressure Inlet This Regulator is located at the Left-hand side of the stand viewed from the front of Barfeed. This regulator monitors the air supply that’s fed to the Barfeed, the regulator will filter out any contamination or fluids that are entered into the air system and then collectively hold to the bottom of the filter so then the Air Bleeder will frequently discharge to atmosphere.
  • Page 30 7.5 PNEUMATIC SYSYTEM Pneumatic control circuit-standard specification SWING ASIDE FILTER REGULATOR 3/2 VALVE MAINS AIR SUPPLY. 50-100 psi MAINS AIR GAUGE S1. 1N 3/2 VALVE FLOW REGULATOR DOUBLE ACTING CYLINDER CROSS SLIDE S2. OUT 3/2 VALVE FLOW REGULATOR Optional LOW PRESSURE UNIT S3.
  • Page 31 8.1 INPUTS (X) shows the status of each PLC input FX1s PLC input specification. M-Code Lathe Interface Signal Manual/Auto switch Pusher Movement sensor Pusher Button (hand unit) Cross Slide Button (hand unit) Safety circuit Signal: b/f em.stop, m/c e-stop, guard hood, pressure sw. Material detection sensor M-Code-2 Lathe Interface Signal (optional)

  • Page 32: Cabinet Control Functions

    9.1 CABINET CONTROL FUNCTIONS Figure 40 BLUE REST LIGHT MUST BE OFF WHEN BARFEED IS IN USE 9.1.1 Auto indicator; when the manual/auto is selected to auto and the safety circuit is ready this indicator will illuminate and in turn generate an auto ready signal to the Lathe 9.1.2 Warning/Condition indicators;...
  • Page 33 9.1.6 Main Isolator; the Lathe supply’s the Barfeed’s power. This isolator will cut the power supply to the Barfeed, this switch gear is also for emergency isolation to the Barfeed. 9.1.7 Viewing window; this allows the operator to observe the plc panel that’s directly viewed behind the window.

  • Page 34: List Of Alarm Signal Messages

    9.2 ALARM SIGNALS ALARM DISCRIPTION Alarms remain active until the problem is cleared, the machine will not operate until the cause of the alarm is removed. The three LED’s which are mounted on top of the control cabinet indicate alarms and conditions. Conditions are indicated when LED’s illuminate (either ON or FLASH) independently.

  • Page 35: Retract Control Function

    9.4 RETRACT CONTROL FUNCTION 9.4.1 Pusher Back off: It is vital that the Main push rod is withdrawn from the rear of the bar on collet closed signal after feeding to the Lathes material stop. The back off distance has a factory set value off approximately 200mm, this can be adjusted by the Back- off Adjustor that’s located on the front panel of the CP unit inside the control cabinet, shown in the diagram below.

  • Page 36: Hand Unit Control Function

    9.5 HAND UNIT CONTROL FUNCTIONS 9.5.1 Main Pusher: This will drive the push rod forward in manual mode 9.5.2 Insert Pusher: This will drive the Insert Pusher forward in manual mode 9.5.3 Cross Slide: This will traverse the Cross slide in manual mode, ie align the centre of channel to centre of spindle or align the push rod with centre of spindle.
  • Page 37 9.5.6 Single Bar: This allows one cycle operation, this function can be selected anytime whilst in auto operation, so after completing the current bar the Barfeed will visually state that this operation has been completed and then abort auto. 9.5.7 Cam Control: When the Main pusher is aligned with centre of spindle this will load material from the Magazine to the channel in manual mode.

  • Page 38: Trouble Shooting

    10.1 TROUBLE SHOOTING Common causes and solutions for fault Diagnostics Problem; Category Cause of reaction Countermeasures; Action Not Referencing 1.Air pressure too low! Pressure 60psi and above. 2.EM.Stop not released on; Make application safe before Barfeed of Lathe! releasing EM.Stops 4.Man/Auto switch in Auto! Switch to manual mode.
  • Page 39 No M-Code Finish signal Pusher movement sensor not Check input X2 when pusher is releasing ie dropping! stationary once fed to Lathe’s turret stop. Possible movement device failure. Push rod NOT feeding forward 1.No collet open signal! Check Clamp collet/chuck to material. after reload input X17.
  • Page 40 MXCVE - Multifeed Covers Parts List Part No Rev Description MXCVE001 Extended Top Cover Weld Assembly MXCVE001FL Extended Top Cover Weld Assembly Front Loader MXCVE002 Extended Upper Gas Strut, Bracket Welded Assembly MXCVE003 Extended Pivot For Gas Strut MXCVE004 Extended Rear Infill Plate MXCVE005 Front Loading Rear Infill Plate...

  • Page 41: Feed Mechanism Parts List

    MXFM - Multifeed Feed Mechanism Parts List Part No Rev Description MXFM001 Mounting Block #3 MXFM002 MXFM003 Cam-Laser Cut (Sheet 1) MXFM003 Cam-Laser Cut (Sheet 2) MXFM004 Cam Boss MXFM005 Cam to Boss Assembly MXFM006 Sheet Metal Cam Bracket MXFM007 Cam Bracket Weld Assembly MXFM008 Stop Block Slide...
  • Page 42 MXEX - Multifeed Extrusions Parts List Part No Rev Description MXEX001 Sheet Metal Bottom 'Extrusion' 1/4 (OBSOLETE SEE MXEXE001) MXEX001 Sheet Metal Bottom 'Extrusion' 2/4 (OBSOLETE SEE MXEXE001) MXEX001 Sheet Metal Bottom 'Extrusion' 3/4 (OBSOLETE SEE MXEXE001) MXEX001 Sheet Metal Bottom 'Extrusion' 4/4 (OBSOLETE SEE MXEXE001) MXEX002 Sheet Metal 'Extrusion' Boss 4/4 MXEX003...

  • Page 43: Magazine Parts List

    MXME - Multifeed Magazine Parts List Part No Rev Description MXME001 One Piece Magazine MXME001FL Front Loading One Piece Magazine MXME003 Material Guide MXME005 Weld Assembly MXME005FL Front Loading Weld Assembly MXME006 Support Bracket MXME007 Guard End Plate MXME008 Guard Top Plate MXME009 Guard Weld Assembly MXME010...
  • Page 44 MXME066 Side Adjuster (Fence) MXME067 1400 Half Depth One Piece Magazine MXME068 1400 Half Depth One Piece Magazine Weld Assembly MXME069 1400 Material Stop MXME070 Half Depth Flat Bar Runner...

  • Page 45: Front View Of Pre-Built Barfeed

    12.1 FRONT VIEW OF PRE-BUILT BARFEED MXSC004 MFFM268 MXSC046 MFFM272A MXSC038 MXSC046 MFFM235 MFFM266 MFFM278 MFST113 MXSC045 MFST110 MXSC039 MXSC011 MXEX010 MXST226SM MXST233 MXST106/VAR MXST251...

  • Page 46: Rear View Of Pre-Built Barfeed

    12.2 REAR VIEW OF PRE-BUILT BARFEED MX-SC-013 MX-SC-014 MX-SC-015 MXSC019 MXFM005 MXFM005 MFFM282 MFFM326 MX-PR-001 MFFM325 MX-PR-002 MFFM214MC MFFM207 MXFM007...

  • Page 47: Complete Overview Of Magazine Assembly

    12.3 COMPLETE OVERVIEW OF MAGZINE ASSEMBLY MX-ME-041 MX-ME-046 MX-ME-010 MX-ME-060 MX-ME-055 MX-ME-042 MX-ME-058 MX-ME-063 MX-ME-039 MX-ME-031 MX-ME-016...
  • Page 48 ELECTRICAL DRAWINGS...
  • Page 77 OPTIONS: BAR SUPPORT UNIT – P78, 79 MULTI-STACKER – P80, 81, 82...
  • Page 78 The bar support unit should only be installed by a Hydrafeed engineer to align An interlock switch is utilized as detailed below. A breakdown of parts is also over page.
  • Page 80 Multi-Stacker The multi-stacker allows multiple bars to be layered relying on gravity to allow the next bar to follow through. The use of the multi-stacker must be by trained personnel. Each multi-stacker is built to suit the customers’ requirements, meaning that the depth and width may different dependent upon how many parts will fit on the magazine.
  • Page 83 - The main cylinder slide way must be free of greases and lubricants. Wipe clean only. Mulitfeed MX1B Front & Rear Loading Maintenance IF IN DOUBT OF ANY OPERATION OR RISKS DETAILED BELOW, CONSULT TRAINED OPERATOR OR CALL HYDRAFEED LTD AND STATE MODEL AND SERIAL NUMBER OF UNIT. 01908 376331.
  • Page 84 Multifeed Setting & Operating Risks Multifeed Barfeed – Operating Risks Manual loading of raw material into barfeeder bar rack/magazine – manual handling training to be put into practice – Werner HSE. Repetitive strain when loading magazine Barfeed interface cable with CNC machine tool – 25mm diameter conduit cable run is under rear control panel of machine tool, ensure this is not exposed to walk ways, or outside cell confines.
  • Page 89 This machinery MUST ONLY be put into service with machinery (CNC lathes) which is also declared in conformity with the provision of the EC Directives THE HOLDER OF THE TECHNICAL FILE – HYDRAFEED LTD, TALGARTH HOUSE, BOND AVE, BLETCHLEY, MILTON KEYNES, BUCKINGHAMSHIRE, MK1 1JD ASHLEY PAGE –...
