Yardworks CLM48CU Instruction Manual

48v max* 17” (43 cm) 2-in-1 lawn mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

48V MAX* 17" (43 CM) 2-IN-1 LAWN MOWER
model number 060-1980-6 | contact us: 1.866.523.5218
3026035
IMPORTANT:
Instruction
Read and follow all safety rules and operating
Manual
instructions before using this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLM48CU and is the answer not in the manual?

Questions and answers

elisabeth klassen/kurtze
April 14, 2025

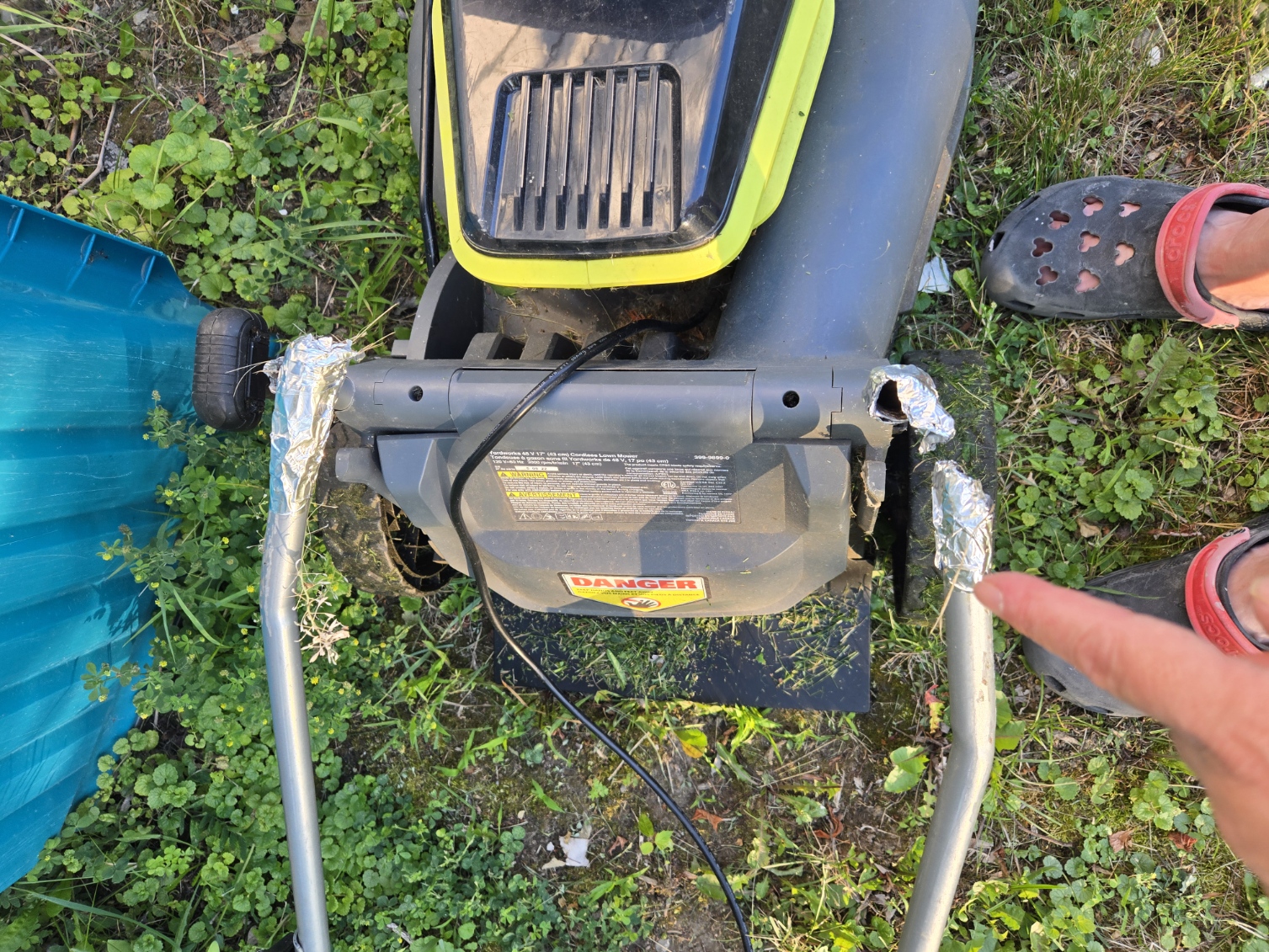

my yardworks lawnmover is about 2 1/2 years old battery was stored in the house and lawnmower was in the greenhouse trying to start it this spring and it wond start , wonder what is wrong , the startbutton seems ok but that is about it

0

Related Manuals for Yardworks CLM48CU

Summary of Contents for Yardworks CLM48CU

  • Page 1 48V MAX* 17” (43 CM) 2-IN-1 LAWN MOWER model number 060-1980-6 | contact us: 1.866.523.5218 3026035 IMPORTANT: Instruction Read and follow all safety rules and operating Manual instructions before using this product.
  • Page 2 model no. 060-1980-6 | contact us: 1.866.523.5218 model no. 060-1980-6 | contact us: 1.866.523.5218...
  • Page 3 model no. 060-1980-6 | contact us: 1.866.523.5218 Introduction Safety Instructions and Symbols Product Specifications Product Diagram Assembly Operation Maintenance Storage Troubleshooting Exploded View Parts List Warranty...
  • Page 4 ® and manufactured to give you the best possible dependability and performance. Should you experience any problem you cannot easily remedy, please contact our Yardworks cus- tomer service line at 1.866.523.5218 PLEASE READ AND RETAIN THIS INSTRUCTION MANUAL. These instructions will enable you to assemble and maintain your appliance properly.
  • Page 5 model no. 060-1980-6 | contact us: 1.866.523.5218 READ ALL INSTRUCTIONS of reach of children. 11) Maintain lawn mower with care. Keep FOR ALL LAWN MOWERS cutting edges sharp and clean for 1) Avoid dangerous environments. Don't best and safest performance. Follow use lawn mowers in damp or wet instructions for lubricating and changing locations.
  • Page 6 model no. 060-1980-6 | contact us: 1.866.523.5218 model no. 060-1980-6 | contact us: 1.866.523.5218 FOR ALL BATTERY-OPERATED explosion or risk of injury. GARDENING APPLIANCES: 8. Do not expose a battery pack or appliance to fire or excessive 1. Prevent unintentional starting. Ensure temperature.
  • Page 7 model no. 060-1980-6 | contact us: 1.866.523.5218 not use any charger other than that use. specifically provided for use with the e) Do not subject battery pack to equipment. A charger that is suitable for mechanical shock. one type of battery pack may create a f) In the event of battery leaking, do not risk of fire when used with another battery allow the liquid to come in contact...
  • Page 8 model no. 060-1980-6 | contact us: 1.866.523.5218 4. Do not mow near drop-offs, ditches, 9. Do not operate machine without the or embankments. You could lose your entire grass catcher, discharge guard, rear guard, or other safety protective footing or balance. devices in place and working.
  • Page 9 model no. 060-1980-6 | contact us: 1.866.523.5218 motor, unplug, thoroughly inspect the 9. Maintain or replace safety and instruction mower for any damage, and repair the labels, as necessary. damage before restarting and operating the mower. Safe Operation Practices for Walk- d) If the equipment should start to vibrate Behind Mowers abnormally, stop the motor and check...
  • Page 10 model no. 060-1980-6 | contact us: 1.866.523.5218 model no. 060-1980-6 | contact us: 1.866.523.5218 on a thin nail through its centre hole. • Increase the separation between the The nail should also be in a horizontal equipment and receiver. position. If either end of the blade rotates •...
  • Page 11 Yardworks has established a partnership with the RBRC Corporation to ® recycle any Yardworks batteries with the RBRC-call2recycle seal. For ® environmental protection, please do not discard batteries in the trash. After the battery’s life cycle is ended, please call 1-800-822-8837 for a free service that will properly dispose of the battery.
  • Page 12 model no. 060-1980-6 | contact us: 1.866.523.5218 PRODUCT SPECIFICATIONS Voltage No load speed 3000/min Deck size 17" (43 cm) Cutting width 16" (41 cm) Cutting height range 1 1/2–4" (3.8–10.2 cm) Collection capacity 45 L Cutting height positions 7 positions Front wheel diameter 8"...
  • Page 13 model no. 060-1980-6 | contact us: 1.866.523.5218 Switch lever Safety knob Upper handle Cable clip Cable Upper locking knob Grass collection bag Lower handle Safety flap 10. Lower locking knob 11. Rear wheel 12. Cutting height adjusting lever 13. Battery pack cover 14.
  • Page 14 model no. 060-1980-6 | contact us: 1.866.523.5218 model no. 060-1980-6 | contact us: 1.866.523.5218 To reduce the risk of injury, user must read instruction manual Intended Use This product is intended for domestic lawn mowing. • Mowing with grass collection bag attached—Standard lawn mowing with grass collection bag attached.
  • Page 15 model no. 060-1980-6 | contact us: 1.866.523.5218 3. ATTACH THE CABLE CLIPS 1) Attach the cable clips provided to the upper and lower handle (See Fig. C1). 2) Insert the cable into the clips to fasten the cable to the handle, ensuring there is enough cable slack (See Fig.
  • Page 16 model no. 060-1980-6 | contact us: 1.866.523.5218 model no. 060-1980-6 | contact us: 1.866.523.5218 4. GRASS COLLECTION BAG FITTING 1) Turn the mower off, wait until blade stops. 2) Open the safety flap (See Fig. D1). 3) Pick up the grass collection bag, and position the left and right hooks of grass collection bag on the mower.
  • Page 17 model no. 060-1980-6 | contact us: 1.866.523.5218 1. CHARGING THE BATTERY PACK IMPORTANT NOTES FOR CHARGING BATTERY The battery in your new tool is not charged when it leaves the plant. Therefore it must be fully charged before using the first time. NOTE: If the battery pack is very hot you must remove your battery pack from the charger and allow your battery pack to cool first to ambient temperature and then recharging can be started.
  • Page 18 model no. 060-1980-6 | contact us: 1.866.523.5218 CHARGING INDICATOR This charger is designed to detect some problems that can arise with battery packs. Indicator lights indicate problems (see table below). Light ON/ Flash Status Defective Battery Red on Battery Temperature Protection. The temperature of battery pack is Red flash less than 0°C (32°F) or more than...
  • Page 19 model no. 060-1980-6 | contact us: 1.866.523.5218 1. STARTING AND STOPPING STARTING (SEE FIG. G) Depress the safety button first, pull the switch lever toward the handle, and the mower will start. STOPPING Release the switch lever to stop the mower. 2.
  • Page 20 model no. 060-1980-6 | contact us: 1.866.523.5218 3. REMOVING/EMPTYING THE GRASS COLLECTION BAG (SEE FIG. 11, 12) 1) Lift the safety flap and hold up. 2) Hold and remove grass collection bag.
  • Page 21 model no. 060-1980-6 | contact us: 1.866.523.5218 4. MOWING TIPS NOTE: Always inspect area where mower is to be used and remove all stones, sticks, wire, metal and other debris which might be thrown by the rotating blade. 1) It is recommended to mow your lawn more frequently, walk at normal pace, and not to start/stop the mower too often during operation.
  • Page 22 model no. 060-1980-6 | contact us: 1.866.523.5218 model no. 060-1980-6 | contact us: 1.866.523.5218 5. MULCHING MOWING TIPS Using the mower without the grass collection bag attached. Lift the safety flap and hold up. Insert the mulching insert into position, then release and close the safety flap (See Fig J1, J2). When using the mulching feature, your new mower is designed to cut the grass clippings into small pieces and distribute them back into the lawn, using mulching fins located inside the mower deck.
  • Page 23 model no. 060-1980-6 | contact us: 1.866.523.5218 NOTE: To ensure long and reliable service, perform the following maintenance procedures regularly. Check for obvious defects such as a loose, dislodged or a damaged blade, loose fittings, and worn or damaged components. Check that the covers and guards are all undamaged and are correctly attached to mower.
  • Page 24 model no. 060-1980-6 | contact us: 1.866.523.5218 model no. 060-1980-6 | contact us: 1.866.523.5218 BLADE MAINTENANCE (See Fig. M) Replace your blade after 50 hours mowing or 2 years, whichever is the sooner, regardless of condition. REMOVE THE BATTERY PACK BEFORE DISASSEMBIING THE BLADES. BE SURE THE MOWER IS TURNED OFF AND REMOVE THE BATTERY PACK.
  • Page 25 model no. 060-1980-6 | contact us: 1.866.523.5218 Stop the mower and remove the battery pack. Clean the exterior of the machine thoroughly using a soft brush and cloth. Do not use water, solvents or polishes. Remove all grass and debris, especially from the ventilation slots.
  • Page 26 1.866.523.5218. Blade should turn freely. ® Has battery been fully charged? If not, recharge the battery pack. Turn mower off. Remove the battery pack. Check that blade is free to turn. If not free, contact Yardworks at 1.866.523.5218. Blade should ® turn freely.
  • Page 27 model no. 060-1980-6 | contact us: 1.866.523.5218 1(7) 1(4) 6(2) 1(4) 62 61 6(2) 57(2) 11(4) 73(2) 11(4) 59(2) 1(4) 72(2) 21(2) 1(2) 24(4) 26(4) 25(4) 27(4) 1(2) 28(2) 30(2) 29(2) 75(2) 74(2) 31(2) 36(2) 37(4) 1(3) 1(6) 51(3) 19(2) 1(4) 1(6) 41(4)
  • Page 28 model no. 060-1980-6 | contact us: 1.866.523.5218 Item Description QTY. Item Description QTY. Baffle B type-Self tapping screw ST3.9x16 Battery pack Support plate I B-screw assembly M4x25 Right decorative cover Bushing Right case Baffle III Support plate II Gasket B type-Self tapping screw ST3.5x25 Blade Battery pack bracket fasten function screw nut...
  • Page 29 These parts are warranted to the original purchaser to be free from defects in Made in China. Imported by Yardworks Canada Toronto, Canada M4S 2B8 Always remove or disconnect the battery pack before adjusting, cleaning,...
  • Page 30 Supplier’s Declaration of Conformity Product Description: Charger 060-1990-2 Model Number: Trade Name: Yardworks ® This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 33 17” (43 CM) 2-IN-1 LAWN MOWER Model number 060-1980-6 | contact us: 1.866.523.5218 ASSEMBLY 1. ASSEMBLING THE LOWER HANDLE 1) Insert the lower handle, washer, lower locking knob into the screw hole on the deck (See Fig. A1). 2) Turn the locking knob clockwise and tighten it (See Fig. A2). 3) Repeat for the other side.
  • Page 34 17” (43 CM) 2-IN-1 LAWN MOWER Model number 060-1980-6 | contact us: 1.866.523.5218 3. ATTACH THE CABLE CLIPS 1) Attach the cable into the clips to fasten the cable to the upper and lower handle (See Fig. C1). 2) Insert the cable into the clips to fasten the cable to the handle, ensuring there is enough cable slack (See Fig.
  • Page 35 17” (43 CM) 2-IN-1 LAWN MOWER Model number 060-1980-6 | contact us: 1.866.523.5218 PREPARE 1. CHARGING PROCEDURE (See Fig. E) 1) Plug the charger (Not included) into an appropriate outlet. 2) The light will flash green when charging. When fully charged, the light will turn solid green.
  • Page 36 17” (43 CM) 2-IN-1 LAWN MOWER Model number 060-1980-6 | contact us: 1.866.523.5218 4. MULCHING MOWING (without the grass collection bag) Lift the safety flap and hold up. Insert the mulching insert into position (See Fig G). 5. INSTALLING THE BATTERY PACK Slide the battery pack into battery port.
