Cable run
1
Limit switch adjustment
3
Y
Y + 50 mm
Position the feet at the limit switches while keeping a 2 cm margin before the gate stop. The limit
switch pawl should be all down. Note: the first trigger pulse after switching on power is the opening.
For safety warnings, please see complete instruction manual
DEIMOS BTA
Use normalised black cables
R02V - HO5VVF
2x0.75 mm²
3x1.5 mm²
te
I
≥ 20 mm
FW ≥ 3.03
Motor fastening
2
>25 mm
60-70 mm
17 mm + X
X = Rack
Concrete foundation
4
Programming (see reverse)
Gear set / rack
2 mm
17 mm
Advertisement
Related Manuals for BFT DEIMOS BT A400 120
Summary of Contents for BFT DEIMOS BT A400 120

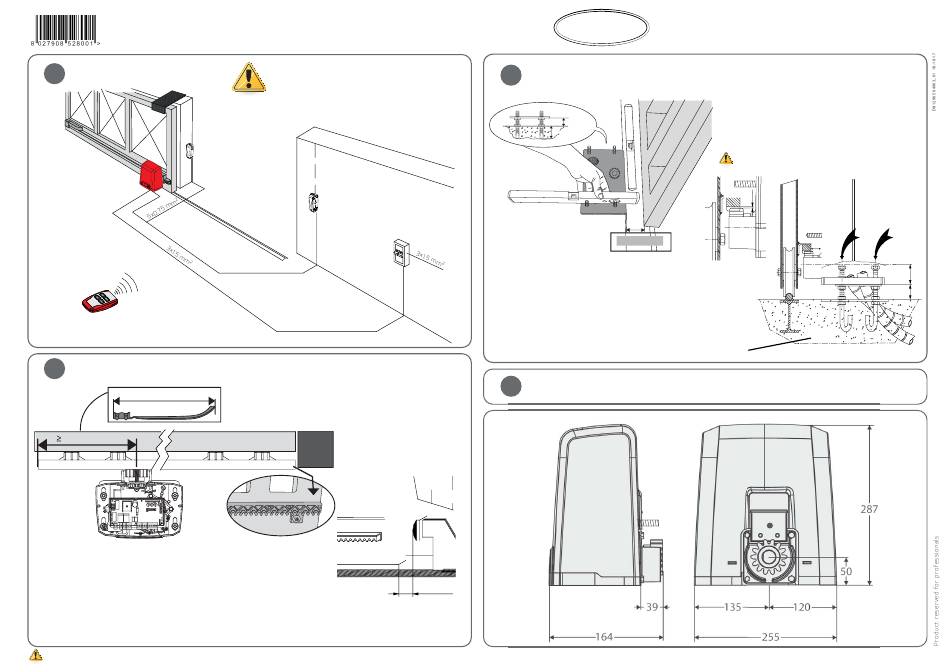

- Page 1 DEIMOS BTA FW ≥ 3.03 Cable run Use normalised black cables Motor fastening R02V - HO5VVF >25 mm 60-70 mm Gear set / rack 2 mm 17 mm + X 17 mm 2x0.75 mm² X = Rack 3x1.5 mm² Concrete foundation Limit switch adjustment Programming (see reverse) Y + 50 mm...
- Page 2 Hamal control board Wire the THEA photocells. Wire the DESME photocells 50 51 52 50 51 DIP3=ON DIP3=OFF SHIELD RADIO Testing the direction of opening - running / stop: START apply power, motor engaged and at stroke centre. HAMAL Checking the direction of rotation. STOP START By default, the opening is on the right.
