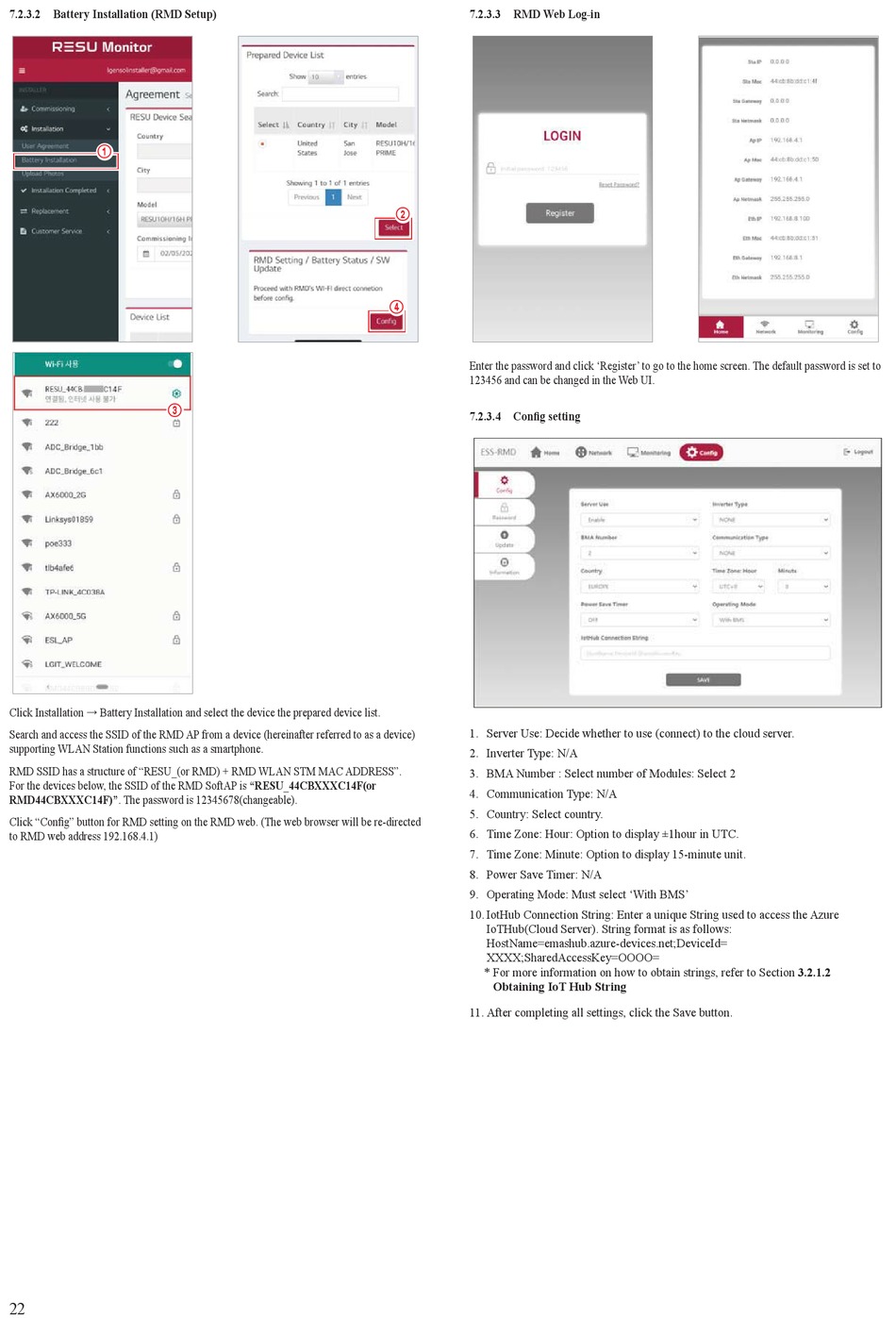

LG RESU16H Prime Installation Manual page 22

1
3
Search and access the SSID of the RMD AP from a device (hereinafter referred to as a device)
supporting WLAN Station functions such as a smartphone.
RMD SSID has a structure of "RESU_(or RMD) + RMD WLAN STM MAC ADDRESS".
For the devices below, the SSID of the RMD SoftAP is
. The password is 12345678(changeable).
to RMD web address 192.168.4.1)
22
2
4
Enter the password and click 'Register' to go to the home screen. The default password is set to
123456 and can be changed in the Web UI.
1. Server Use: Decide whether to use (connect) to the cloud server.
2. Inverter Type: N/A
3. BMA Number : Select number of Modules: Select 2
4. Communication Type: N/A
5. Country: Select country.
6. Time Zone: Hour: Option to display ±1hour in UTC.
7. Time Zone: Minute: Option to display 15-minute unit.
8. Power Save Timer: N/A
9. Operating Mode: Must select 'With BMS'
10. IotHub Connection String: Enter a unique String used to access the Azure
IoTHub(Cloud Server). String format is as follows:
HostName=emashub.azure-devices.net;DeviceId=
XXXX;SharedAccessKey=OOOO=
* For more information on how to obtain strings, refer to Section 3.2.1.2
Obtaining IoT Hub String
11. After completing all settings, click the Save button.
