Summary of Contents for Minolta MN200NV

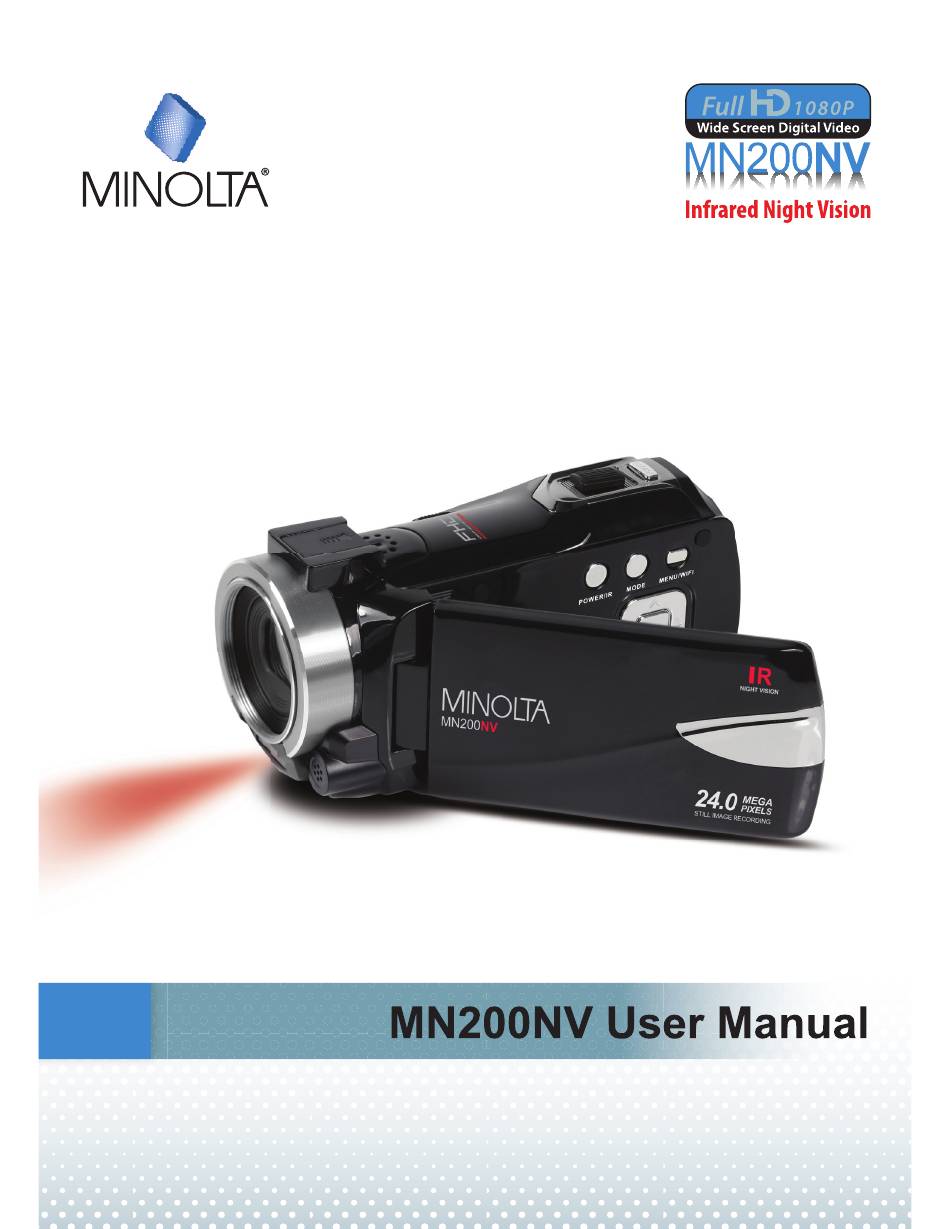

  • Page 2 1. About Your Camcorder About this Manual Congratulations on purchasing the Minolta MN200NV HD Camcorder! The contents of this manual are subject to change without notice. Note that the example screens and product illustrations shown in this User’s Guide may differ somewhat from the screens and configuration of the actual camera.
  • Page 3 1. About Your Camcorder be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. FCC: SAR standard Value: 1.6 W/Kg, Maximal Measure: 0.4 W/kg CE Mark Warning This is a Class B product, in a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
  • Page 4 1. About Your Camcorder batteries according to the instructions. • Please keep the batteries out of the reach of children to prevent from swallowing batteries, which might cause poisoning. • Once the battery's color changes or its shape is twisted, please stop using it. USB adapter Information •...
  • Page 5 Camcorder Interface [Rear View] [Front View] [Top View] [Bottom View] [Side View]...
  • Page 6 1.2 Button Function Description Function Description Power | IR Press for 3 seconds to power on or off. Tap once to enable or disable IR night vision. Mode Press to cycle between Video, Photo, Playback and Setup modes. Menu | WIFI Press to access and exit all menus and submenus.
  • Page 7 . First Use Memory Card Door to cover storage slot for inserting a memory Door card. Battery Door Door to cover the battery compartment. Speaker Built-in speaker output for playback of video files when audio recording is enabled. Lens Front capture device for all video and photo. 2.
  • Page 8 . First Use NOTE: Please format the memory card before using the camcorder (Caution, this will erase all data on the card). Do not remove or insert the memory card when recording. It may damage the card or cause data loss. Memory card rating must be Class 10 or above.
  • Page 9 2. First Use 2.4 Powering the Camcorder On/Off Hold the POWER button for 3 seconds to power the camcorder on. To power the camcorder off, press and hold the POWER button for a further 3 seconds. The camcorder will automatically power on and off when the screen is opened or closed.
  • Page 10 2. First Use 2.7 Connecting to a TV The camcorder can also be connected to a TV. When connected, the camcorder screen will turn off and the camcorder will function normally. Use the TV as the camcorder monitor. 1. Connect the large end of the HDMI cable to HDMI port on the TV.
  • Page 11 2. First Use 2.8 Video Mode Press the MODE button to switch to Video Mode. The meaning of each icon within Video Mode is explained in the table below: 1) Video Mode 6) Recording Time 2) Video Quality Indicator 7) Memory Card Inserted 3) Exposure 8) Battery Level 4) Video Size (Resolution)
  • Page 12 2.10 Using the Zoom Function This camcorder has a digital zoom function. To operate the zoom function, slide the ZOOM button right to zoom in closer to the subject, and to the left to zoom away from the subject. 2.11 Using the IR Night Vision Mode This camcorder has built-in infrared (IR) LEDs for night vision recording - giving you the ability to capture photos and videos in a dark environment.
  • Page 13 3. Using Your Camcorder Using the Camcorder 3.1 Video Recording Power the camcorder on and it will be ready to record clips right away. You may press the MODE button to switch to another mode. A camcorder icon will appear in the top left hand corner of the screen when you are in Video mode.
  • Page 14 3. Using Your Camcorder 2. Select ‘Loop Record’ using the UP or DOWN buttons and press the OK button to enter the ‘Loop Record’ submenu. 3. Press the UP or DOWN buttons to select the required loop duration option (Off, 1 Minute, 3 Minutes, 5 Minutes), and press the OK button to confirm your selected option.
  • Page 15 3. Using Your Camcorder scene. Center-Weighted metering will use the light from the center of the LCD and the Multi setting measures the light at several points on the screen. 1. In Video Mode press the MENU button. 2. Select ‘Metering’ using the UP or DOWN buttons and press the OK button to enter the ‘Metering’...
  • Page 16 3. Using Your Camcorder 3.1.11 Time Lapse Duration The duration for the time lapse setting is determined in the menu. The option chosen here will record for the chosen duration. 1. In Video Mode press the MENU button. 2. Select ‘Time Lapse Duration’ using the UP or DOWN buttons and press the OK button to enter the ‘Time Lapse Duration’...
  • Page 17 3. Using Your Camcorder 3.2 Photo Shooting Power the camcorder on and press the MODE button or press the icon in the top left hand corner of the screen to switch to Photo mode. 1. Line up your shot by looking at the LCD screen to see what is in the shot. 2.
  • Page 18 3. Using Your Camcorder scene. Center-Weighted metering will use the light from the center of the LCD and the Multi setting measures the light at several points on the screen. 1. In Photo Mode press the MENU button. 2. Select ‘Metering’ using the UP or DOWN buttons and press the OK button to enter the ‘Metering’...
  • Page 19 3. Using Your Camcorder 1. In Photo Mode press the MENU button. 2. Select ‘Self Timer’ using the UP or DOWN buttons and press the OK button to enter the ‘Self Timer’ submenu. 3. Press the UP or DOWN buttons to navigate the menu, and press the OK button to confirm your selected option (Off, 2 Seconds, 10 Seconds, Double).
  • Page 20 3. Using Your Camcorder 3.3.4 explains how to set the time & date on your camcorder. Note that once a date/time stamp is captured on a photograph, it cannot be removed. 3.2.12 Image Stabilization This function enables photo capture in high speed and low-light by electronically minimizing motion blur and reducing camera shake.
  • Page 21 3. Using Your Camcorder 1. In Photo Mode, press the MENU button. 2. Select ‘Time Lapse’ using the UP or DOWN buttons and press the OK button to enter the ‘Time Lapse’ submenu. 3. Press the UP or DOWN buttons to navigate the menu, and press the OK button to confirm your selected option (Off, 3 Seconds, 5 Seconds, 10 Seconds, 30 Seconds, 1 Minute).
  • Page 22 3. Using Your Camcorder 3.3 Setup Menu Basic settings can be changed in the Setup menu. These include date & time, language and sound options. Power the camera on and press the MODE button to switch to setup mode. A menu will display on the screen. 3.3.1 Sounds This function can set the sound volume on your camcorder.
  • Page 23 3. Using Your Camcorder 1. In Setup Mode use the UP or DOWN buttons to select ‘Date and Time’ and press the OK button to enter the ‘Date and Time’ submenu. 2. Press the LEFT or RIGHT button to switch between year, month, date, hours and minutes.
  • Page 24 3. Using Your Camcorder 2. Press the UP or DOWN buttons to select your desired option, then press the OK button to confirm your selection (Yes, No). Playback Mode Videos and photos captured on your camcorder can be easily played back. The status LED will be solid RED while in Playback Mode.
  • Page 25 3. Using Your Camcorder 3. Press the MENU button to exit the menu without deleting any pictures or videos. 3.4.3 Slideshow Photographs can be viewed as a slideshow on the camcorder. 1. In Playback Mode press the MENU button, and use the UP or DOWN buttons to select ‘Slide Show…’...
  • Page 26 3.4 Wireless Connectivity 3.5.1 Connecting to the iSmart DV App To wirelessly operate the MN200NV camcorder you will need to install the “iSmart DV” app on your Android or iOS device. The camera can be operated remotely by following the steps below: 1.
  • Page 27 3. Using Your Camcorder 3.5.2 Operating the iSmart DV App Your MN200NV will now be operable via your smartphone. It will initially default to the video recording function. To change from video, press the camera icon in the bottom right hand corner your phone screen.
  • Page 28 3. Using Your Camcorder 3.5.2.2 Taking Photos Remotely 1. To take a photo, press the capture button at the bottom of your smartphone screen. When a photo is taken, the operating indicator light at the back of the camcorder will flash red twice. 2.
  • Page 29 3. Using Your Camcorder 3.5.2.3 Viewing Media on the App To view your photos and videos on the app, press the photo gallery button in the bottom left corner of the screen. All media on the camcorder will load in two sections; photos and videos. Tap the photo or video file you wish to view.
  • Page 30 3. Using Your Camcorder 3.5.2.4 Changing Camcorder Settings on the App Camcorder settings can also be changed on the app. Click the icon in the top right hand corner of the screen to launch the settings menu. From here, a number of settings including white balance and frequency can be changed.
  • Page 31 4.1 Technical Specifications Model Number Minolta MN200NV Fixed Focus • f=7.5mm • F/3.2 • 37mm Front Lens Threading for Lens Accessory Attachments Zoom 16X Digital Zoom Image Sensor 1/3.2" IMX179 Sony CMOS; 3288x2512 Pixels Shutter Speed 1/60 ~ 1/30 sec Shutter Electronic •...
  • Page 32 Minolta is a registered trademark of JMM Lee Properties, LLC and is used in the United States by Elite Brands Inc. under license. 40 Wall Street, 61st Floor, New York, NY 10005 USA • Tel: 800-441-1100 www.minoltadigital.com • www.elitebrands.com Copyright © 2020 Elite Brands Inc.
