CS-iTEC is not liable for errors which may have slipped into this operating manual. Notes on safety • CS 305 is designed to meet state-of-the-art safety requirements, has been tested, and left the factory in a condition in which it is safe to operate. Relevant regulations and European standards have been observed.
Page 3

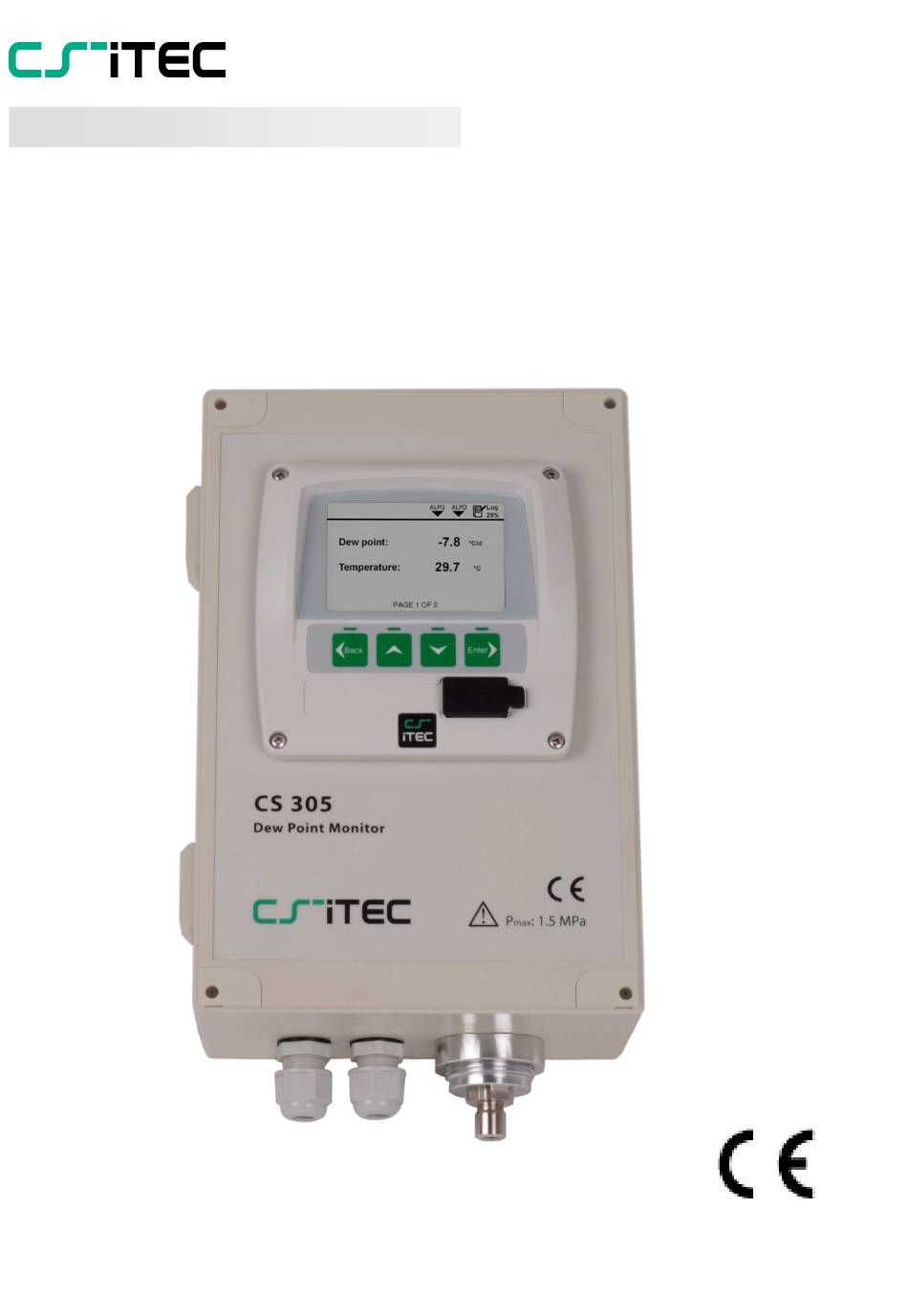

USB interface for configuration with CSC-350 software • Wall mountable casing • Optical alarm on display 2. Overview 2 cable glands for power 6 mm hose connector for and alarm/signal cable compressed air CS 305 English, V1.0 10.01.14 0970 0074...
Page 4
The instrument is mounted at a wall. Please follow the installation steps as described below. For the wall mounting please first mount the brackets to the bottom of the casing as indi- cated in the picture 0970 0074 CS 305 English, V1.0 10.01.14...
Page 5
The second cable gland can be used for alarm and signal cables. After the wiring is done, the CS 305 can be closed with 4 screws. Use the covers to close the screw open- ings.
Page 6
CS 305 4. Sensor change The sensor unit may need to be changed in service cases. For this purpose the CS 305 has to be opened and the sensor cable should be removed at the display terminal first as indicated below.
