Preparation

2 Preparation
This section covers items you should check before using this LS linear head.

2.1 Checking the product

Open the package and confirm that all of the following items are available.
Should you find any item missing or damaged, contact the Oriental Motor office where you purchased the
product.
• Linear head 1 unit
• OPERATING MANUAL (this manual) 1 copy

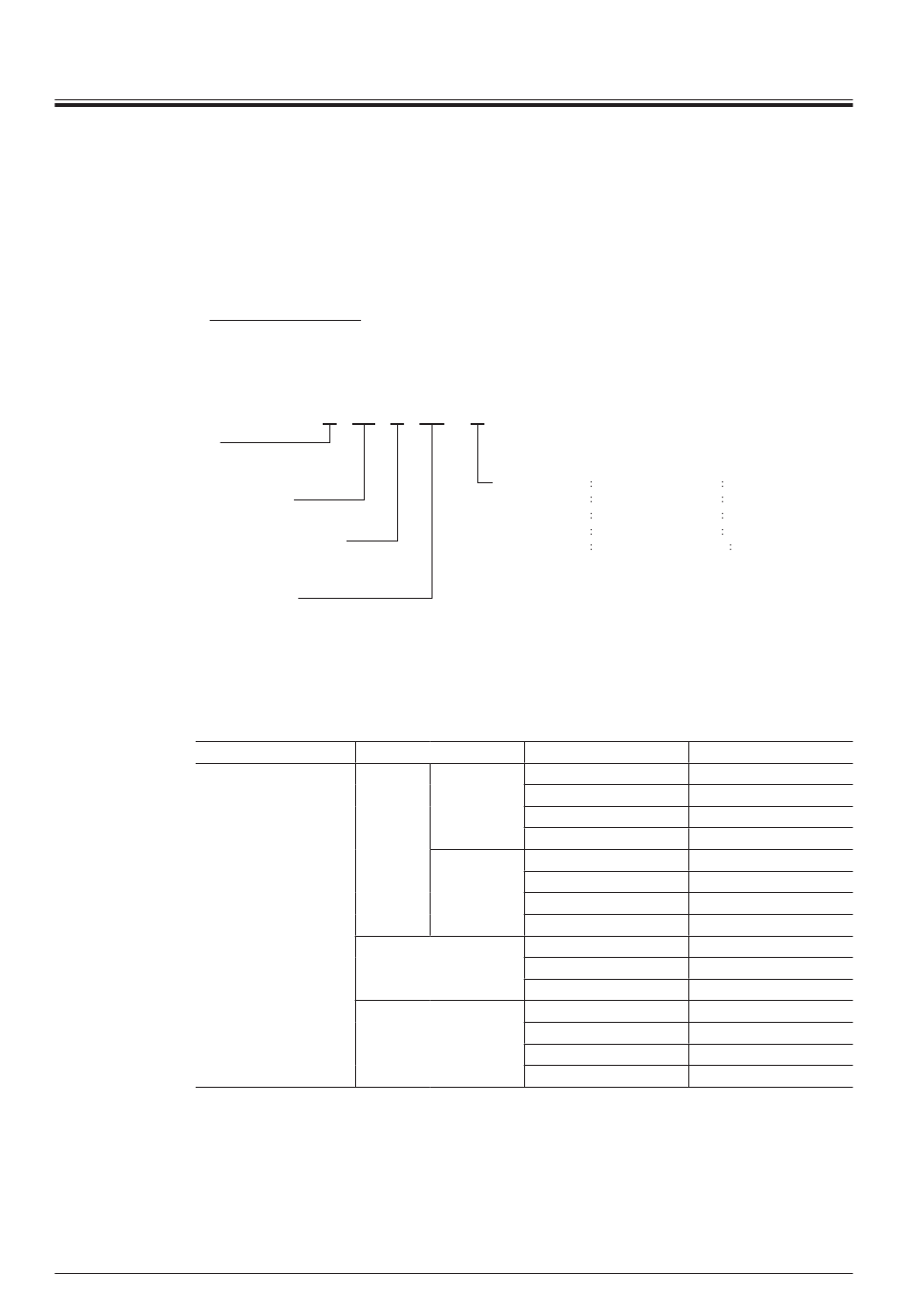

2.2 How to read the model number

Model
2: 60 mm (2.36 in.) square
4: 80 mm (3.15 in.) square
Name of the series
: LS linear head
Direction of rack movement
B: Parallel with mounting foot surface
F: Vertical to mounting foot surface
Rack speed (mm/s)

2.3 Combinations of motors and linear head

Standard AC motors that can be combined with the linear head are listed below.
In addition to the products specified below, you can also combine GN pinion motors.
Recommended motor
World K series
* This table lists representative motors that can be combined. In addition to the above, GN pinion motors of
o 60 mm (2.36 in.) and o 80 mm (3.15 in.) can also be combined with the 2LS type and 4LS type, respectively.
−4−
2 LS B 45 - 5
Application
Constant Motor leads
speed type
Terminal
box type
Position holding
Push-motion
Rack stroke * 1 100 mm (3.94 in.) 6 600 mm (23.62 in.)
2 200 mm (7.87 in.) 7 700 mm (27.56 in.)
3 300 mm (11.81 in.) 8 800 mm (31.50 in.)
4 400 mm (15.75 in.) 9 900 mm (35.43 in.)
5 500 mm (19.69 in.) 10 1000 mm (39.37 in.)
* 2LS type: Up to 800 mm (31.50 in.)
2LS type
2RK6GN-AW2J
2RK6GN-AW2U
2RK6GN-CW2J
2RK6GN-CW2E
2RK6GN-AW2BJ
2RK6GN-AW2BU
2RK6GN-CW2BJ
2RK6GN-CW2BE
2RK6GN-AW2MJ
2RK6GN-CW2MJ
2IK6GN-SW2M
2TK3GN-AW2J
2TK3GN-AW2U
2TK3GN-CW2J
2TK3GN-CW2E
4LS type
4RK25GN-AW2J
4RK25GN-AW2U
4RK25GN-CW2J
4RK25GN-CW2E
4RK25GN-AW2TJ
4RK25GN-AW2TU
4RK25GN-CW2TJ
4RK25GN-CW2TE
4RK25GN-AW2MJ
4RK25GN-CW2MJ
4IK25GN-SW2M
4TK10GN-AW2J
4TK10GN-AW2U
4TK10GN-CW2J
4TK10GN-CW2E
