Summary of Contents for iSP Technologies HUM EXTRACTOR +DECIMATOR G
- Page 1 INTRODUCTION...

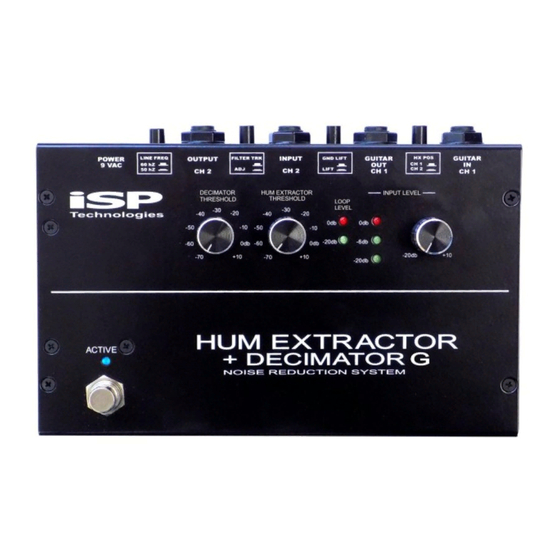

- Page 2 Congratulations on your purchase of the new patent pending HUM EXTRACTOR™ + DECIMATOR G™ pedal. The HUM EXTRACTOR +DECIMATOR G™ pedal was designed to provide the ultimate sonic performance possible for removing line frequency hum components from an instrument signal.
- Page 3 Select this position for the best operation of your particular system. In order for the HUM EXTRACTOR +DECIMATOR G to function properly the direct guitar input signal needs to be inserted into channel 1, this allows the direct guitar signal to be used to control the level...
- Page 4 The guitar output is connected directly to the Guitar IN on the HUM EXTRACTOR +DECIMATOR G, the Guitar OUT is connected to the input of all pedals which can cause noise in the signal path, compression, overdrive, distortion etc. The output of the pedal chain is connected to the input of a guitar amplifier and the series loop is connected to the second channel of the HUM EXTRACTOR +DECIMATOR G.
- Page 5 AC line frequency. The HUM EXTRACTOR +DECIMATOR G is a digital processor and requires optimizing the input signal level for proper headroom in the digital signal path. Start by turning the guitar all the way up play a HOT signal adjusting the INPUT LEVEL control so that the 0db LED just flashes with maximum playing levels.
- Page 6 The release time of the dynamic filter is controlled by the Time Vector Processing circuit and our new patent pending DECIMATOR X technology, which determines the release characteristics of the input signal and automatically varies the release response of the dynamic filter.
- Page 7 The offset between the dynamic filter threshold and downward expander threshold will be maintained until the FILTER TRACKING button is switched in and the DECIMATOR threshold control is adjusted to change the saved FILTER TRACKING setting. HUM EXTRACTOR +DECIMATOR G™ SPECIFICATIONS INPUT IMPEDANCE 470K OHM INPUT LEVEL TRIM 21.5db / input level -8dbu to +13.5dbu...
- Page 8 Any damage resulting from the misuse or the failure to follow the precautions and instructions will void the warranty. In the event that the unit needs to be repaired, please return the unit to ISP Technologies directly. Simply repack the unit, send a copy of the original receipt, a note stating the problem, your contact information...
