Related Manuals for Inspire IC1.5C
Summary of Contents for Inspire IC1.5C
- Page 1 Model # IC1.5C / IC1.5C-CA USER MANUAL INDOOR CYCLE Distributed By: Pure-Tec Limited www.puretecfitness.com Record Serial Number Here...
-
Page 2: Table Of Contents
BEFORE YOU BEGIN Thank you for choosing the Inspire IC1.5 Indoor Cycle. For your safety and benefit, read this manual carefully before using the machine. We are committed to providing you complete customer satisfaction. If you have any questions,... -
Page 3: Important Safety Notice
IMPORTANT SAFETY NOTICE Precautions This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. Please note the following safety precautions: Always keep children and pets away from the machine. -
Page 4: Warning And Important Label Placement
WARNING AND IMPORTANT LABEL PLACEMENT WARNING FAILURE TO FOLLOW INSTRUCTIONS MAY LEAD TO SERIOUS PERSONAL INJURY. FLYWHEEL MOMENTUM WILL KEEP PEDALS TURNING EVEN AFTER YOU STOP PEDALING. DO NOT ATTEMPT TO DISMOUNT BIKE OR REMOVE FEET FROM PEDALS UNTIL PEDALS HAVE COMPLETELY STOPPED. -
Page 5: Assembly And Setup
ASSEMBLY AND SETUP Package Contents NAME QTY. NAME QTY. Frame Pedals, Right & Left Handlebars Tablet Mount Front Foot Tube Hardware Kit Rear Foot Tube Pg. 5... - Page 6 IC1.5C Assembly Hardware Kit NOTE: The parts shown are not drawn to scale. Please use your own ruler or scale to measure the size. Socket Head Cap Screw (M6*16) Socket Head Cap Screw (M8*60) Button Head Cap Screw (M8*45) Flat Washer...
-
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS Step 1 Attach the front foot tube (3) and rear foot tube (4), using button head cap screws (20) with washers (21). Use the Allen wrench #5 (T2). Step 2 Slide the handlebars (2) into position on the frame (1), secure with two socket head cap screws (22) with washers (21). Use the Allen wrench #6 (T3). - Page 8 Step 3 Attach the right and left pedals (5), keep in mind when installing the left pedal that it has left-handed thread. Use the wrench (T1). Attach the tablet mount (118) to the handlebars (2) using two socket head cap screws (114). Use the allen wrench #5 (T2).
-
Page 9: Adjustment Features
ADJUSTMENT FEATURES RESISTANCE ADJUSTMENT AND TABLET MOUNT ANGLE PUSH TO STOP KNOB ADJUSTMENT SEAT FORE AND AFT ADJUSTMENT SEAT HEIGHT ADJUSTMENT HANDLEBAR HEIGHT ADJUSTMENT FRAME LEVELING PADS Handlebar Hand Positions • Seated Flat – Hand Position 1 or 2 • Seated Climb –... -
Page 10: App Download
APP DOWNLOAD Need some workout ideas and motivation? Ready to ride with some of the best trainers in the nation? Start your FREE trial of our all-new mobile app. It’s filled with live and on demand video workouts, as well as written workout plans designed by our very own trainers. - Page 11 Hazardous Materials and Proper Disposal The batteries within self-powered equipment contain materials considered hazardous to the environment. Federal law requires proper disposal. Product Recycling and Disposal This equipment must be recycled or discarded per applicable local and national regulations. Product labels, in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE, determine the framework for the return and recycling of used equipment as applicable throughout the European Union.
-
Page 12: Warranty
WARRANTY Pure-Tec Ltd This Warranty applies to Inspire cardio products manufactured or distributed by Inspire IC1.5C Warranty Periods RESIDENTIAL WARRANTY 10 Years FRAME – Includes Main Frame and Welds 3 Years PARTS – Excluding Paint and Finish (unless defective out of box) -
Page 13: Ic1.5C Exploded View
IC1.5C EXPLODED VIEW Pg. 13... -
Page 14: Ic1.5C Parts List
IC1.5C PARTS LIST Description Qty. Description Qty. BC423-200-010 Main Frame BC423-561-031 Press Pulley Sleeve BC423-320-006PZ Handlebar Assembly BC423-881-050 Press Pulley BC423-220-004 Front Stabilizer 0116-006-008 Flat Washer BC423-220-003 Rear Stabilizer 0111-006-128A Hex Bolt 5 L/R B465-340-001 Crank Pedal Right and Left... - Page 15 www.puretecfitness.com V1.0-CCA...
Need help?
Do you have a question about the IC1.5C and is the answer not in the manual?
Questions and answers

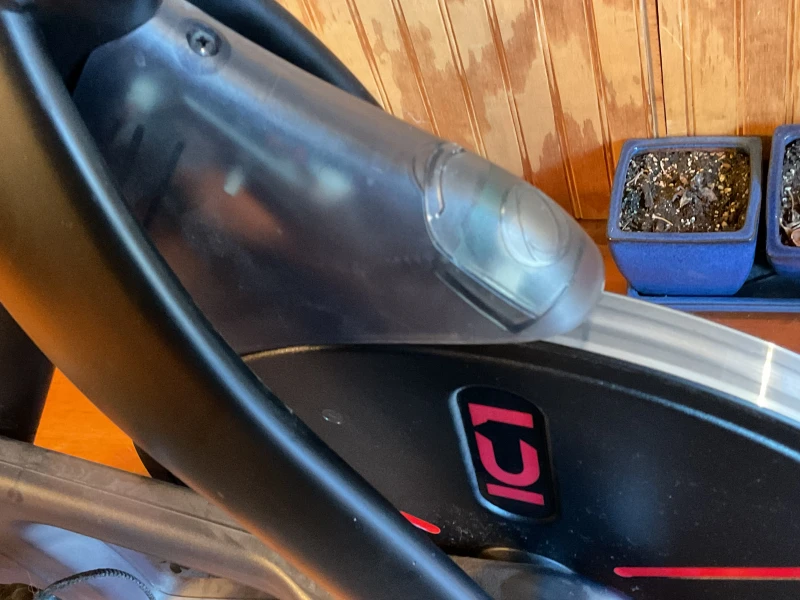

Greetings, I purchased a used Inspire IC1.5. Of course the manual is absent. However, I have been researching the instructions online but I cannot find information about the purpose of the battery compartment located above the front wheel. I did see mention of a body strap that might be for heart rate monitor? I **** not sure if a body strap/heart rate monitor was included when this bike was originally purchased. If so I would like to purchase the body strap if available. Most importantly, I would like to like specific info on the purpose of the battery compartment on the front of the unit and also on the garmin battery compartment and instructions on use. Thank you for your time.
The manual mentions ensuring the battery compartment is securely fastened but does not specify its exact purpose on the Inspire IC1.5. There is no mention of a body strap or heart rate monitor available for purchase.
This answer is automatically generated
