Sealey DH02.V2 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear protective
instructions gloves
1. SAFETY
Before use inspect the drum handler for damage and worn components.
9
If in any doubt do not use and have inspected/repaired by an authorised service agent.
9
Only use the drum handler on firm, level, unobstructed surfaces which are capable of
9
supporting the handler and drum.
DO NOT overload the drum handler - maximum capacity is 360kg.
8
DO NOT ride or allow others to ride on the drum handler.
8
DO NOT use on tarmacadam. The drum handler must only be used on a concrete surface.
8
Replace or repair damaged parts. Use only recommended parts. Unauthorised parts may be dangerous and will invalidate the warranty.
9
Use a qualified person to lubricate and maintain the drum handler.
9
WARNING! Failure to comply with these instructions may result in loss of load, damage to drum handler or other property and/or
‰
personal injury.

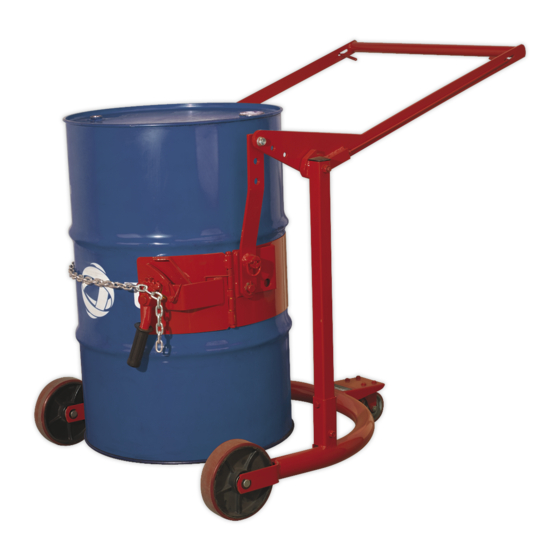

2. INTRODUCTION
Ideal for manoeuvring, relocating and draining fully loaded drums. Lever
handle raises drum in stages with fingertip operated locks. Adjustable for
reach/leverage and clamp height. Clips on both sides hold drum secure in
vertical or horizontal positions. Drum can be manually adjusted and held at
any angle or, if contents need mixing, can be turned end-over-end. Fitted with
two smooth rolling, heavy-duty wheels and one castor with brake. Suitable for
205ltr drums.
3. SPECIFICATION
Model No: . . . . . . . . . . . . . . . . . . . . . . . . . . DH02.V2
Drum Size: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205ltr
Lifting Weight:. . . . . . . . . . . . . . . . . . . . . . . . . . . 360kg
Nett Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50kg
Item Description
1 Chassis
2 Mast
3 Supporting Hoop
4 Handle
5 Location Pin
6 Fastening Lever
4. ASSEMBLY
4.1. Remove the sub-assemblies from packaging in following order.
A Chassis (fig.3.1).
B Mast (fig.3.2).
C Supporting Hoop (fig.3.3).
D Handle (fig.3.4).
E Washers, nuts and clamp collars.
4.2. Assemble mast (B) x 2 onto chassis (A) with the screws, washers and nuts
provided (E).
4.2.1. Bolt the handle (D) to the masts (B). See (fig.3.11).
4.2.2. Attach the hangers (fig.3.12) on the supporting hoop assembly (C) onto the
lifting arms (fig.3.11) on the handle (D) and secure with bolts provided.
4.2.3. Refer to parts diagram for additional guidance.
© Jack Sealey Limited
MOBILE DRUM HANDLER 205LTR
MODEL NO:
Wear safety
footwear
FIGURE 3 REFERENCE
Item Description Item
7 Chain
8 Wheel
9 Caster
10 Location Lever
11 Lifting Arm
12 Hanger Plate
Original Language Version
DH02.V2
fig.2
Description
13 Adjustment Hole
14 Pawl
15 Hinged Hoop
16 Adjustment Hole
17 Hook
fig.1
fig.3
DH02.V2 | Issue 3 (H,F) 11/04/2019
