This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
STEP 1: GENERAL INFORMATION. Sample picture of AMD Radeon R9 295X2 graphics card
STEP 2: PREPARING YOUR GRAPHICS CARD

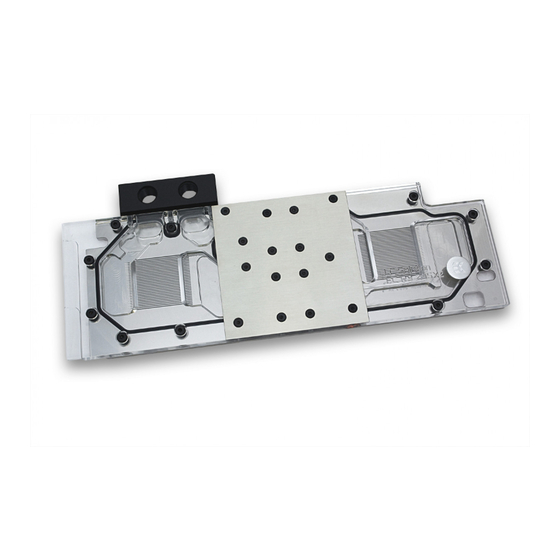

EK-FC R9-295X2 Backplate is very easy to install. First install EK-FC R9-295X2 water block according to its manual. If you have it already installed
the water block please check the picture below to see which mounting screws are to be left in their position and which are to be removed. Please
remove the eight (8) screws marked with arrow. Apply thermal pads on RAMs
STEP 3: APPLYING THE THERMAL PADS
EK-FC R9-295X2 Backplate features passive cooling of the printed circuit board and it's components therefore it is mandatory to install the enclosed
thermal pad. Please install enclosed 0,5mm thick thermal pad (Thermal Pad A – 0,5mm (100x16)) and 1,5mm thick thermal pad (Thermal Pad C –
1,5mm (50x25)) directly on the large extruded stub on the back plate itself as shown on the picture below. You need to trim the excess thermal
pad.
EK-FC R9-295X2 Backplate
2
All disclosures, notices and warranty conditions are being written on the back of the box.
Installation and mounting manual for EK-FC R9-295X2 Backplate
2
3
3
2x Thermal Pad D – 0.5mm (8xRAM).
2
www.ekwb.com
for updates. Before
1
1
1
1
1
1
1
1
Thermal pad C - 1,5mm (50x25mm)
Thermal pad A - 0,5mm
(100x16mm)
th
Revision 1.0. Released on 25
of April 2014.
Advertisement
Table of Contents
Related Manuals for ekwb EK-FC R9-295X2
Summary of Contents for ekwb EK-FC R9-295X2
- Page 1 STEP 2: PREPARING YOUR GRAPHICS CARD EK-FC R9-295X2 Backplate is very easy to install. First install EK-FC R9-295X2 water block according to its manual. If you have it already installed the water block please check the picture below to see which mounting screws are to be left in their position and which are to be removed. Please remove the eight (8) screws marked with arrow.
- Page 2 (Please note that EKWB holds no responsibility of any kind if assembly is not made by instructions. This applies also for all products that are not out of EKWB production line. Users must by all means also consider instructions that are being made for proper use of FC blocks.)
