Sealey STR005.V2 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions and maintained properly, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Instruction
Manual
1. SAFETY
WARNING! Use wheel storage rack on level and solid ground, preferably concrete. Ensure the floor over which the wheel
‰
storage rack will be transported is swept clean.
WARNING! DO NOT use on tarmacadam or any other soft surface as the wheel storage rack may sink or topple.
‰
WARNING! If a loaded wheel storage rack tips or leans STOP WHAT YOUR ARE DOING. MOVE QUICKLY TO A SAFE
‰
DISTANCE. DO NOT TRY TO HOLD OR STEADY WHEEL STORAGE RACK.
Use wheel storage rack in a suitable work area, keep area clean and tidy and free from unrelated materials. Ensure there is adequate
9
lighting.
Before use, ensure that the size and weight of the wheels DO NOT exceed the capacity of the wheel storage rack.
9
Maintain correct balance and footing when loading or moving the wheel storage rack. Ensure the floor is not slippery and wear non-slip
9
footwear.
Observe correct manual handling techniques when loading wheels on to the wheel storage rack. If in any doubt, obtain assistance.
9
Apply castor wheel brakes when wheel storage rack is stationary.
9
WARNING! DO NOT use wheel storage rack if any parts are damaged or missing.
‰
DO NOT allow untrained persons to use the wheel storage rack.
8
DO NOT get wheel storage rack wet or use in damp or wet locations or areas where there is condensation.
8
DO NOT use the wheel storage rack when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8
DO NOT use wheel storage rack for any purpose other than that for which it is designed.
8
Before storing in safe area, ensure all parts are clean, free of grease and oil.
9
WARNING: The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions
‰
and situations that may occur. It must be understood that common sense and caution are factors which cannot be built into
this product, but must be applied by the operator.
2. INTRODUCTION

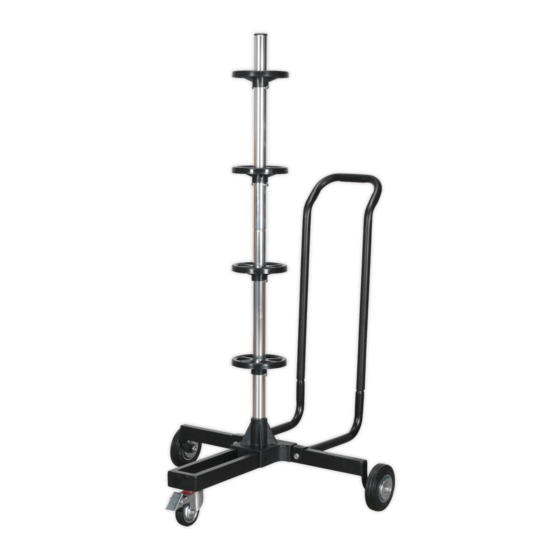

Completely freestanding wheel storage trolley for all types of car wheels with rim size up to 225mm. Easy to assemble. The trolley has three
wheels, one which features a lockable castor wheel and ergonomic handle for easy manoeuvring around the garage. Eliminates tyre distortion
due to loss of tyre pressure. Supplied with rim protecting supports.
3. SPECIFICATION
Model No: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . STR005.V2
Overall Size (W x D x H): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 680 x 750 x 1220mm
Wheel Capacity: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Maximum Rim Size: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225mm
Maximum Weight Capacity: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100kg (25kg per Level)
© Jack Sealey Limited
INSTRUCTIONS FOR
WHEEL STORAGE TROLLEY 100KG CAPACITY
WITH HANDLE
STR005.V2
MODEL NO:
Original Language Version
STR005.V2 Issue: 1 - 23/11/16
