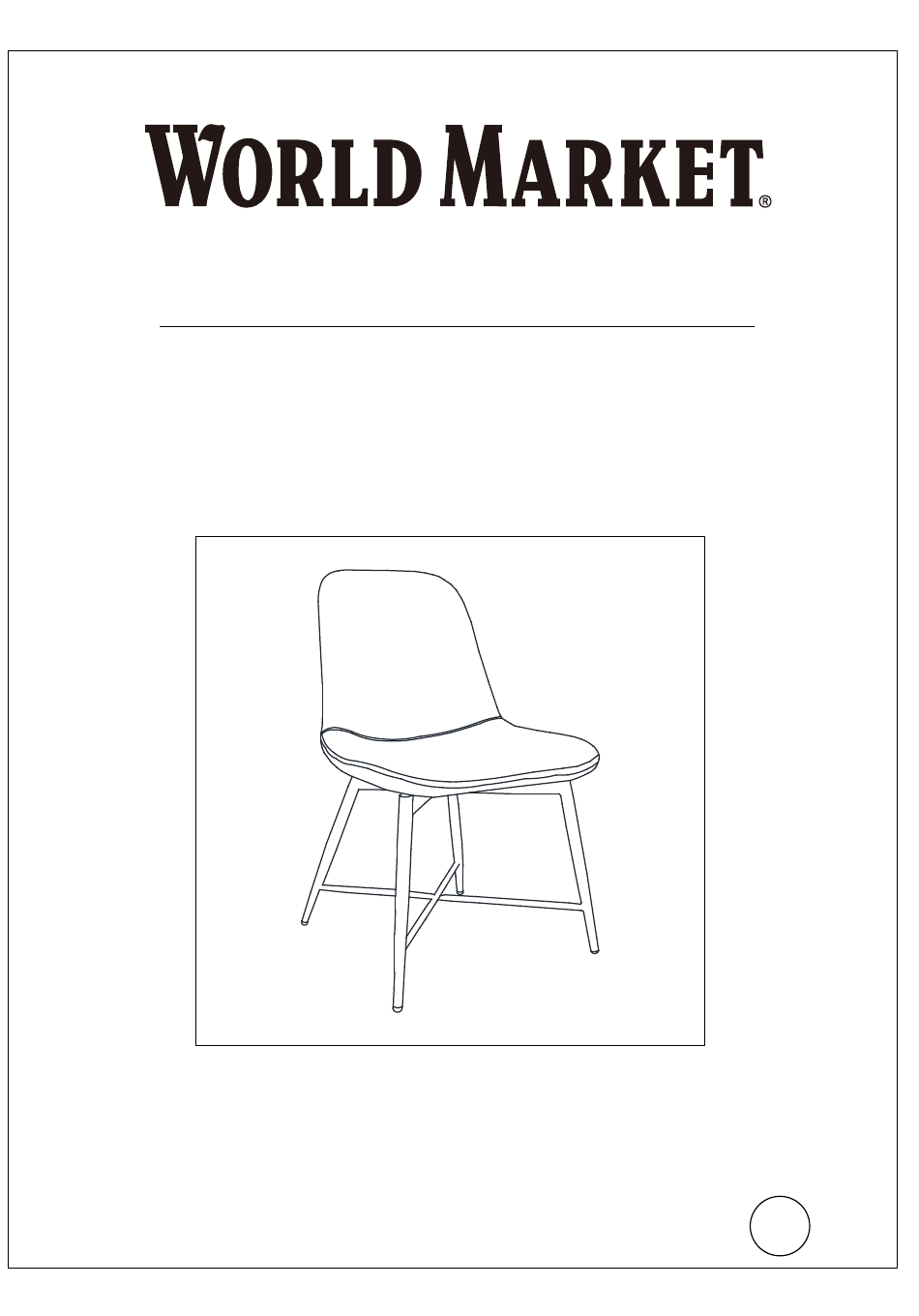

Assembly Instructions

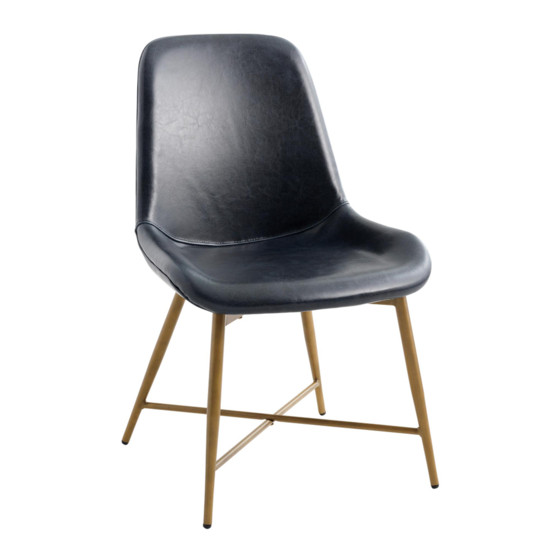

TYLER DINING CHAIR

SKU# 541928 / 549821

THANK YOU FOR YOUR PURCHASE.

IF YOU HAVE ANY QUESTIONS PERTAINING TO THE ASSEMBLY

OF THIS FURNITURE PIECE, PLEASE CONTACT THE NEAREST

COST PLUS WORLD MARKET STORE. IF YOU ARE NOT NEAR A STORE,

PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER

TOLL FREE AT 877- 967-5362 FOR ASSISTANCE.

CH208

Material #: 980296BRN01 / 980296BLK02

Page 1

Need help?

Do you have a question about the TYLER DINING CHAIR 541928 and is the answer not in the manual?

Page 1 IF YOU HAVE ANY QUESTIONS PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT THE NEAREST COST PLUS WORLD MARKET STORE. IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER TOLL FREE AT 877- 967-5362 FOR ASSISTANCE.
Page 2 Seat Upper leg frame Lower leg frame Page 2...
Page 3: Tool List
Tool List Alen Wrench ( 6x60mm) Bolt Spring Washer ( 6mm) Flat Washer ( 6mm) ( 6x16mm) Shorter bolt Page 3...
Page 4 Have 2 adults on hand for assembly- In case of missing parts,Please call toll free 877-967-5362 for assistance. Page 4...
Page 5 Step 1 Install Lower leg frame C To Upper leg frame B as shown. Step 2 Install Lower leg frame C to Upper leg frame B with hardware H-4 using Allen key. Do not fully tighten the bolt. Page 5...
Page 6 Step 3 Remove the PE sheet before assembly. Step 4 Place assembled Leg frame onto Seat with hardware H-1 (4), H-2 (4) and H-3 (4) using Allen key. Do not fully tighten until all 4 bolts are inserted. Page 6...
Page 7 Step 5 Tighten all the bolts completely. Assembly complete chair is now ready to use. Note: If your chair is not level, loosen the bolts to 90%, while on a hard surface add weight to the seat to level the legs and re-tighten all the bolts to 100%.
