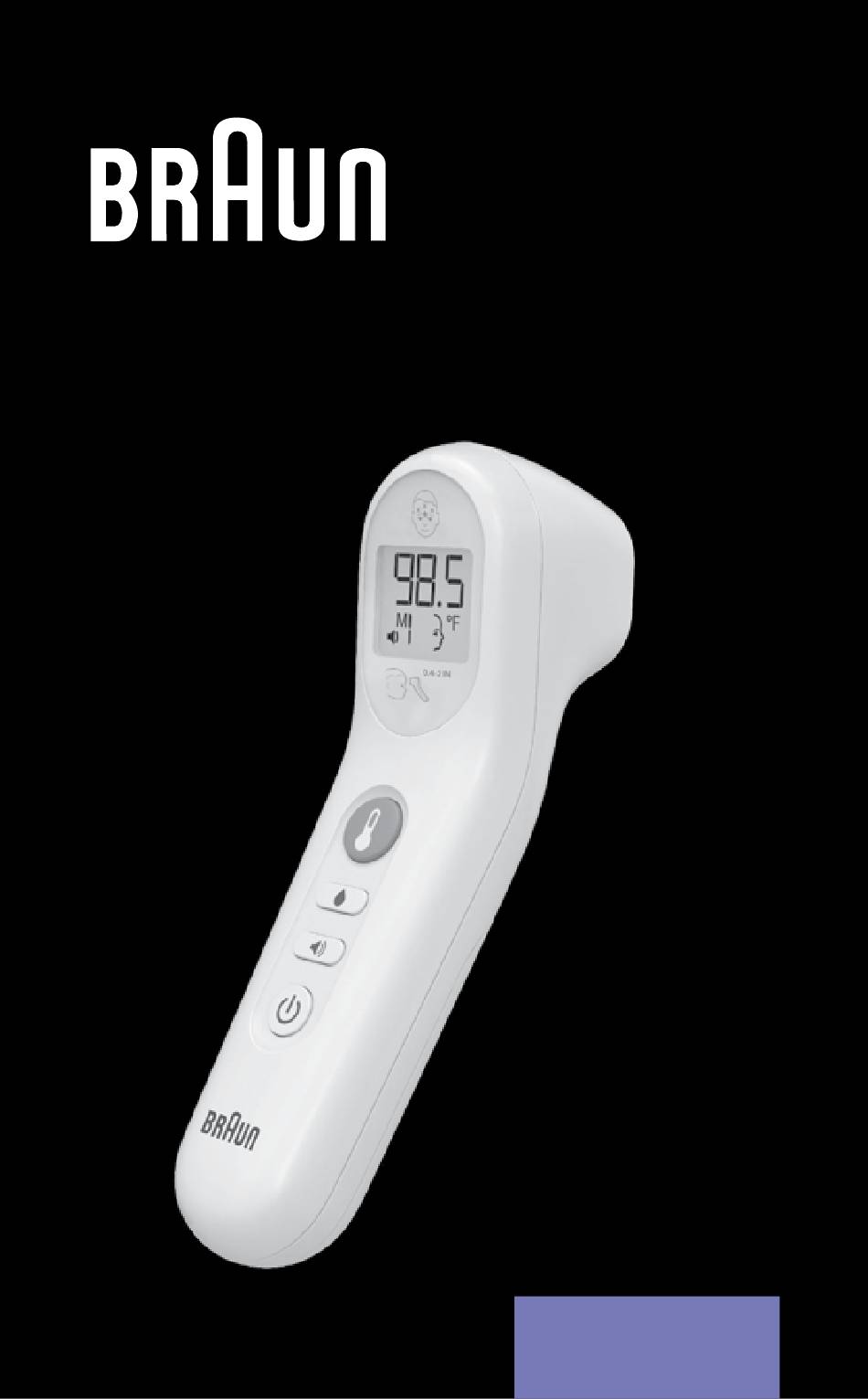

- Page 1 No touch 3-in-1 thermometer BNT100...
- Page 2 The Procter & Gamble Company or its affiliates. © 2021 All rights reserved. Manufactured by Kaz USA, Inc., a Helen of Troy Company 400 Donald Lynch Blvd., Suite 300, Marlborough, MA 01752 USA USA/MEX Patents/Patentes: www.kaz.com/patents/braun Made in China/Hecho en China 型号：BNT100CN 制造商：东莞市振海电子科技有限公司 BNT100CN...

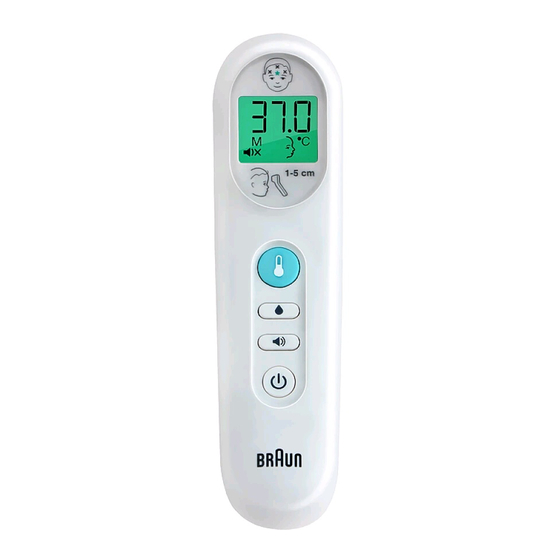

- Page 3 No touch thermometer *LCD icons Power button Speaker indicates sound on Scanner sound off Battery icon indicates, LCD screen* flashing = low, = empty Temperature button Face icon indicates thermometer is in human body temperature mode Battery door Droplet indicates device is in food and bath temperature mode Sound mode button Indicates the temperature...
- Page 4 Thank you for purchasing the Braun No touch thermometer (BNT100) . This thermometer is a high-quality product incorporating innovative technology and tested in accordance with international standards . This product can provide a stable, accurate oral equivalent reading with each measurement . The No touch thermometer performs a self-test every time it is switched on to always guarantee the accuracy of measurements .
- Page 5 DO NOT use the device if it is damaged/degraded/loosened in any way . The effects of degraded sensors and electrodes, or loosened electrodes, that can degrade performance or cause other problems . DO NOT perform service/maintenance while the thermometer is in use . Temperature elevation may signal a serious illness, especially in neonates and infants, or in adults who are old, frail, or have a weakened immune system .
-
Page 6: Accurate And Reliable
Helps minimize spreading of germs . Safe for use on children and adults . How does the Braun No touch thermometer work? The No touch thermometer measures infrared energy radiated from the skin at the center of the forehead just above the eyebrows . This captured energy is collected... -
Page 7: Temperature Taking Hints
Temperature taking hints It is important to know each individual’s normal temperature when they are well . This is the only way to accurately diagnose a fever . Take multiple readings when healthy to determine normal temperature . A child’s normal temperature can be as high as 99 .9°F (37 .7 °C) or as low as 97 .0°F (36 .1°C) . - Page 8 How to use your Braun No touch thermometer Note: The thermometer and Individual should be in the same ambient temperature for at least 30 minutes. Power on Press and release the power button once . Backlight will come on, the start-up sequence begins, and a beep will be heard .
-
Page 9: Read Temperature
Take temperature Press the temperature button to take a measurement . Device will take a reading and you will hear a beep(s) when reading is complete . Read temperature Remove the thermometer and read the temperature . High Fever Low temperature will display no backlight color . Yellow Normal temperature range will display a green Fever... - Page 10 Position Position thermometer 0 .4-2” (1- 5cm) away from food or bath water . Be certain to not aim at the sides of the container or bath tub but directly at the food or water . Aiming at the sides of the container will influence the reading .
-
Page 11: Changing The Sound Mode
Select which scale you want by pressing the speaker button again, , for 3 seconds . The display will stop toggling between º F and º C and will remain on the scale you selected . After 3 seconds, the device will automatically turn off . The selected scale will be displayed upon the next start up of the device . -
Page 12: Errors And Troubleshooting
Errors and troubleshooting Error message Situation Solution When the battery is running Replace batteries . low, the display flashes the low battery warning symbol; however, the device can still work until the battery life has 0% left . If the steady battery icon is Replace batteries . -
Page 13: Care And Cleaning
. The warranty becomes void if repairs are undertaken by unauthorized persons and if original Braun parts are not used . Calibration The thermometer is initially calibrated at the time of manufacture . -
Page 14: Product Specification
Product specification Type: No touch 3 in 1 thermometer (BNT100) Measuring range: Body: 34 . 0 °C – 43 . 0 °C (93 . 2 °F – 109 . 4 °F) Food/Bath: 0 °C – 100 . 0 °C (32 . 0 °F – 212 . 0 °F) - Page 15 This device conforms to the following standards: IEC 60601-1: Medical electrical equipment . General requirements for basic safety and essential performance . ASTM E1965-98 - Standard Specification for Infrared Thermometers for Intermittent Determination of Patient Temperature . ISO 80601-2-56 Particular requirements for basic safety and essential performance of clinical thermometers for body temperature measurement .
- Page 16 Please do not dispose of the product in the household waste at the end of its useful life . To protect the environment, dispose of empty batteries at appropriate collection sites according to national or local regulations . BNT100 BNT100 BNT100 BNT100...
- Page 17 Guidance and manufacturer's declaration RF wireless communication equipment immunity Test Maximum IMMUNITY Band Service Modulation Distance frequency power TEST LEVEL (V/m) (MHz) (MHz) Pulse modulation 380 - 390 TETRA 400 18 Hz GMRS 460, ± 5 kHz deviation FRS 460 1 kHz sine Pulse LTE Band...
- Page 19 Creative Department Artwork Specifications Brand: Braun Category: Thermometers BNT100US Model: Artwork Part #: A005359R0 Die Line Part #: Owner’s Manual Subject: Region: Flat Size: MM: W180 x H145 Folded Size: MM: W90 x H145 Scale: Material: 50# matte text Page count:...
