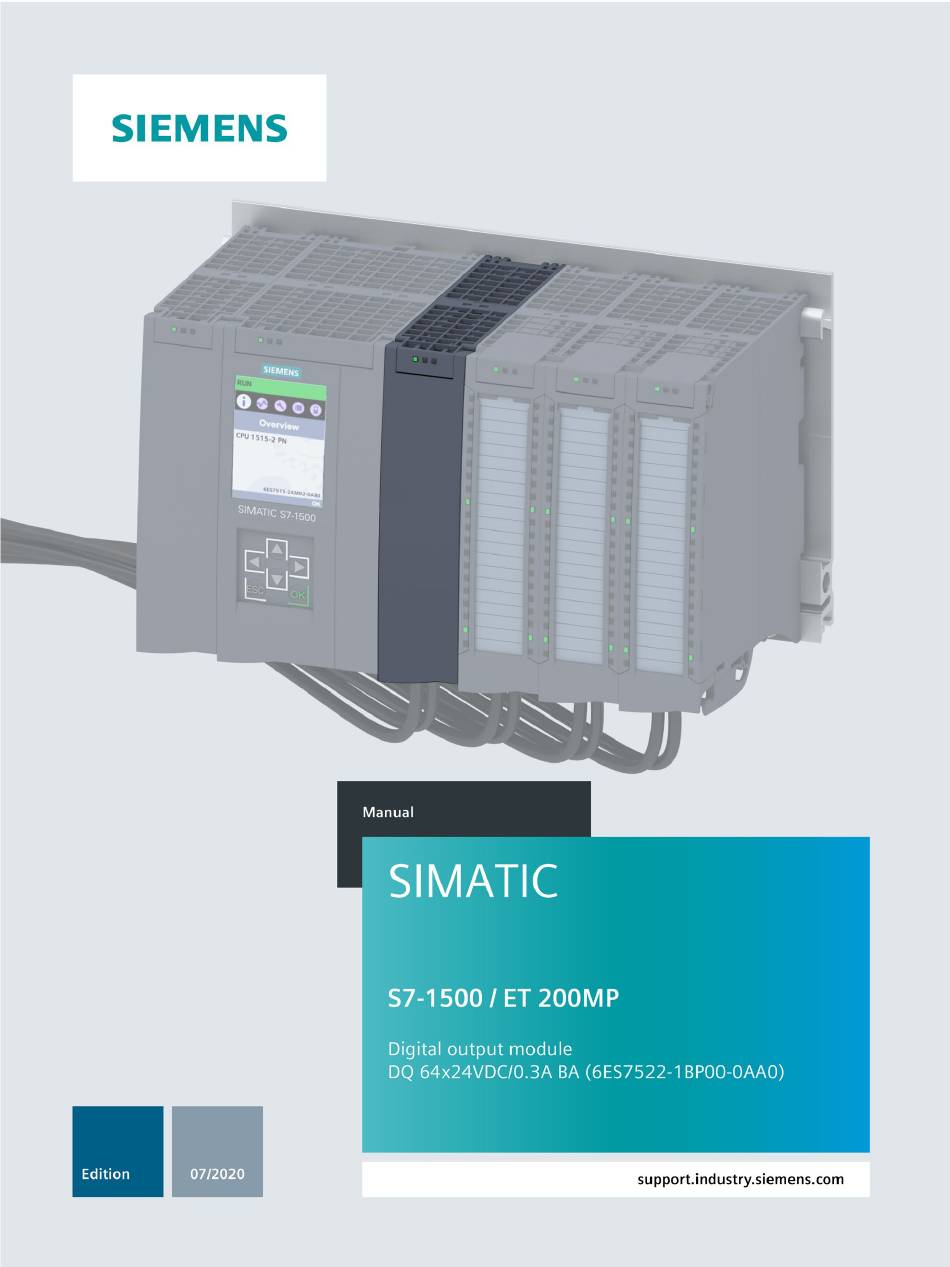

Siemens SIMATIC S7-1500 Manual

Digital output module
Hide thumbs Also See for SIMATIC S7-1500:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Siemens SIMATIC S7-1500

Summary of Contents for Siemens SIMATIC S7-1500

  • Page 2 Preface S7-1500 / ET 200MP Documentation Guide SIMATIC Product overview Wiring S7-1500/ET 200MP Digital output module DQ 64x24VDC/0.3A BA Address space (6ES7522-1BP00-0AA0) Diagnostics alarms Equipment Manual Technical specifications Dimensional drawing 07/2020 A5E48024569-AA...
  • Page 3 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 4: Preface

    Siemens' products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customers' exposure to cyber threats.
  • Page 5 We are liable for the product described, including the open-source software contained in it, pursuant to the conditions applicable to the product. Siemens accepts no liability for the use of the open source software over and above the intended program sequence, or for any faults caused by modifications to the software.

  • Page 6: Table Of Contents

    Table of contents Preface ..............................3 S7-1500 / ET 200MP Documentation Guide ................... 6 Product overview ........................... 8 Properties ..........................8 Wiring ..............................10 Wiring and block diagram ....................10 Terminal assignment X10 and X11..................11 Connecting a module with a connection module ..............14 Wiring of the module ......................

  • Page 7: S7-1500 / Et 200Mp Documentation Guide

    This arrangement enables you to access the specific content you require. Basic information The System Manual and Getting Started describe in detail the configuration, installation, wiring and commissioning of the SIMATIC S7-1500 and ET 200MP systems. The STEP 7 online help supports you in the configuration and programming. Device information Product manuals contain a compact description of the module-specific information, such as properties, wiring diagrams, characteristics and technical specifications.
  • Page 8 S7-1500 / ET 200MP Documentation Guide Manual Collection S7-1500/ET 200MP The Manual Collection contains the complete documentation on the SIMATIC S7-1500 automation system and the ET 200MP distributed I/O system gathered together in one file. You can find the Manual Collection on the Internet (https://support.industry.siemens.com/cs/ww/en/view/86140384).

  • Page 9: Product Overview

    Product overview Properties Article number 6ES7522-1BP00-0AA0 View of the module Figure 2-1 View of the DQ 64x24VDC/0.3A BA module Properties The digital module has the following technical properties: • 64 digital outputs, electrically isolated in 4 groups of 16 – P switching (sourcing) •...
  • Page 10 The following accessories are supplied with the module and can be ordered as spare parts: • U connector • Universal front door with the article number: 6ES7 591-8AA00-0AA0 You can find additional information in the system manual S7-1500/ET 200MP (https://support.industry.siemens.com/cs/ww/en/view/59191792). Other components The following must be ordered separately: • SIMATIC TOP connect connection module •...

  • Page 11: Wiring

    Wiring Wiring and block diagram This section contains the block diagram of the module and the terminal assignment. Wiring and block diagram The following figure shows the terminal assignment and the assignment of the channels. • Outputs: Channel 0 to 31 to connector X10. •...

  • Page 12: Terminal Assignment X10 And X11

    Wiring 3.2 Terminal assignment X10 and X11. Terminal assignment X10 and X11. The following figure shows the assignment of the channels to the addresses. Figure 3-2 Front view of the module without front door Digital output module DQ 64x24VDC/0.3A BA (6ES7522-1BP00-0AA0) Equipment Manual, 07/2020, A5E48024569-AA...
  • Page 13 Wiring 3.2 Terminal assignment X10 and X11. Terminal and address assignment For connecting actuators, we recommend using the SIMATIC TOP connect pre-assembled connecting cables and SIMATIC TOP connect connection modules. However, if you choose another wiring option, you will need the following tables. Table 3- 1 Assignment for connector X10 of the module Assignment for outputs to X10...
  • Page 14 Wiring 3.2 Terminal assignment X10 and X11. Table 3- 2 Assignment for the connector X11 of the module Assignment for outputs to X11 Terminal Channel Address Terminal Channel Address Channel 32 x+4.0 Channel 48 x+6.0 Channel 33 x+4.1 Channel 49 x+6.1 Channel 34 x+4.2...

  • Page 15: Connecting A Module With A Connection Module

    You can find additional information on the components of the SIMATIC TOP connect system cabling, e.g. for connecting connection modules, in the equipment manual SIMATIC TOP connect for S7-1500 and ET 200MP (https://support.industry.siemens.com/cs/ww/en/view/95924607). Note Common supply If you use the listed SIMATIC TOP connect connection modules, then all 32 channels of a connection module have a common supply.

  • Page 16: Wiring Of The Module

    We recommend you use the TIA Selection Tool for planning your project. The TIA Selection Tool is available free of charge as a desktop version for download or as a cloud version, refer to the Internet (https://new.siemens.com/global/en/products/automation/topic-areas/tia/tia- selection-tool.html). Wiring of the module Requirement •...
  • Page 17 SIMATIC TOP connect connection module. Additional information You can find out how to wire the SIMATIC TOP connect connection module in the equipment manual SIMATIC TOP connect for S7-1500 and ET 200MP (https://support.industry.siemens.com/cs/ww/en/view/95924607). Digital output module DQ 64x24VDC/0.3A BA (6ES7522-1BP00-0AA0) Equipment Manual, 07/2020, A5E48024569-AA...

  • Page 18: Fuse

    Wiring 3.5 Fuse Fuse Miniature circuit breaker The supply lines are to be protected with a 6 A miniature circuit breaker with tripping characteristic B. Digital output module DQ 64x24VDC/0.3A BA (6ES7522-1BP00-0AA0) Equipment Manual, 07/2020, A5E48024569-AA...

  • Page 19: Address Space

    Address space The module can be configured in various ways in STEP 7. Depending on the configuration, additional/different addresses are assigned in the process image output/input. Configuration options of DQ 64x24VDC/0.3A BA You can configure the module with STEP 7 (TIA Portal) or with a GSD file. When you configure the module by means of the GSD file, the configurations are available under different short designations/module names.
  • Page 20 Address space Address space for configuration as 1 x 64-channel DQ 64x24VDC/0.3A BA The figure below shows the address space assignment for configuration as a 1 x 64-channel module. You can freely assign the start address for the module. The addresses of the channels are derived from the start address.
  • Page 21 Address space Address space for configuration as 8 x 8-channel DQ 64x24VDC/0.3A BA S For the configuration as an 8 x 8-channel module, the channels of the module are divided into multiple submodules. The submodules can be assigned to different IO controllers when the module is used in a shared device.
  • Page 22 Address space Address space for configuration as 1 x 64-channel DQ 64x24VDC/0.3A BA MSO For the configuration as a 1 x 64-channel module (module-internal Shared Output, MSO), channels 0 to 63 of the module are copied to multiple submodules. Channels 0 to 63 are then available with identical values in various submodules.
  • Page 23 Address space The figure below shows the assignment of the address space for submodules 1 and 2. Figure 4-3 Address space for configuration as 1 x 64-channel DQ 64x24VDC/0.3A BA MSO with value status Digital output module DQ 64x24VDC/0.3A BA (6ES7522-1BP00-0AA0) Equipment Manual, 07/2020, A5E48024569-AA...
  • Page 24 Address space The figure below shows the assignment of the address space with submodules 3 and 4. Figure 4-4 Address space for configuration as 1 x 64-channel DQ 64x24VDC/0.3A BA MSO with value status Digital output module DQ 64x24VDC/0.3A BA (6ES7522-1BP00-0AA0) Equipment Manual, 07/2020, A5E48024569-AA...
  • Page 25 Address space Reference You can find information on the Shared Input/Output (MSI/MSO) function in the section Module-Internal Shared Input/Output (MSI/MSO) of the PROFINET with STEP 7 V16 (https://support.industry.siemens.com/cs/ww/en/view/49948856) function manual. Digital output module DQ 64x24VDC/0.3A BA (6ES7522-1BP00-0AA0) Equipment Manual, 07/2020, A5E48024569-AA...

  • Page 26: Diagnostics Alarms

    Diagnostics alarms The module has no selectable diagnostics. Diagnostics alarms, for example, cannot be output with STEP 7 (TIA Portal). Status and error displays LED displays The figure below shows the LED displays (status and error displays) of DQ 64x24VDC/0.3A BA. Figure 5-1 LED displays of the module DQ 64x24VDC/0.3A BA Digital output module DQ 64x24VDC/0.3A BA (6ES7522-1BP00-0AA0)
  • Page 27 Diagnostics alarms 5.1 Status and error displays Meaning of the LED displays The tables below explain the meaning of the status and error displays. LED RUN/ERROR Table 5- 1 RUN/ERROR status and error displays Meaning Remedy ERROR Voltage missing or too low at backplane •...

  • Page 28: Technical Specifications

    The following table shows the technical specifications as of 07/2020. You can find a data sheet including daily updated technical specifications on the Internet (https://support.industry.siemens.com/cs/ww/en/ps/td). Enter the article number or the short designation of the module on the website. Article number...
  • Page 29 Technical specifications Article number 6ES7522-1BP00-0AA0 Supply voltage Rated value (DC) 24 V permissible range, lower limit (DC) 19.2 V permissible range, upper limit (DC) 28.8 V Reverse polarity protection Yes; through internal protection with 7 A per group Input current Current consumption, max.
  • Page 30 Technical specifications Article number 6ES7522-1BP00-0AA0 Parallel switching of two outputs • for logic links • for uprating • for redundant control of a load Switching frequency 100 Hz • with resistive load, max. 0.5 Hz; According to IEC 60947-5-1, DC-13 •...
  • Page 31 Technical specifications Article number 6ES7522-1BP00-0AA0 Diagnostics indication LED Yes; green LED • RUN LED Yes; red LED • ERROR LED • MAINT LED Monitoring of the supply voltage (PWR-LED) Yes; via SIMATIC TOP connect connection module • Yes; via SIMATIC TOP connect connection module •...

  • Page 32: Dimensional Drawing

    Dimensional drawing The dimensional drawing of the module on the mounting rail, as well as a dimensional drawing with open front cover, are provided in this appendix. Always observe the specified dimensions for installation in cabinets, control rooms, etc. Figure A-1 Dimensional drawing of the DQ 64x24VDC/0.3A BA module Digital output module DQ 64x24VDC/0.3A BA (6ES7522-1BP00-0AA0) Equipment Manual, 07/2020, A5E48024569-AA...
  • Page 33 Dimensional drawing Figure A-2 Dimension drawing of the DQ 64x24VDC/0.3A BA module, side view with open front cover Digital output module DQ 64x24VDC/0.3A BA (6ES7522-1BP00-0AA0) Equipment Manual, 07/2020, A5E48024569-AA...
