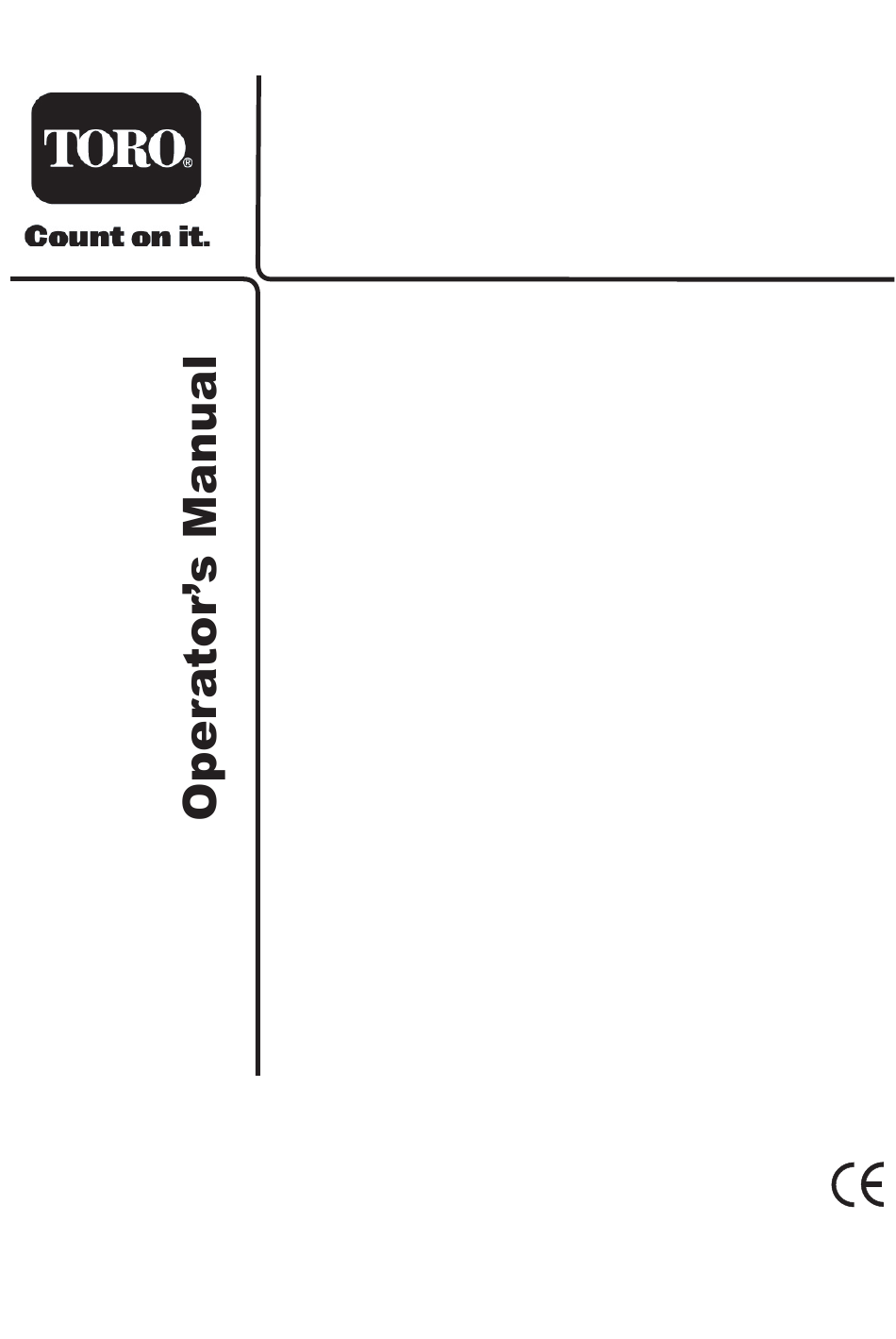

- Page 1 Part No. 111-3933 Rev A TM5490 and 7490 Trailed Gang Mower Model No: 02700-Serial No. from 311000001 Model No: 02701-Serial No. from 311000001 Original Instructions (EN) Date: 30.11.10...
- Page 3 ATTENTION THIS SYMBOL MEANS BE ALERT! YOUR SAFETY IS INVOLVED READ THIS MANUAL BEFORE USING THE TM5490 AND TM7490 MOWERS. IT IS ESSENTIAL THAT OPERATORS STUDY IT FOR THEIR OWN SAFETY. ALL OPERATORS SHOULD SEEK AND OBTAIN PROFESSIONAL AND PRACTICAL INSTRUCTIONS ON THE SAFE USE OF THE MOWER.
-
Page 5: Table Of Contents
Running Gear 1.21 Cutterheads 1.21 Weight and dimensions 1.22 TM5490 Delivery Check List 1.23 TM5490 General Assembly MK3 Cutterheads 1.24 ASSEMBLING THE MOWER - TM5490 1.25 - 1.26 TM7490 Delivery Check List 1.27 TM7490 General Assembly MK3 Cutterheads 1.28 ASSEMBLING THE MOWER - TM7490 1.29 - 1.32... - Page 6 GRASS CUTTING FAULTS 1.73 - 1.74 TROUBLE SHOOTING 1.75 - 1.77 CONNECTION DIAGRAM 1.78 TM5490 HYDRAULIC CIRCUIT DIAGRAM / PARTS LIST 1.79 - 1.80 TM5490 ELECTRIC HYDRAULIC CIRCUIT DIAGRAM / PARTS 1.81 - 1.82 LIST TM7490 HYDRAULIC CIRCUIT DIAGRAM / PARTS LIST 1.83 - 1.84...
-
Page 7: Safety Precautions
SAFETY PRECAUTIONS READ THIS MANUAL BEFORE USING THE TRAILED GANG MOWER, IT IS ESSENTIAL THAT OPERATORS STUDY IT FOR THEIR OWN SAFETY. THE FOLLOWING PRECAUTIONS MUST BE TAKEN TO HELP PREVENT ACCIDENTS. A CAREFUL OPERATOR WHO USES COMMON SENSE IS THE SAFEST OPERATOR. - Page 8 In the event of a breakaway cable being activated ensure that there is no interference on the brake coupling mechanism. Replace damaged or worn brake coupling mechanism components with the correct Toro service parts. Never make an unauthorised modification to any part of the machine or brake coupling mechanism.
- Page 9 SAFETY PRECAUTIONS Preparation continued Check the mower hydraulic system, particularly the hydraulic hoses, fittings and hose supports. Worn, crushed or damaged hoses can burst, with risks to health and damage to the machine and surrounding turf areas. After refuelling and adding oil to the hydraulic oil tank ensure that the caps are replaced securely. Check that all linkages, connections and pivot nuts are secure and that wheel nuts are torqued correctly, refer to SPECIFICATIONS.
-
Page 10: Slopes
1.10 SAFETY PRECAUTIONS 1.10 Operation continued Disengage the PTO drive, change into neutral, set the tractor parking brake, stop the engine and remove ignition key. Block the mower suddenly and operate the mower handbrake before performing any service or maintenance procedure: - Before releasing blockages. -
Page 11: Handling And Storage Of Fluids
1.11 SAFETY PRECAUTIONS 1.11 Handling and Storage of Fluids Hydraulic Oil - Avoid contact with eyes and prolonged contact with skin. - Protective goggles should be worn when pouring. - Use of gloves or barrier cream is recommended. - Wash hands thoroughly after contact. - Store under cover, away from heat and sources of ignition. -
Page 12: Transport Speed
1.12 SAFETY PRECAUTIONS 1.12 Maintenance and Storage continued When disconnecting the machine from the tractor, ensure that: - The PTO drive is disengaged, the tractor parking brake is applied, the engine is stopped and the ignition key is removed. - The mower handbrake is applied. - The jockey wheel jack is in a safe working condition and securely adjusted to support the front of the machine. -
Page 13: Decals 1.13
32 PSI A) Recommended tyre pressure 214 Nm B) Recommended wheel nut torque Decal - Manual Control Lever (TM5490 / TM7490) Part No: 66-13-013 (1) Location: Adjacent to control levers A) Override lift control B) LH wing arm lift control... - Page 14 I) Override lift control Decal - Serial Number Location: Front and side of bulkhead SPELLBROOK, BISHOP'S STORTFORD, SPELLBROOK, BISHOP'S STORTFORD, HERTS. CM23 4BU. ENGLAND. HERTS. CM23 4BU. ENGLAND. TM5490 5 GANG TM7490 7 GANG TRAILED MOWER TRAILED MOWER 1110 1110 Code...
- Page 15 Part No:66-13-015 (2) Part No:66-13-016 (2) Location: Pump mounting plate - front face A) Minimum and maximum drawbar loads 1) TM7490 2) TM5490 Decal - Backlap Controls Part No:767811 (0) Location: Top of backlap cover - read from front of machine...
- Page 16 1.16 SAFETY PRECAUTIONS 1.16 Decals continued Decal - Stored Energy Device Part No:749804 (0) Location: Underside of each wing arm A) Beware of stored energy device B) Keep bystanders clear Decal - Warning - Towing/Parking Part No: 111-3910 (A) Location: Pump cover A) Warning B) Read and understand the Operators Manual...
-
Page 17: Ec Conformity Information
1.17 Noise Levels The operator ear noise level for the Toro Trailed Gang Mowers is approximately 87.5dB(A) Led. The operator ear noise level stated above refers only to the noise level generated by the mowing equipment. This measurement was taken outside the tractor cab at a point close to the rear screen and in line with the operator ear position. -
Page 18: Introduction
Toro cylinder mowers are precision built machines designed solely for all weather cutting, a high standard of fin- ish and long life within the limitations stated in this manual. Use in any other way is considered as contrary to the intended use. -
Page 19: Specifications 1.19
ISO viscosity grade ISO viscosity grade 46 hydraulic oil 68 hydraulic oil Should you be in any doubt please contact your Toro dealer. Using incorrect grades will cause premature wear of hydraulic components and invalidate warranty. PTO Gearbox Input: 540 rpm 1.3/8” 6 spline PTO shaft, anti-clockwise rotation (Looking on end of... -
Page 20: Cutterhead Drive System
1 ‘Override’ remote control switches Relief Valve: 115 bar (1668 psi) Weight Transfer: Variable hydraulic applied weight transfer acting on all cutterheads Tractor Minimum Power: 45 bhp (TM5490 / TM7490) PTO: Rear 540 rpm 1.3/8” - 6 spline Drawbar: Ring-hitch... -
Page 21: Running Gear
Drum type, cable operated, hydraulic controlled or optional mechanical overrun brakes with integral lever operated handbrake Maximum Speed: Road traffic regulations limit the maximum speed of these machines to 40 km/hr (25 mph) TM5490 / TM7490 Cutterheads MK3 200 mm Cutterhead MK3 254 mm Cutterhead Cutting Width: 762 mm (30˝) -
Page 22: Weight And Dimensions
1.22 SPECIFICATIONS 1.22 Weight and Dimensions TM5490 Overall Working Width: 3680 mm (144.9˝) Mowing Width: 3500 mm (137.8˝) Transport Width: 2120 mm (83.5˝) Overall Length: 3600 mm (141.7˝) Transport Height: 1610 mm (63.4˝) Approx. Working Weight: 1385 kg (3053 lb) Drawbar Weight (Transport): 50 kg (110.2 lb) -
Page 23: Tm5490 Delivery Check List
TM5490 DELIVERY CHECK LIST 1.23 1.23 ITEM NO. DESCRIPTION PART NO. QTY ITEM NOTE ITEM No. DESCRIPTION PART NO. ITEM NOTE DEFLECTOR-REAR 876040W BRACKET-DEFLECTOR, LH 876041 BRACKET-DEFLECTOR, RH 876042 BOLT-CARR [M10*55 GRADE 4.6] ZBK1J055U NUT-HEX, NYLOC [M10] ZNN1J000U WASHER-PLAIN [M10 HEAVY]... -
Page 24: Tm5490 General Assembly Mk3 Cutterheads
TM5490 GENERAL ASSEMBLY 1.24 1.24 MK3 CUTTERHEADS Cutterhead Cutterhead Type Position Left Hand (with bump stop and roller plate / box) Left Hand (with deflector) Left Hand Right Hand (with deflector) Right Hand (with bump stop and roller plate / box) - Page 25 1.25 1.25 ASSEMBLING THE MOWER - TM5490 Assembling the Mower WARNING - PREVENT ACCIDENTS: Take care to avoid the sharp edges of the cutting cyl- inder and bottom blade when lifting or working on the cutterhead. The cutterhead is heavy - It is recommended...
-
Page 26: Assembling The Mower - Tm5490
1.26 1.26 ASSEMBLING THE MOWER - TM5490 Assembling the Mower continued Note: Cutterhead 3 - adjusters angled to rear 6. Modify the cylinder adjustment handwheel as shown. assemblies (Item 8) on cutterhead 3 to the angled back position. Remove the nuts, bolts and washers from alternative hole positions ‘A’. -
Page 27: Tm7490 Delivery Check List
TM7490 DELIVERY CHECK LIST 1.27 1.27 ITEM NO. DESCRIPTION PART NO. QTY ITEM NOTE ITEM No. DESCRIPTION PART NO. DEFLECTOR-REAR 876040W BRACKET-DEFLECTOR, LH 876041 BRACKET-DEFLECTOR, RH 876042 BOLT-CARR [M10*55 GRADE 4.6] ZBK1J055U NUT-HEX, NYLOC [M10] ZNN1J000U WASHER-PLAIN [M10 HEAVY] ZWQ1J000U SCREW-HH [M5*16] ZDH1E016U WASHER [3/16*1/2*17G]... -
Page 28: Tm7490 General Assembly Mk3 Cutterheads
TM7490 GENERAL ASSEMBLY 1.28 1.28 MK3 CUTTERHEADS Cutterhead Cutterhead Type Position Left Hand (with rear deflector and bump stop) Left Hand (with bump stop and roller plate / box) Left Hand (with deflector) Left Hand Right Hand (with deflector) Right Hand (with bump stop and roller plate / box) Right Hand (with rear deflector and bump stop) 254mm Cutterhead:... -
Page 29: Assembling The Mower - Tm7490 1.29
1.29 1.29 ASSEMBLING THE MOWER - TM7490 Assembling the Mower WARNING - PREVENT ACCIDENTS : Take care to avoid the sharp edges of the cutting cyl- inder and bottom blade when lifting or working on the cutterhead. The cutterhead is heavy - It is recommended that suitable lifting equipment be used when removing the cutterhead from the carton and during installation. - Page 30 1.30 1.30 ASSEMBLING THE MOWER - TM7490 Assembling the Mower continued 7. Modify cutterheads 5, 6 and 7 from left hand to right hand configuration. Remove protective cover (Item 5) and discard. Remove circlip (Item 7). Remove counterweight (Item 6) together with ‘O’...
- Page 31 1.31 1.31 ASSEMBLING THE MOWER - TM7490 Assembling the Mower continued C) Align and mesh the motor shaft spline with the coupling on the cutting cylinder. Ensure that the motor is fully located into the bearing housing. If necessary, gently tap the motor into position with a SOFT mallet, until it butts up to the bearing housing.
- Page 32 1.32 1.32 ASSEMBLING THE MOWER Assembling the Mower continued ITEM NO. DESCRIPTION PART NO. QTY ITEM NOTE ITEM No. DESCRIPTION PART NO. ITEM NOTE MOTOR SCREW SPRING WASHER WASHER PLUG - PROTECTIVE COVER (REMOVE AND DISCARD) COUNTER WEIGHT CIRCLIP CYLINDER ADJUSTMENT HAND WHEEL ASSEMBLY ‘O’...
-
Page 33: Commissioning The Mower 1.33
1.33 1.33 COMMISSIONING THE MOWER Commissioning the Mower (Mechanical Control) Check oil level: Remove the filler cap on top of the hydraulic tank. Fill the hydraulic tank with the correct grade of hydraulic oil before use, refer to SPECIFICATIONS - HYDRAULIC SYSTEM, to the upper black line on the oil level sight gauge. - Page 34 1.34 1.34 COMMISSIONING THE MOWER Commissioning the Mower continued Check that the backlap control valve is locked in the “Normal Operation” position: Connect up the mower to a suitable tractor. IMPORTANT: PREVENT DAMAGE - Refer to ATTACHING THE MOWER TO THE TRAC- TOR and follow the instructions given, other- wise damage could result.
- Page 35 1.35 1.35 COMMISSIONING THE MOWER Commissioning the Mower continued After making final adjustments, operate each cir- cuit in turn to eliminate any air from the hydraulic system and closely observe the movement of the hydraulic hoses. Ensure that the motor hoses move freely without impeding the movement of the cut- terheads through the full range of travel.
- Page 36 1.36 1.36 COMMISSIONING THE MOWER Commissioning the Mower continued Operate the Lift/Lower control switches in turn to lift the left hand wing cutterhead, the centre three cutterheads and the right hand wing cutterhead. Carry out this exercise with care and observe the movement of the cutterheads to ensure that they are not impeded by poor routing of the hydraulic hoses.
- Page 37 1.37 1.37 COMMISSIONING THE MOWER Commissioning the Mower continued Add hydraulic oil: With all cutterheads on the ground, disengage the P.T.O. and stop the trac- tor engine. Initial operation of the mower unit will drain oil from the hydraulic tank to fill hoses, hydraulic cylinders, etc.
- Page 38 1.38 1.38 COMMISSIONING THE MOWER Commissioning the Mower continued Lower the handbrake lever to its lowest position to release the brakes. Perform the following road tests: WARNING: PREVENT ACCIDENTS - ALWAYS perform road tests taking due consideration of other road users. Tests should be performed on a private road where possible.
- Page 39 45 BHP (TM5490) and 70 BHP (TM7490). They must also be equipped with a ring-hitch (automatic pick up hitch) and a 540 rpm, rear P.T.O.
- Page 40 1.40 1.40 PREPARING THE TRACTOR Preparing the Tractor continued The mower electric remote control system incorpo- rates a cigar lighter plug connector and the lighting system incorporates a conventional 7 pin plug con- nector. The tractor must be equipped with compat- ible cigar lighter and lighting sockets.
-
Page 41: Attaching The Mower To The Tractor 1.41
1.41 1.41 ATTACHING THE MOWER TO THE TRACTOR Attaching the Mower to the Tractor Prepare the tractor: Before attaching the mower to the tractor ensure that the tractor is properly prepared, refer to PREPARING THE TRAC- Mower Front Plate TOR. Drawbar Tow Hitch Assemble the mower tow-hitch to the tractor:... - Page 42 1.42 1.42 ATTACHING THE MOWER TO THE TRACTOR Attaching the Mower to the Tractor continued WARNING - PREVENT ACCIDENTS: Do not use a damaged breakaway cable. Discard and replace before using the mower. Release the handbrake: Carefully operate the handbrake to its lowest position. Assemble the P.T.O.
- Page 43 1.43 1.43 ATTACHING THE MOWER TO THE TRACTOR Attaching the Mower to the Tractor continued Check and adjust the P.T.O. operating length: Check the minimum P.T.O. operating shaft length (maximum compressed condition). It is essential that the P.T.O. shaft is not fitted at this stage. Set the tractor/mower combination with the tractor straight ahead on a steep upward slope, with the mower on level ground as shown.
- Page 44 1.44 1.44 ATTACHING THE MOWER TO THE TRACTOR Attaching the Mower to the Tractor Dia 25mm continued one wall only Assemble the P.T.O. shaft to tractor / mower and check that shaft does not fully compress. Remove chocks from wheels. Check the maximum P.T.O.
-
Page 45: Disconnecting The Mower From The Tractor 1.45
1.45 1.45 DISCONNECTING THE MOWER TO THE TRACTOR Disconnecting the Mower from the Tractor WARNING: PREVENT ACCIDENTS - Before attempting to disconnect the mower from the tractor always ensure that: The tractor and the mower are on level ground. The tractor parking brake is applied, the P.T.O. -
Page 46: Operating The Mower 1.46
1.46 OPERATING THE MOWER 1.46 Disconnecting the Mower from the Tractor continued Move the tractor away from the mower: Check that there are no obstructions and that all connec- tions to the mower have been disconnected before driving the tractor away from the mower. Safety WARNING: PREVENT ACCIDENTS - Before operating the mower it is essential that:... -
Page 47: Cutterhead Position Controls
1.47 OPERATING THE MOWER 1.47 Cutterhead Position Controls Check hydraulic system: Check and note any hydraulic leaks, keeping well clear of the rotating cutting cylinders. Disengage the P.T.O. and stop the tractor engine before attempting to tighten loose hydraulic unions. Operate the cutterhead lift/lower controls: Note that there is one short “Override”... -
Page 48: Cutterhead Position Controls (Electrical Control)
1.48 OPERATING THE MOWER 1.48 Cutterhead Position Controls (Electrical Control) The remote control cutterhead position controls include an override control switch and three indi- vidual lift/lower control switches. Override control switch: Push the override con- trol switch (A) away to lower cutterheads simul- taneously and pull backwards to raise cutterheads simultaneously. -
Page 49: Cutterhead Drive Direction Control (Electrical Control) 1.49
1.49 OPERATING THE MOWER 1.49 Cutterhead Drive Direction Control (Electrical Control) Note: The cutter head drive switch (E) will only operate when the override control switch (A) is in the down/cut position. Forward rotation cutterhead drive engagement: Operate the cutterhead drive switch to the ‘For- FORWARD ward’... - Page 50 1.50 OPERATING THE MOWER 1.50 Cutterhead Drive Direction Control (Electrical Control) continued WARNING: PREVENT ACCIDENTS - For full safety isolation disengage the tractor PTO drive and lower the cutterheads to the ground. WARNING: PREVENT ACCIDENTS - For full safety isolation disengage the tractor PTO drive and lower the cutterheads to the ground.
-
Page 51: Cutterhead Setup
1.51 OPERATING THE MOWER 1.51 Cutterhead Drive Direction Control (Electrical Control) continued 8. Return the manual override control valve screw to its original position. On doing this the cutterhead arms will fully engage with the transport latches. 9. Engage all transport latch safety locks as shown. -
Page 52: General 1.52
1.52 OPERATING THE MOWER 1.52 General 1. Mount the tractor, start the engine and set the engine speed at a fast idle. WARNING: PREVENT ACCIDENTS - Ensure that the immediate area is entirely clear of by- standers and obstructions which could interfere with the machine, before engaging the rear P.T.O. - Page 53 1.53 OPERATING THE MOWER 1.53 General (Electric Lift Only) Override control: With EMERGENCY STOP ONLY the cutterheads on the ground set all the Lift/ STOP TRACTOR PTO FOR FULL SAFETY ISOLATION Lower control switches to the ‘Down/Cut’ posi- tion and operate the override control switch to the ‘Neutral’...
-
Page 54: Unblocking The Cutting Cylinders
1.54 OPERATING THE MOWER 1.54 Unblocking the Cutting Cylinders WARNING: PREVENT ACCIDENTS - Before attempting to clear any blockage from the cut- ting cylinders on this machines ensure, all of the following: Stop the machine on level ground. Apply the parking brake and disengage all drives. -
Page 55: Cutterhead General Information
1.55 OPERATING THE MOWER 1.55 Cutterhead General Information The mower is designed to be used with MK3 200mm (8˝) fixed or floating cutterheads or MK3 254mm (10˝) fixed cutterheads. It is essential that the relationship between the bottom blades and the cutting cylinders are kept in good ad- justment and that cutting edges are kept sharp to ensure good cutting performance, minimum power consump- tion and prolonged life for the cutting edges, refer to MAINTENANCE - CUTTERHEADS. -
Page 56: Mk3 200Mm (8") Fixed Cutterhead
1.56 OPERATING THE MOWER 1.56 MK3 200 mm (8˝) Fixed Cutterhead Pivot knuckle fixing: Secure the bolt in the front “fixed” hole position ‘A’ as shown. Height of cut adjustment: The height of cut is gauged by the position of the rear roller. Turn the adjusting nut assembly ‘B’... -
Page 57: General Operating Hints 1.57
1.57 OPERATING THE MOWER 1.57 General Operating Hints 1. The rotational speed of the cutting cylinders should always be kept as high as possible in order to maintain the highest quality of cut. This in turn requires that the tractor engine speed be kept as high as possible without exceeding 540 rpm P.T.O. - Page 58 1.58 OPERATING THE MOWER 1.58 General Operating Hints continued WARNING: PREVENT ACCIDENTS - Take care when travelling over obstacles such as roadside kerbs. ALWAYS travel at slow speed over obstacles to prevent damage to the tyres and wheels. Ensure that tyres are inflated to the recommended pressures.
- Page 59 Correct servicing will prolong the working life of the machine and safeguard the “Toro warranty”. Always fit genuine ‘Toro service parts’ as these are accu- rately matched to the required duty. Dirt and contamination are the enemies of any hydraulic system.
- Page 60 1.60 MAINTENANCE 1.60 Maintenance continued WARNING: PREVENT ACCIDENTS - Use hazardous substances carefully. The following fluids are identified as being hazardous; Substances Assessed risk Diesel oil Lubricating oil Hydraulic oil Grease When using any of the above fluids it is recom- mended that eye protection and gloves are worn and that care is taken to prevent spillage.
- Page 61 Change the hydraulic oil return filter. Remove the top of the return filter assembly. Withdraw the filter element canister and discard. Refit a new filter canister (Toro part No: 65-06-483) and replace the screw top taking care to ensure that the ‘O’ ring seal is correctly located.
-
Page 62: Maintenance 1.59
This provides visible evidence that the roller seals have been purged of grass and debris etc. and will ensure maximum working life. TM5490 Note: This grease point is only applicable when an overrun drawbar is fitted. -
Page 63: Daily And Before Use 1.63
1.63 MAINTENANCE 1.63 Daily And Before Use Check hydraulic oil level: Check the hydraulic oil level in the sight glass with all cutterheads lowered to the ground. The sight glass is located at the front of the hydraulic reservoir beneath the pump cover. If the level is below the top line, top up with the correct grade of hydraulic oil as necessary, refer to SPECIFICATIONS. -
Page 64: Every 50 Hours 1.64
1.64 MAINTENANCE 1.64 Daily And Before Use continued Check towing eye: Inspect the towing eye for wear. Replace the towing eye when worn to ¾ of its original thickness. Lubricating the towing eye may extend the life of the eye. Lubricate the P.T.O shaft: Remove the P.T.O. -
Page 65: Every 250 Hours 1.65
1.65 MAINTENANCE 1.65 Every 50 Hours continued Note: The roller should still rotate freely after adjustment. Overtightening of nuts ‘A’ could lead to premature bearing failure. Check wheel nut torque: Wheel nut torque setting - 224 Nm. Lubricate all grease points: Clean and grease all grease points, including hubs, tow hitch and pivot points with a good compound of the grade speci- fied, refer to SPECIFICATIONS. -
Page 66: Every 500 Hours 1.66
Inspect the brakes shoes for wear: Remove the wheel hubs and inspect the brake shoes. The shoes must be replaced if the lining thickness is less than 1.5mm. Use genuine Toro replacement parts. Do not reline brake shoes. Inspect the brake wedges: Check that the brake 1. -
Page 67: End Of Season / Winter Storage
1.67 MAINTENANCE 1.67 Every 500 Hours Replace all brake cables. Service the pump gearbox: Drain the pump gear- 1. Filler plug / breather box oil by removing the drain plug. Remove the 2. Dipstick 3. Drain plug dipstick. When the gearbox is fully drained, replace the drain plug. -
Page 68: Cutterhead Cylinder To Bottom Blade Adjustment 1.68
1.68 MAINTENANCE 1.68 Cutterhead Cylinder to Bottom Blade Adjustment IMPORTANT: PREVENT DAMAGE - It is essential that the relationship between the bot- tom blades and the cutting cylinders is kept in good adjustment in order to ensure good cutting performance, minimum power consumption and prolonged life for the cutting edges. - Page 69 1.69 MAINTENANCE 1.69 Cutterhead Cylinder to Bottom Blade Adjustment continued Do not be tempted to over adjust, thus causing heavy contact between the cylinder and bottom blade, as this will cause very rapid uneven wear to take place leading to tram lining and waviness of the cutting edges.
-
Page 70: Cutterhead Back Lapping 1.70
1.70 MAINTENANCE 1.70 Cutterhead Back Lapping This process is recommended for restoring the sharp cutting edges to cylinders and bottom blades which are essential for good quality grass cutting. This process can only deal with a small amount of metal removal to restore the cutting edges. If the blade edges are seriously worn or damaged it will be necessary to remove the component parts and have them reground. -
Page 71: Grinding
1.71 MAINTENANCE 1.71 Cutterhead Back Lapping continued 9. If further backlapping is necessary repeat steps 3 to 8. 10. Thoroughly remove and wash off all traces of the carborundum paste from the cylinders and bottom blades. 11. Move the control lever to the ‘Normal Operation’. - Page 72 1.72 MAINTENANCE 1.72 Cutterhead Bottom Blade Replacement continued The new bottom blade must be ground on its holder prior to refitting to the cutterhead. Adjust the cut- ting cylinder position to give adequate clearance for fitting the new bottom blade holder. Refit the bottom blade holder assembly to the cutterhead us- ing the original fixing bolts and tighten to a torque of 35Nm (26 lbf.ft).
-
Page 73: Grass Cutting Faults 1.73
GRASS CUTTING FAULTS 1.73 1.73 FAULT POSSIBLE CAUSE REMEDY Areas of uncut grass at Turning too tightly Reduce turning radius point of overlap between Mower sliding sideways when Mow up/down slope cutting cylinders travelling across face of slope One end of cutterhead out of ground contact caused by: - Poorly routed hoses or wrongly Reroute hoses/reposition hydraulic adaptors... - Page 74 GRASS CUTTING FAULTS 1.74 1.74 FAULT POSSIBLE CAUSE REMEDY Lines of uncut or badly Tram lining of cutting edges due to heavy Back lap or regrind to restore cutting edges cut grass in direction of contact caused by poor cutting cylinder to travel bottom blade adjustment Bottom blade in ground contact...
-
Page 75: Trouble Shooting 1.75
TROUBLE SHOOTING 1.75 1.75 When using the following chart it may be found that overhaul of major components or hydraulic pressure adjustments are necessary. In this case it is recommended that your authorised dealer make these repairs as they are properly equipped to do this work. WARNING: PREVENT ACCIDENTS - ALWAYS Apply the parking brake, switch off the engine and remove the ignition key before attempting to work on the mower. - Page 76 TROUBLE SHOOTING 1.76 1.76 FAULT POSSIBLE CAUSE REMEDY Cylinder ‘knocks’ while High spot on cylinder or bottom blade due Remove high spot with a stone and back lap rotating to contact with foreign object to restore cutting edges. Serious damage will require re grinding Worn cylinder bearings Replace as necessary...
- Page 77 TROUBLE SHOOTING 1.77 1.77 FAULT POSSIBLE CAUSE REMEDY Heavy wear on P.T.O. Lack of lubrication Re grease and repeat every 8 hours of work shaft Insufficient overlap between shaft inner and Check and adjust the P.T.O. operating length, outer sections refer to ‘ATTACHING THE MOWER TO THE TRACTOR’...
-
Page 78: Connection Diagram
CONNECTION DIAGRAM 1.78 1.78 ITEM NO. DESCRIPTION PART NO. QTY ITEM NOTE ITEM No. DESCRIPTION PART NO. ITEM NOTE REMOTE CONTROL 111-1794 ELECTRIC CONTROL BOX 111-1795 LIFT CONTROL BLOCK 768600 PROXIMITY SWITCH ASSY 111-1787 SOLENOID 768701 UMBILICAL CABLE 111-1790 Detail 'A' - Electric Control Box Detail 'B' - Lift Control Block To proximity To solenoid... -
Page 79: Tm5490 Hydraulic Circuit Diagram / Parts List 1.79
TM5490 HYDRAULIC CIRCUIT DIAGRAM 1.79 1.79... - Page 80 TM5490 HYDRAULIC CIRCUIT PARTS LIST 1.80 1.80 ITEM NO. DESCRIPTION PART NO. QTY ITEM NOTE ITEM No. DESCRIPTION PART NO. ITEM NOTE LIFT CYLINDER 74-06-012W LIFT CYLINDER 63-06-001W LIFT CYLINDER 74-06-058W LIFT CYLINDER 63-06-001W LIFT CYLINDER 74-06-012W LIFT CONTROL VALVE...
-
Page 81: Tm5490 Electric Hydraulic Circuit Diagram / Parts List 1.81
TM5490 ELECTRIC HYDRAULIC CIRCUIT DIAGRAM 1.81 1.81... - Page 82 TM5490 ELECTRIC HYDRAULIC CIRCUIT PARTS LIST 1.82 1.82 ITEM NO. DESCRIPTION PART NO. QTY ITEM NOTE ITEM No. DESCRIPTION PART NO. ITEM NOTE SOLENOID VALVE SOLENOID VALVE SOLENOID VALVE SOLENOID VALVE SOLENOID VALVE SOLENOID VALVE SOLENOID VALVE SOLENOID VALVE VALVE - MANUAL LIFT OVERRIDE...
-
Page 83: Tm7490 Hydraulic Circuit Diagram / Parts List 1.83
TM7490 HYDRAULIC CIRCUIT DIAGRAM 1.83 1.83... - Page 84 TM7490 HYDRAULIC CIRCUIT PARTS LIST 1.84 1.84 ITEM NO. DESCRIPTION PART NO. QTY ITEM NOTE ITEM No. DESCRIPTION PART NO. ITEM NOTE LIFT CYLINDER 66-06-001W LIFT CYLINDER 74-06-012W LIFT CYLINDER 63-06-001W LIFT CYLINDER 74-06-058W LIFT CYLINDER 63-06-001W LIFT CYLINDER 74-06-012W LIFT CYLINDER 66-06-001W LIFT CONTROL VALVE...
-
Page 85: Tm7490 Electric Hydraulic Circuit Diagram / Parts List 1.85
TM7490 ELECTRIC HYDRAULIC CIRCUIT DIAGRAM 1.85 1.85... - Page 86 TM7490 ELECTRIC HYDRAULIC CIRCUIT PARTS LIST 1.86 1.86 ITEM NO. DESCRIPTION PART NO. QTY ITEM NOTE ITEM No. DESCRIPTION PART NO. ITEM NOTE SOLENOID VALVE SOLENOID VALVE SOLENOID VALVE SOLENOID VALVE SOLENOID VALVE SOLENOID VALVE SOLENOID VALVE SOLENOID VALVE VALVE - MANUAL LIFT OVERRIDE SOLENOID VALVE CHECK VALVE HYDRAULIC CYLINDER NO.
- Page 87 TM5490 & TM7490 ELECTRICAL CIRCUIT DIAGRAM 1.87 1.87...
- Page 88 TM5490 & TM7490 ELECTRICAL CIRCUIT DIAGRAM 1.88 1.88 ITEM NO. DESCRIPTION PART NO. QTY ITEM NOTE ITEM No. DESCRIPTION PART NO. ITEM NOTE SWITCH - EMERGENCY STOP 111-1779 RELAY 111-0336 111-1780 TOGGLE SWITCH 70-09-001 DIODE 111-0348 UMBILICAL CABLE (INCLUDES ITEM 7)
-
Page 89: Warranty
Countries Other than the United States or Canada Customers should contact their Toro Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor’s service or have difficulty obtaining guarantee information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company. - Page 90 1.90 NOTES 1.90...
- Page 91 1.91 NOTES 1.91...
- Page 92 1.92 NOTES 1.92...
-
Page 93: Customer Information 1.93
1.93 CUSTOMER INFORMATION 1.93 Machine Details Model: ......... Machine Serial No: .
