Heat sink and fan assembly

To remove the heat sink and fan assembly, use these procedures and illustrations.
Table 5-5 Heat sink and fan assembly descriptions and part numbers
Description
Heat sink and fan assembly
Before removing the heat sink and fan assembly, follow these steps:
1. Prepare the computer for disassembly
2. Remove the bottom cover
3. Disconnect the battery cable from the system board (see

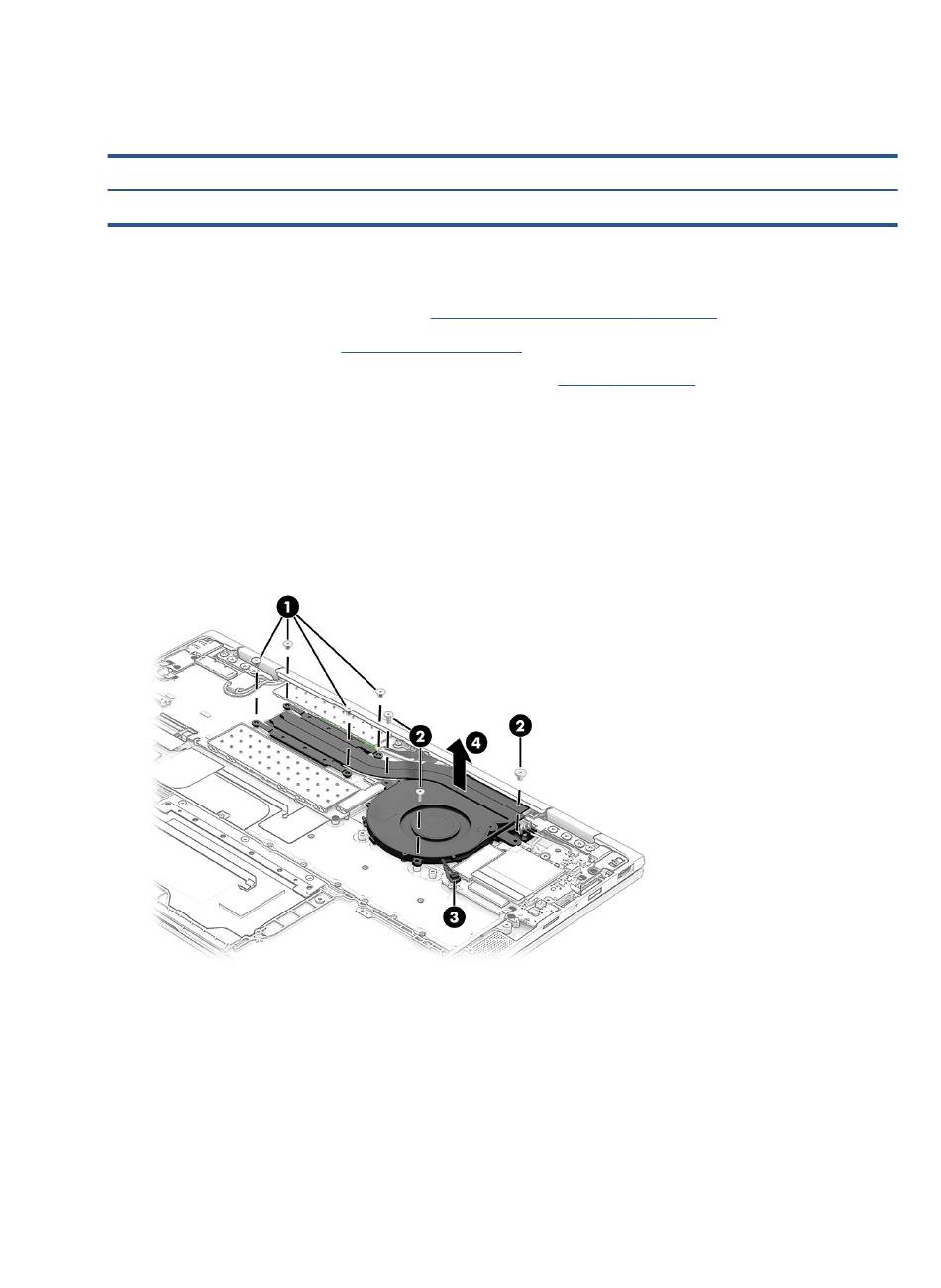

Remove the heat sink and fan assembly:
1. Remove the four Phillips M2.0 × 3.0 screws (1) that secure the heat sink to the computer.
2. Remove the three Phillips M2.0 × 3.0 screws (2) that secure the fan to the computer.
3. Disconnect the fan cable from the system board (3).
4. Remove the fan and heat sink assembly from the computer (4).
36 Chapter 5 Removal and replacement procedures for authorized service provider parts
(Preparation for disassembly on page
(Bottom cover on page 29).
Spare part number
M42267-001
29).
Battery on page 30).
