Griffin PowerMate Quick Start Guide

(Version 2.0)

The Griffin PowerMate USB tuning knob is an excellent way to control either the SDR-1000 or the

Flex-5000 using the PowerSDR software. Below are instructions detailing how to get the PowerMate

to work with the PowerSDR software.

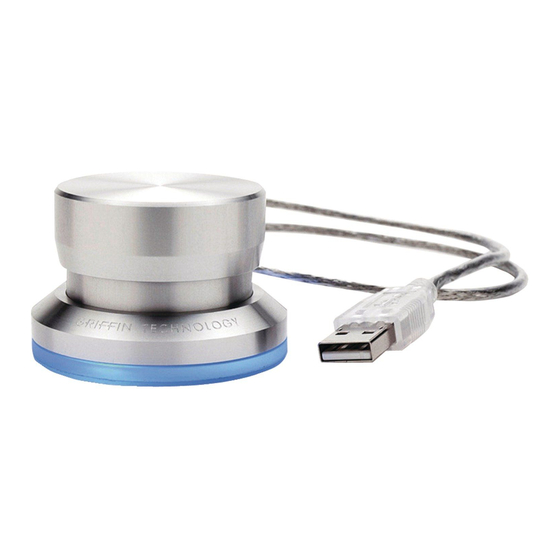

Figure 1 -- Griffin Powermate USB Control Knob

If you already have the PowerMate software installed and running, skip to the section called "Setup

PowerMate for PowerSDR".

Download Latest Software

Go to the following URL and download the latest software from Griffin Technologies:

http://www.griffintechnology.com/support/products/powermate

Save the file and run it to begin the driver installation.

You should see the following dialog:

Figure 2 – License Agreement Dialog

Check the box accepting the License Agreement and click on "Next".
