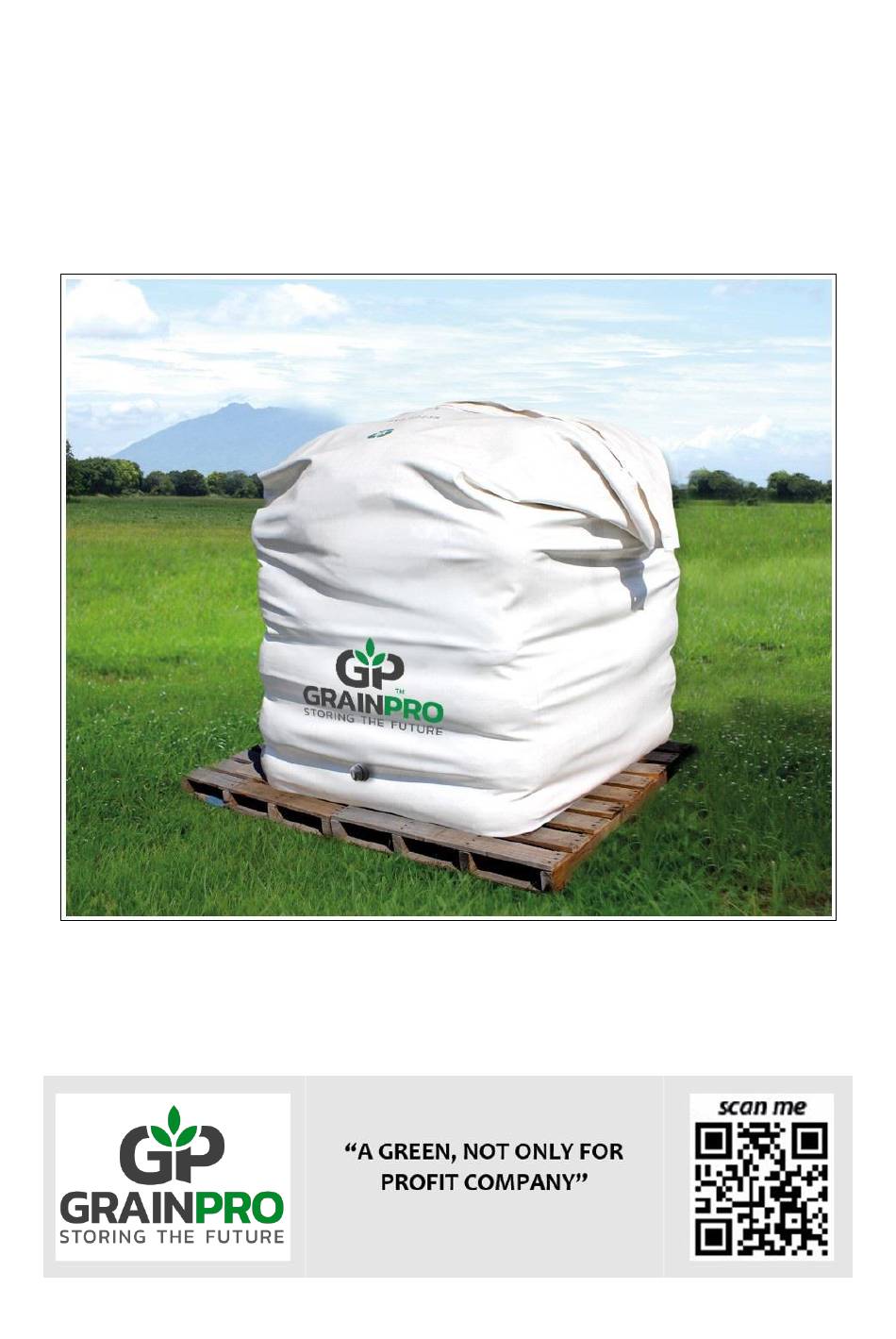

- Page 1 GRAINPRO® GRAINSAFE™ BAG-1.0/G-HF INSTRUCTION MANUAL MA4020JVD1025-3...
- Page 2 GrainPro®, Inc. 200 Baker Ave., Suite 309 Concord, MA 01742 USA Phone: +1 978 371 7118 Fax: +1 978 371 7411 Website: www.grainpro.com Email: sales@grainpro.com GrainPro® Philippines, Inc. Lot 46 Efficiency Avenue, Subic Bay Gateway Park I, Subic Bay Freeport Zone 2222 Philippines Phone: +63 47 252 7884 Fax: +63 47 252 7885 Website: www.grainpro.com...
-
Page 3: Table Of Contents
Recommended weekly monitoring ................. 16 Cleaning ........................17 Safekeeping ......................17 Prohibited item not allowed to ship ............... 17 Recycling ........................17 8. FREQUENTLY ASKED QUESTIONS AND ANSWERS ............17 9. WARRANTY CLAUSE ..................... 19 3/19 GrainPro® GrainSafe™ Bag-1.0/G-HF Instruction Manual MA4020JVD1025-3... -
Page 4: Introduction
1.2. PRODUCT GUARANTEE: 1.2.1. In accordance with the terms and conditions herewith, GrainPro, Inc. guarantees the quality of this product per its written warranty provided it is used according to the instructions in this manual. -
Page 5: Checklist
CHECKLIST Please inspect your GrainPro GS Bag-1.0/G-HF to ensure that the package includes the following items: PART NAME DESCRIPTION IMAGE 2.1. CARRY BAG 2.1.1. GrainSafe Bag. 2.1.2. Small parts. 2.1.3. Instruction manual. 2.2. ZIPPER PULL 2.2.1. For zipper sealing. Two (2) pieces (left and right) 2.3. -
Page 6: Components
0.83 (0.33) Color White Dimension (LWH), cm (inch) 120x120x190 (47.24x47.24x74.80) Material weight, gsm 1,050 Capacity (Based on wheat), kg (lbs) 1,000 (2,204.62) OTR, cc/m /day @0.1MPa 500 max WVTR, g/m /day 8 to 9 6/19 GrainPro® GrainSafe™ Bag-1.0/G-HF Instruction Manual MA4020JVD1025-3... -
Page 7: Installation
MC. 5.2.2 Unfold the bag and lay it out on the prepared site. Place the empty bag on the prepared area with the bottom stretched. 7/19 GrainPro® GrainSafe™ Bag-1.0/G-HF Instruction Manual MA4020JVD1025-3... -
Page 8: Zipping
After the GS Bag-1.0/GHF has been filled to its recommended capacity, position the hermetic zipper flat on top of the stack. b. Ensure that the zipper tracks are free from dirt so that the zipping can be done properly. 8/19 GrainPro® GrainSafe™ Bag-1.0/G-HF Instruction Manual MA4020JVD1025-3... - Page 9 Close the last few centimeters of the zipper track by manual pressing to latched the zipper’s tongue and groove. 5.3.5 Ensuring a complete hermetic closure: a. Make sure to close the zipper correctly to maintain gas-tightness. 9/19 GrainPro® GrainSafe™ Bag-1.0/G-HF Instruction Manual MA4020JVD1025-3...
-
Page 10: Pressure Decay Test
5.5.1. For protection against rodent attacks (one set contains 4 pieces): a. One set can be installed on any platform legs with leg perimeter (round or square) of 22 cm (9'') to 44 cm (17''). 10/19 GrainPro® GrainSafe™ Bag-1.0/G-HF Instruction Manual MA4020JVD1025-3... -
Page 11: Outdoor Installation
For every 2.0kg CO , 1 cubic meter of gas is being liberated. c. Additional 15% will be added to the total capacity. d. Formula: (1-Bulk Density) x Volume x 2 x 1.15. 11/19 GrainPro® GrainSafe™ Bag-1.0/G-HF Instruction Manual MA4020JVD1025-3... - Page 12 ). Ensure that all connections are made properly and gaskets are in place where they are required. The high- pressure hose should have a length of about 2-meter to facilitate easy connection to the inlet valve. 12/19 GrainPro® GrainSafe™ Bag-1.0/G-HF Instruction Manual MA4020JVD1025-3...
- Page 13 12-24 hours depending on temperature. The initial concentration of O is taken after 24 hours. 5.7.5. After the required weight of CO been applied, Immediately close the CO cylinder tap and the inlet port of the bag. 13/19 GrainPro® GrainSafe™ Bag-1.0/G-HF Instruction Manual MA4020JVD1025-3...
-
Page 14: Monitoring The Oxygen Level
54.1 12.6 39.7 15.6 25.4 18.6 11.0 96.2 81.8 67.5 53.1 12.8 38.8 15.8 24.4 18.8 10.1 95.2 80.9 66.5 10.0 52.2 13.0 37.8 16.0 23.4 19.0 94.3 79.9 65.6 10.2 51.2 13.2 36.8 16.2 22.5 19.2 14/19 GrainPro® GrainSafe™ Bag-1.0/G-HF Instruction Manual MA4020JVD1025-3... -
Page 15: Dismantling
86.6 72.3 57.9 11.8 43.5 14.8 29.2 17.8 14.8 20.8 5.8.4. Check for leakage, and do repairs. If the cause is not found, consult GrainPro’s Technical Support Department immediately at customercare@grainpro.com. 5.9. DISMANTLING 5.9.1. The commodity will only be unloaded at the end of storage. -
Page 16: Maintenance And Care
Water if present should be removed by hand or tools that do not risk puncturing the liner. 7.4.4. Ensure that there is no low overhanging structure or tree branch, which would allow rodents to jump on top of the GS BAG-1.0/GHF. 16/19 GrainPro® GrainSafe™ Bag-1.0/G-HF Instruction Manual MA4020JVD1025-3... -
Page 17: Cleaning
7.3.2. The client is advised to purchase local equivalent. 7.7. RECYCLING GrainPro GS Bag 1.0/GHF is made of PVC. 7.7.1. The products can be delivered to the nearest recycling facilities in the area. 7.7.2. Plastic #3 – PVC (Vinyl) can be recycled into paneling, flooring, speed bumps, decks or roadway gutters. - Page 18 ▪ No. GS Bag-1.0/G-HF is designed for outdoor use also under all types of climatic conditions 8.11. WILL A PUNCTURE NEGATE THE BENEFITS OF HERMETICITY OF THE GRAINPRO GS BAG- 1.0/G-HF? ▪ No. Although a hole/tear will allow oxygen to sip into the GS Bag-1.0/G-HF and will cultivate live insects around the puncture/hole.
-
Page 19: Warranty Clause
WARRANTY CLAUSE GrainPro® hereby warrants that products sold by it to Buyer shall be free of defects in workmanship and materials, for a period as follows, starting from the date of shipment (B/L): Five years for the GrainSafe™ Bag-1.0/Gas-Hermetic Fumigation (GS Bag-1.0/G-HF) liner and zipper.
