USER MANUAL

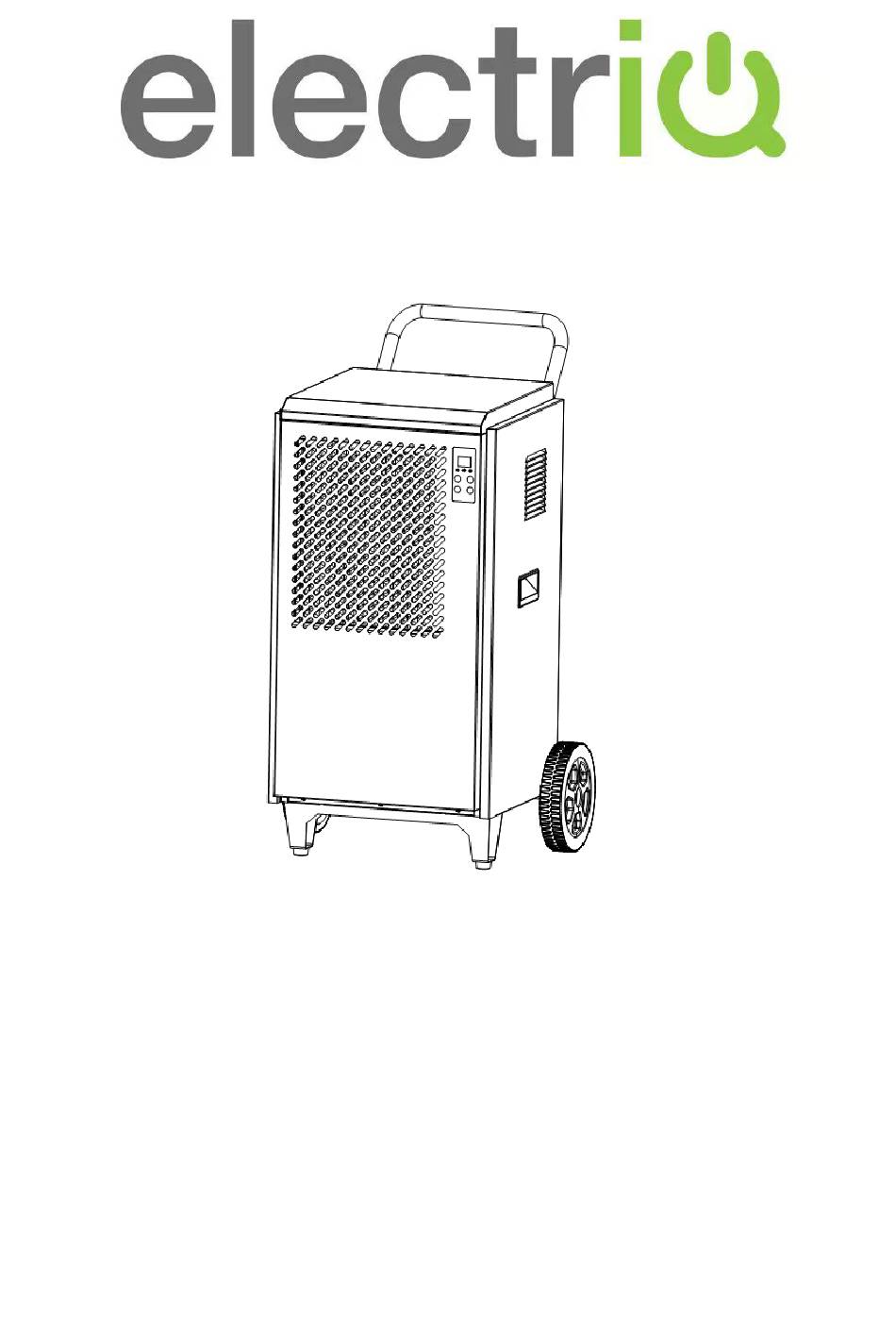

PORTABLE COMMERCIAL / INDUSTRIAL DEHUMIDIFIER
ECD70 70 Litres per day
Thank you for choosing electriQ.
Please read this user manual before using this innovative dehumidifier.
Please keep it safe for future reference.
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals
Advertisement
Table of Contents
Related Manuals for ElectrIQ ECD70
Summary of Contents for ElectrIQ ECD70
- Page 1 PORTABLE COMMERCIAL / INDUSTRIAL DEHUMIDIFIER ECD70 70 Litres per day Thank you for choosing electriQ. Please read this user manual before using this innovative dehumidifier. Please keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals...
-
Page 2: Table Of Contents
CONTENTS SAFETY PARTS FEATURES PRODUCT OVERVIEW POSITIONING THE DEHUMIDIFIER ASSEMBLY OPERATION CONTINUOUS DRAINAGE CARE AND MAINTENANCE TROUBLESHOOTING FREQUENTLY ASKED QUESTIONS TECHNICAL SPECIFICATIONS SUPPORT... -
Page 3: Safety
SAFETY INSTRUCTIONS IMPORTANT Carefully read the instructions before operating the unit • This appliance is for indoor use only and intended for use in a domestic environment only. • Any other use is not recommended by the manufacturer and may cause fire, electrical shocks or other injury to user or property. - Page 4 The appliance must be placed in a room without sources of ignition (for example: open • flames, an operating gas appliance or an operating electric heater). R290 refrigerant gas complies with European environmental directives. • R290 has a low GWP (Global Warming Potential) of 3. •...
-
Page 5: Parts
VISUAL SAFETY GUIDE ON WHERE OR WHEN NOT TO USE YOUR DEHUMIDIFIER PARTS Bolts (For Handle) 6m Flexible Water Pipe x 1 Bolts (For Axel) x 4 (Pre-attached to the unit) Nuts (For Wheels) x 2 Washers (For Wheels) x 2 Wheels x 2... -
Page 6: Features
40 and 95% ensuring your room is not dried too much and power is not wasted. FEATURES Your dehumidifier belongs to the electriQ dehumidifier range featuring power saving logic. Easy to use controls Cost effective way to combat mould, condensation and damp... -
Page 7: Positioning The Dehumidifier
Please note the unit should not be placed directly against a radiator or other heat source. When positioning your electriQ dehumidifier, ensure that it is placed clear of any obstacle that may limit the air movement. Place the dehumidifier on a flat dry surface. -
Page 8: Assembly
ASSEMBLY The appliance must be fully assembled before plugging in. In order to prevent damage to the compressor, after assembly the unit must be left in an upright position for 2 hours before plugging in. ATTACHING THE WHEELS 1. Attach the Axel to the base of the appliance using the 4 bolts provided. 2. -
Page 9: Operation
OPERATION NOTES: • The recommended humidity for a standard room is within the range of 50% to 70%, provided no special requirements are made. • Although the desired humidity can be set as low as 10%, lower settings will act as a continuous mode, as they are unlikely to be achievable in the UK. -
Page 10: Continuous Drainage
CONTINUOUS DRAINAGE The ECD70 does not include a removeable tank, and instead includes an internal uplift pump to extract the water collected. A 6 metre drainage pipe is provided attached on the side of the unit. If this needs to be extended, we advise to fit it into a pipe with a larger diameter, and ensure the larger pipe is travelling downwards. -
Page 11: Care And Maintenance
CARE AND MAINTENANCE Always shut off the unit and unplug it from the mains before cleaning or performing any maintenance. When it is not in use for long periods, it is advisable to remove the plug from the power socket. Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible damage to the unit. -
Page 12: Troubleshooting
Refrigerant Leakage well ventilated before attempting to restart. If this does Code not resolve, contact the service centre. Any other malfunctions will need to be reported to electriQ service centre. Do not attempt unauthorised repairs as these may invalidate the warranty. -
Page 13: Technical Specifications
TECHNICAL SPECIFICATION Model ECD70 Power Supply AC 220-240V/50Hz Dehumidifying 70L/Day (30℃ RH80%) Capacity Power 1300W Rated Current 5.7A High/Low Pressure 2.5/1.0Mpa Desired Humidity Range 10* to 95% Tank Capacity Drainage Pipe Internal Diameter Maximum uplift of condensate Product Dimensions (mm) -
Page 14: Frequently Asked Questions
Please contact the local council for details of your local household waste recycling centres. electriQ UK SUPPORT www.electriQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line.
