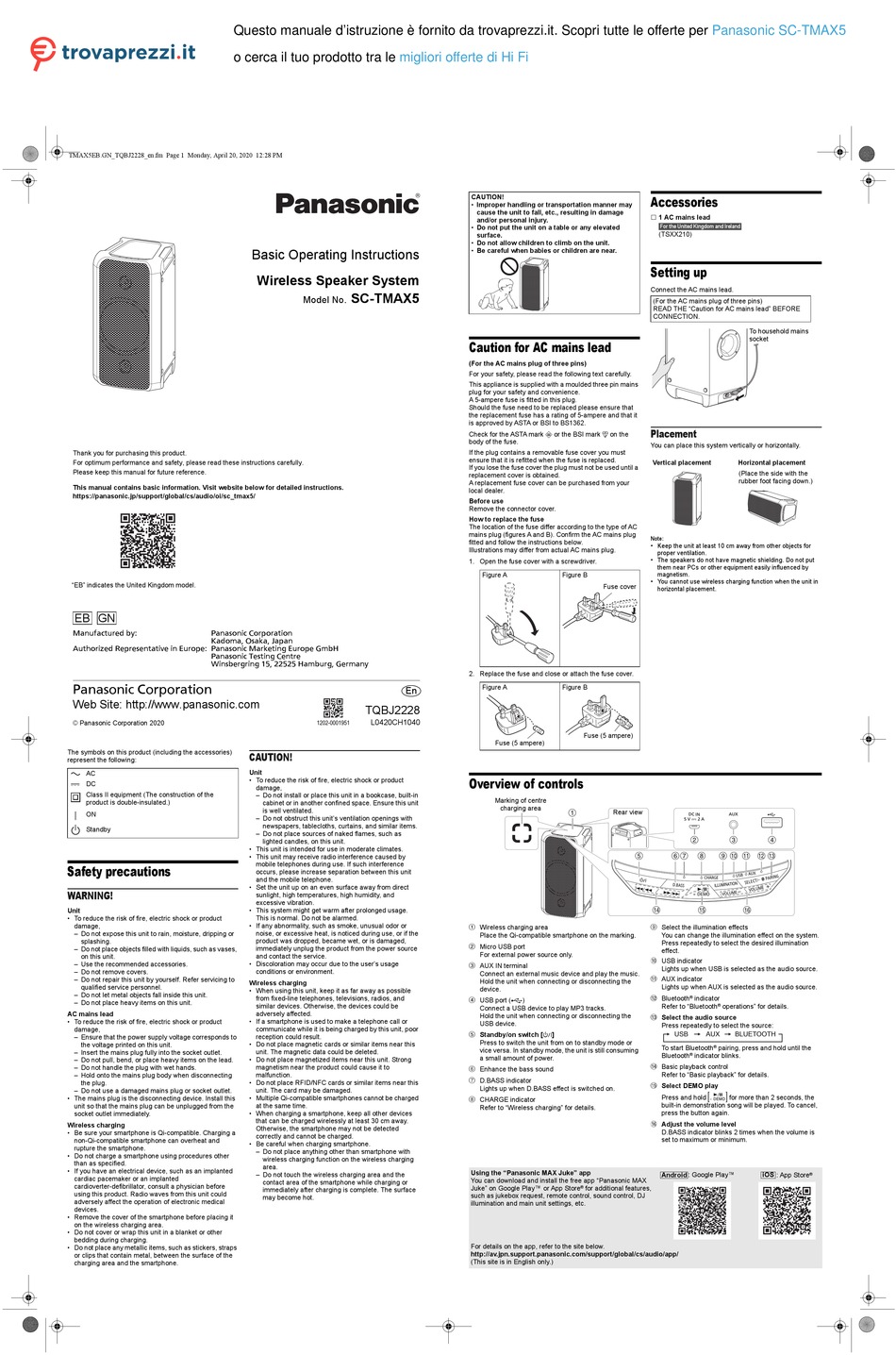

Panasonic SC-TMAX5 Basic Operating Instructions

Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
o cerca il tuo prodotto tra le
TMAX5EB.GN_TQBJ2228_en.fm Page 1 Monday, April 20, 2020 12:28 PM
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Please keep this manual for future reference.
This manual contains basic information. Visit website below for detailed instructions.
https://panasonic.jp/support/global/cs/audio/oi/sc_tmax5/
"EB" indicates the United Kingdom model.
EB GN
Manufactured by: Panasonic Corporation
Kadoma, Osaka, Japan
Authorized Representative in Europe: Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
Panasonic Corporation
Web Site: http://www.panasonic.com
© Panasonic Corporation 2020
The symbols on this product (including the accessories)
represent the following:
AC
DC
Class II equipment (The construction of the
product is double-insulated.)
ON
Standby
Safety precautions
WARNING!
Unit
• To reduce the risk of fire, electric shock or product
damage,
– Do not expose this unit to rain, moisture, dripping or
splashing.
– Do not place objects filled with liquids, such as vases,
on this unit.
– Use the recommended accessories.
– Do not remove covers.
– Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
– Do not let metal objects fall inside this unit.
– Do not place heavy items on this unit.
AC mains lead
• To reduce the risk of fire, electric shock or product
damage,
– Ensure that the power supply voltage corresponds to
the voltage printed on this unit.
– Insert the mains plug fully into the socket outlet.
– Do not pull, bend, or place heavy items on the lead.
– Do not handle the plug with wet hands.
– Hold onto the mains plug body when disconnecting
the plug.
– Do not use a damaged mains plug or socket outlet.
• The mains plug is the disconnecting device. Install this
unit so that the mains plug can be unplugged from the
socket outlet immediately.
Wireless charging
• Be sure your smartphone is Qi-compatible. Charging a
non-Qi-compatible smartphone can overheat and
rupture the smartphone.
• Do not charge a smartphone using procedures other
than as specified.
• If you have an electrical device, such as an implanted
cardiac pacemaker or an implanted
cardioverter-defibrillator, consult a physician before
using this product. Radio waves from this unit could
adversely affect the operation of electronic medical
devices.
• Remove the cover of the smartphone before placing it
on the wireless charging area.
• Do not cover or wrap this unit in a blanket or other
bedding during charging.
• Do not place any metallic items, such as stickers, straps
or clips that contain metal, between the surface of the
charging area and the smartphone.
migliori offerte di Hi Fi
Basic Operating Instructions

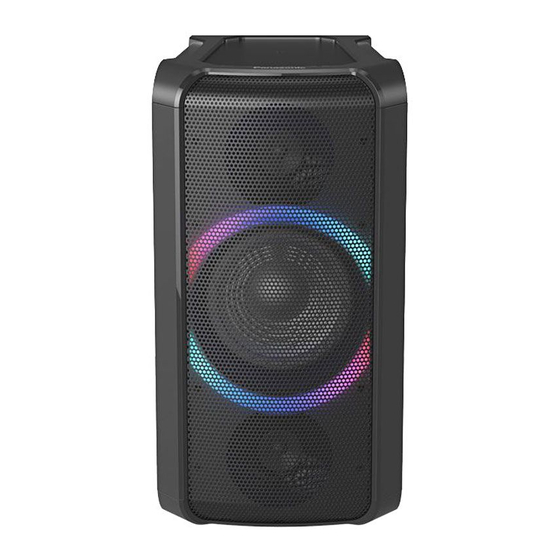

Wireless Speaker System
SC-TMAX5
Model No.
En
TQBJ2228
L0420CH1040
1202-0001951
CAUTION!
Unit
• To reduce the risk of fire, electric shock or product
damage,
– Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure this unit
is well ventilated.
– Do not obstruct this unit's ventilation openings with
newspapers, tablecloths, curtains, and similar items.
– Do not place sources of naked flames, such as
lighted candles, on this unit.
• This unit is intended for use in moderate climates.
• This unit may receive radio interference caused by
mobile telephones during use. If such interference
occurs, please increase separation between this unit
and the mobile telephone.
• Set the unit up on an even surface away from direct
sunlight, high temperatures, high humidity, and
excessive vibration.
• This system might get warm after prolonged usage.
This is normal. Do not be alarmed.
• If any abnormality, such as smoke, unusual odor or
noise, or excessive heat, is noticed during use, or if the
product was dropped, became wet, or is damaged,
immediately unplug the product from the power source
and contact the service.
• Discoloration may occur due to the user's usage
conditions or environment.
Wireless charging
• When using this unit, keep it as far away as possible
from fixed-line telephones, televisions, radios, and
similar devices. Otherwise, the devices could be
adversely affected.
• If a smartphone is used to make a telephone call or
communicate while it is being charged by this unit, poor
reception could result.
• Do not place magnetic cards or similar items near this
unit. The magnetic data could be deleted.
• Do not place magnetized items near this unit. Strong
magnetism near the product could cause it to
malfunction.
• Do not place RFID/NFC cards or similar items near this
unit. The card may be damaged.
• Multiple Qi-compatible smartphones cannot be charged
at the same time.
• When charging a smartphone, keep all other devices
that can be charged wirelessly at least 30 cm away.
Otherwise, the smartphone may not be detected
correctly and cannot be charged.
• Be careful when charging smartphone.
– Do not place anything other than smartphone with
wireless charging function on the wireless charging
area.
– Do not touch the wireless charging area and the
contact area of the smartphone while charging or
immediately after charging is complete. The surface
may become hot.
CAUTION!
• Improper handling or transportation manner may
cause the unit to fall, etc., resulting in damage
and/or personal injury.
• Do not put the unit on a table or any elevated
surface.
• Do not allow children to climb on the unit.
• Be careful when babies or children are near.
Caution for AC mains lead
(For the AC mains plug of three pins)
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin mains
plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that
the replacement fuse has a rating of 5-ampere and that it
is approved by ASTA or BSI to BS1362.
Check for the ASTA mark or the BSI mark on the
body of the fuse.
If the plug contains a removable fuse cover you must
ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a
replacement cover is obtained.
A replacement fuse cover can be purchased from your
local dealer.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of AC
mains plug (figures A and B). Confirm the AC mains plug
fitted and follow the instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure A Figure B
Fuse cover
2. Replace the fuse and close or attach the fuse cover.
Figure A Figure B
Fuse (5 ampere)
Fuse (5 ampere)
Overview of controls
Marking of centre
charging area
Rear view
A Wireless charging area
Place the Qi-compatible smartphone on the marking.
Micro USB port
B
For external power source only.
C AUX IN terminal
Connect an external music device and play the music.
Hold the unit when connecting or disconnecting the
device.
D USB port ( )
Connect a USB device to play MP3 tracks.
Hold the unit when connecting or disconnecting the
USB device.
E Standby/on switch [1]
Press to switch the unit from on to standby mode or
vice versa. In standby mode, the unit is still consuming
a small amount of power.
Enhance the bass sound
F
D.BASS indicator
G
Lights up when D.BASS effect is switched on.
H CHARGE indicator
Refer to "Wireless charging" for details.
Using the "Panasonic MAX Juke" app
You can download and install the free app "Panasonic MAX
Juke" on Google Play™ or App Store for additional features,
®
such as jukebox request, remote control, sound control, DJ
illumination and main unit settings, etc.
For details on the app, refer to the site below.
http://av.jpn.support.panasonic.com/support/global/cs/audio/app/
(This site is in English only.)
Panasonic SC-TMAX5
Accessories

1 AC mains lead
For the United Kingdom and Ireland
(TSXX210)
Setting up
Connect the AC mains lead.
(For the AC mains plug of three pins)
READ THE "Caution for AC mains lead" BEFORE
CONNECTION.
To household mains
socket
Placement
You can place this system vertically or horizontally.
Vertical placement Horizontal placement
(Place the side with the
rubber foot facing down.)
Note:
• Keep the unit at least 10 cm away from other objects for
proper ventilation.
• The speakers do not have magnetic shielding. Do not put
them near PCs or other equipment easily influenced by
magnetism.
• You cannot use wireless charging function when the unit in
horizontal placement.
CHARGE
I Select the illumination effects
You can change the illumination effect on the system.
Press repeatedly to select the desired illumination
effect.
USB indicator
J
Lights up when USB is selected as the audio source.
K AUX indicator
Lights up when AUX is selected as the audio source.
L Bluetooth indicator
®
Refer to "Bluetooth ® operations" for details.
Select the audio source
M
Press repeatedly to select the source:
USB AUX BLUETOOTH
To start Bluetooth ® pairing, press and hold until the
Bluetooth ® indicator blinks.
N Basic playback control
Refer to "Basic playback" for details.
O Select DEMO play
Press and hold for more than 2 seconds, the
built-in demonstration song will be played. To cancel,
press the button again.
P Adjust the volume level
D.BASS indicator blinks 2 times when the volume is
set to maximum or minimum.
: Google Play™ iOS : App Store
Android ®
