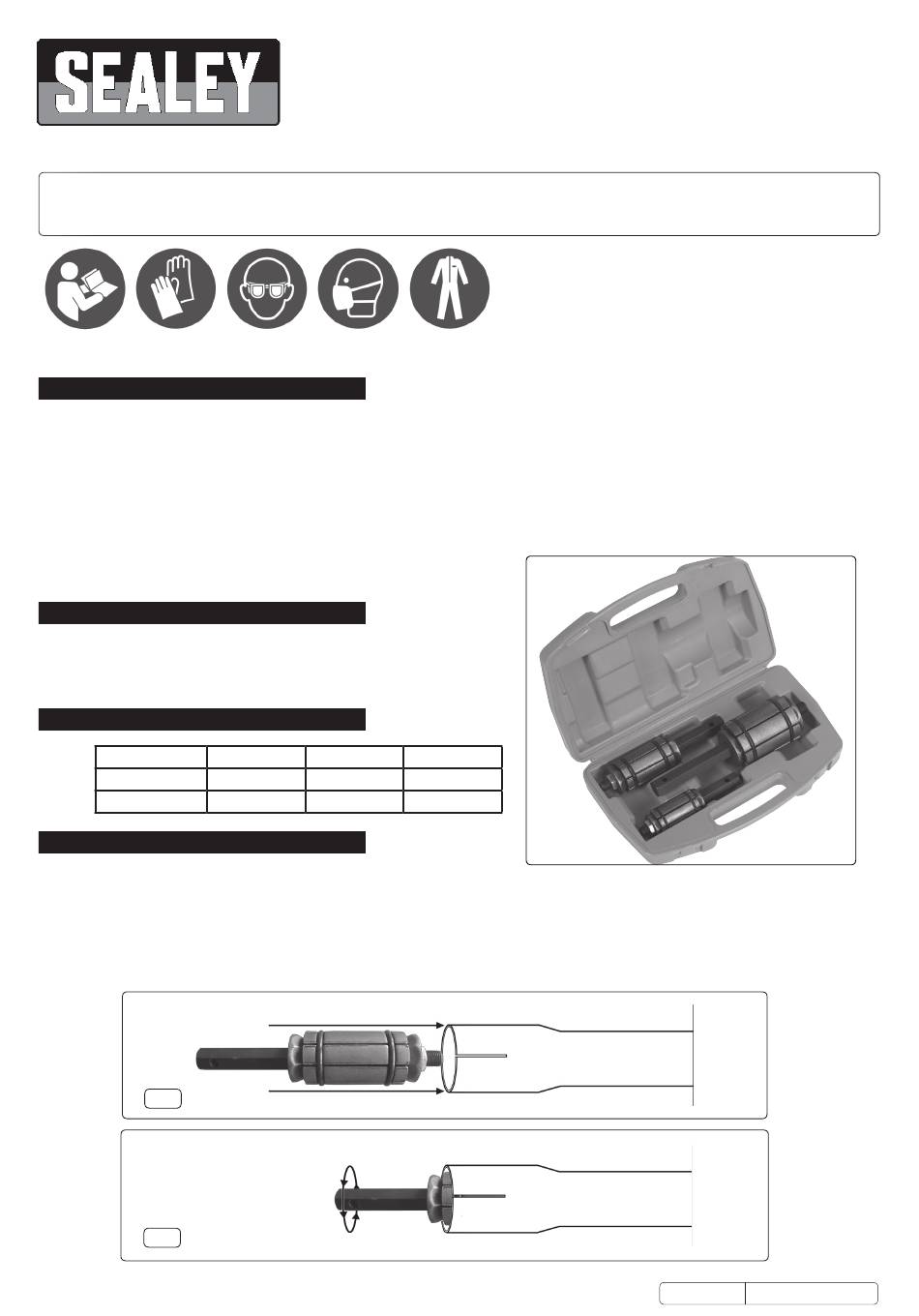

Sealey VS1668.V3 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear protective
instruction gloves
manual
1. SAFETY
Use in a suitable, clean and tidy work area, free from unrelated materials. Ensure there is adequate lighting.
9
DO NOT continue to attempt expanding any pipe that withstands expansion.
8
DO NOT insert a finger into the expander at any time.
8
DO NOT allow untrained people to use the expander.
8
DO NOT allow children to use or play with the expander.
8
DO NOT use the expander for tasks it is not designed to perform.
8
DO NOT operate expander if any parts are damaged or missing as this may cause failure and/or personal injury.
8
DO NOT operate the expander when you are tired or under the influence of alcohol, or intoxicating medication.
8
DO NOT try and expand exhaust pipes that are not already socketed
8
and have slits cut away for expansion.
Store the expander in a safe childproof place when not in use.
9
2. INTRODUCTION
i
Ideal for fitting aftermarket components to standard exhausts.
Used to expand a length of pipe in equal proportions so the pipe is the
same diameter and not tapered. Ensures a perfect fit with no leaks and
also removes dents and clamp marks.
3. SPECIFICATION
i
Expander size
Capacity
Drive (Hex)
4. OPERATION
4.1. Insert the correct sized exhaust pipe expander into the end of the
pipe (fig.1).
NOTE! Ensure that at least three quarters of the expander is inserted in the pipe. Failure to do so may result in damage to the expander.
4.2. Turn the hex drive clockwise to expand the tool and reshape the exhaust pipe (fig.2).
4.3. When the decided shape is made, wind the tool in the other direction to remove from the exhaust pipe.
DO NOT use an impact wrench or overload the tool.
8
NOTE! This tool is not for expanding straight pipe, only for reshaping and widening already socketed pipes.
fig.1
fig.2
© Jack Sealey Limited
INSTRUCTIONS FOR

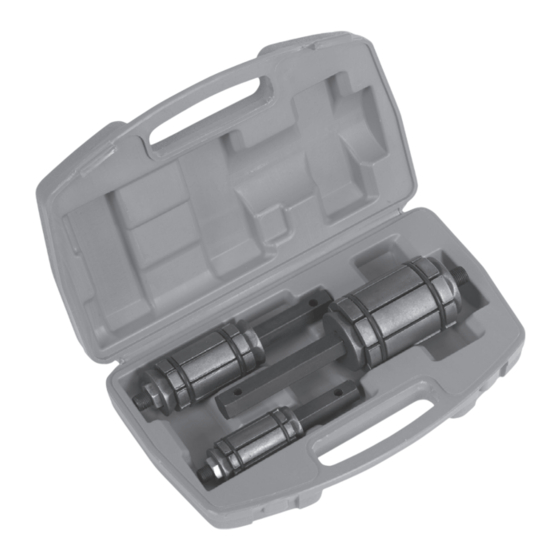

EXHAUST EXPANDER SET 3PC
MODEL NO:
Wear eye Wear face
protection mask
Small Medium
Ø29-44mm Ø40-57mm
17mm 17mm
VS1668.V3
Wear protective
clothing
Large
Ø54-81
19mm
Original Language Version
VS1668.V3 Issue 1 03/04/18
