Sealey LED191T Quick Manual

thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
Instruction
manual
1. SaFetY
1.1. general
It is important to ensure that the lamp is fully charged before initial use.
9
do not turn the lamp on when it is being charged.
8
do not shine directly into your, another person's or an animal's eyes.
8
do not allow children to use the lamp.
8
do not leave battery in a discharged state. Recharge battery immediately.
8
Recharge the battery at least once every six months of non-use.
1.2. electrical SaFetY For USe oF charger.
Use only the supplied charger for connecting the lamp to the power supply.
warning! It is the user's responsibility to read, understand and comply with the following instructions:
‰
You must ensure the risk of electric shock is minimised by the installation of appropriate safety devices e.g. RCd.
If the lamp is used in the course of business duties, it must be maintained in a safe condition and routinely
PAT (Portable Appliance Test) tested.
You must ensure that you inspect the charger plug, cable and connections for wear and damage to ensure items are safe before
connecting them to the mains power supply. If worn or damaged do not use.
warning! do not use any other type of charger with this product, other than the supplied mains or USB cable. Failure to observe
‰
this warning could result in injury and or fire. The use of any other type of charger will invalidate the warranty.
There are no user serviceable components. do not dismantle.
For indoor use only. do not allow the charger to become wet. do not use in wet or damp conditions.
do not pull the charger plug from the mains socket by the lead.
8
1.3. batterY SaFetY
warningS
‰
There are no user serviceable components. do not dismantle.
8
do not expose to temperatures above 60°C (140°F).
8
Replace the battery pack with genuine Sealey replacement product only.
9
If in doubt about electrical safety, contact a qualified electrician.
9
2. introdUction

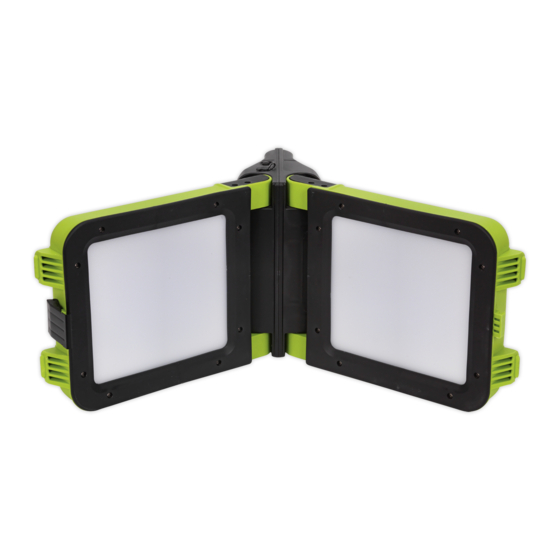

Innovative fold shut floodlight can be used independently or with optional stand Model No. LED193ST. Features three brightness levels
including an economy setting which operates a single panel to save battery power. Folds shut to protect lights when being transported
or stored. Powered by a 7.4V 8.8Ah rechargeable li-ion battery. Supplied with mains charger.
3. SpeciFication
model no ......................................................... LED191T
Battery ................................................7.4V-8.8Ah li-ion
lumen output ................................................... 2300lm
led Quantity ............................................................ 144
operating Time (100% / 50% / 30%) ............. 2.5/5/7.5hr
Charging Time ........................................................5.5hr
Power ......................................................................30W
led Quantity .................................................... 144Smd
IP Rating .................................................................IP65
© Jack Sealey limited
rechargeable Floodlight 30w SMd
Folding caSe
led191t
model no:
Original Language Version lED191T | Issue2 (F23) 26/03/18
