Smartwares RVS47LA Manual

These instructions must be read before use. Please retain for future reference.
If in doubt, we recommend that you consult a qualified electrician. Our products must not be modified. If any
modification is made, it will invalidate the warranty and may render the product unsafe.
Fuse value: A light fitting should be connected to a lighting circuit protected by a 5-amp fuse, (or 6-amp circuit breaker). If
a light fitting is to be connected to a ring main, a fused connection unit fitted with a 3-amp fuse should be installed. This
product is only suitable for connection to 230-240V-- 50 Hz supply and in accordance with I.E.E wiring regulations.
SAFETY Before commencing installation / maintenance, the electricity supply must be isolated. We recommend that the circuit fuse
is withdrawn to prevent accidental switching on whilst work is in progress.
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH NATIONAL BUILDING REGULATIONS.
If unsure please consult a qualified electritian or builder before installing lights

Installation notes:

Do not install when it is raining.

Be sure to switch off the power source before installing.

Make sure that the power wiring comes from a circuit

with an external 16A circuit breaker.
Keep a minimum of 1m away from the lighted object.

The unit can be installed only vertically, not horizontally.

Always fix your motion sensor light onto a solid surface.

For outdoor installation, a location under eaves is

preferable.
Avoid aiming the motion sensor at pools, heating

vents, air conditioners or objects that may change
temperature rapidly.
Prior to mounting, keep in mind that the motion

sensor is more sensitive to motion across the detection
field, and less sensitive to the motion directly
towards the detector. See diagram.

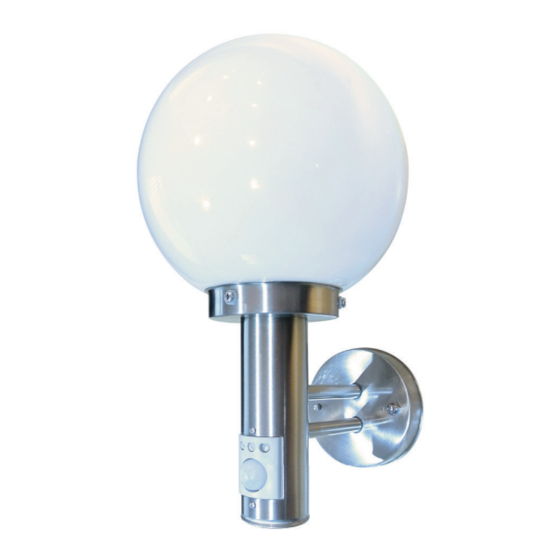

Stainles Steel Security Light with PIR
RVS47LA

IMPORTANT SAFETY INSTRUCTIONS

Bulb type:
MAX 60W, E27.
LESS SENSITIVE
SENSITIVITY TO MOTION
MORE SENSITIVE
