Package Contents

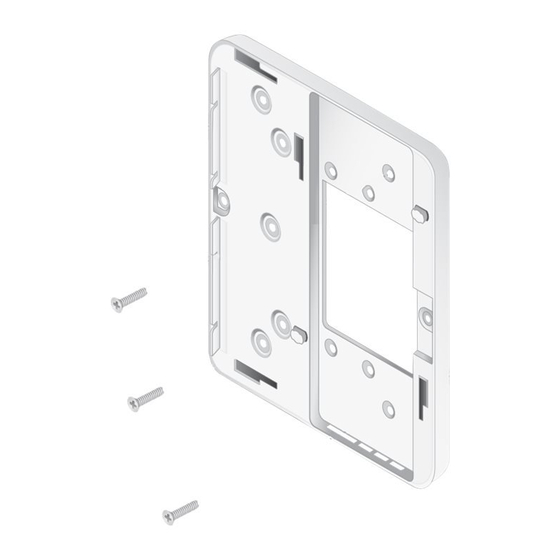

Dual Gang Wall Mount
(x4) #6-32 Machine Screws
Plastic Front Cover
(x2) T8H Torx Security Screw
205H-MNT2 Wall Mount Kit Installation Guide
Introduction
The 205H-MNT2 Wall Mount Kit provides a secure and practical solution for mounting the 205H access
point to single and dual gang wall boxes.
Installing the 205H-MNT2 Wall Mount Kit
Use the following instructions to install the 205H-MNT2 Wall Mount Kit.
1. If the wall box is not already exposed, unscrew and remove the existing wall plate, as shown in
Figure 1 Removing Existing Wall Plate
2. Detach any RJ-45 cables by unclipping the connectors from the wall plate, or cutting/removing the UTP
cable(s).
3. Use a short Ethernet cable (sold separately, part number AP-CBL-ETH10) to connect the E0 port to an
RJ-45 connector, or crimp an RJ-45 plug (not supplied) to the cable, and insert into the E0 port. Do the
same for the PT port if used.
0511763-03 |
March 2015
205H-MNT2 Wall Mount Kit
Installation Guide
Figure
1.
1
