T
ECHNICAL INFORMATION

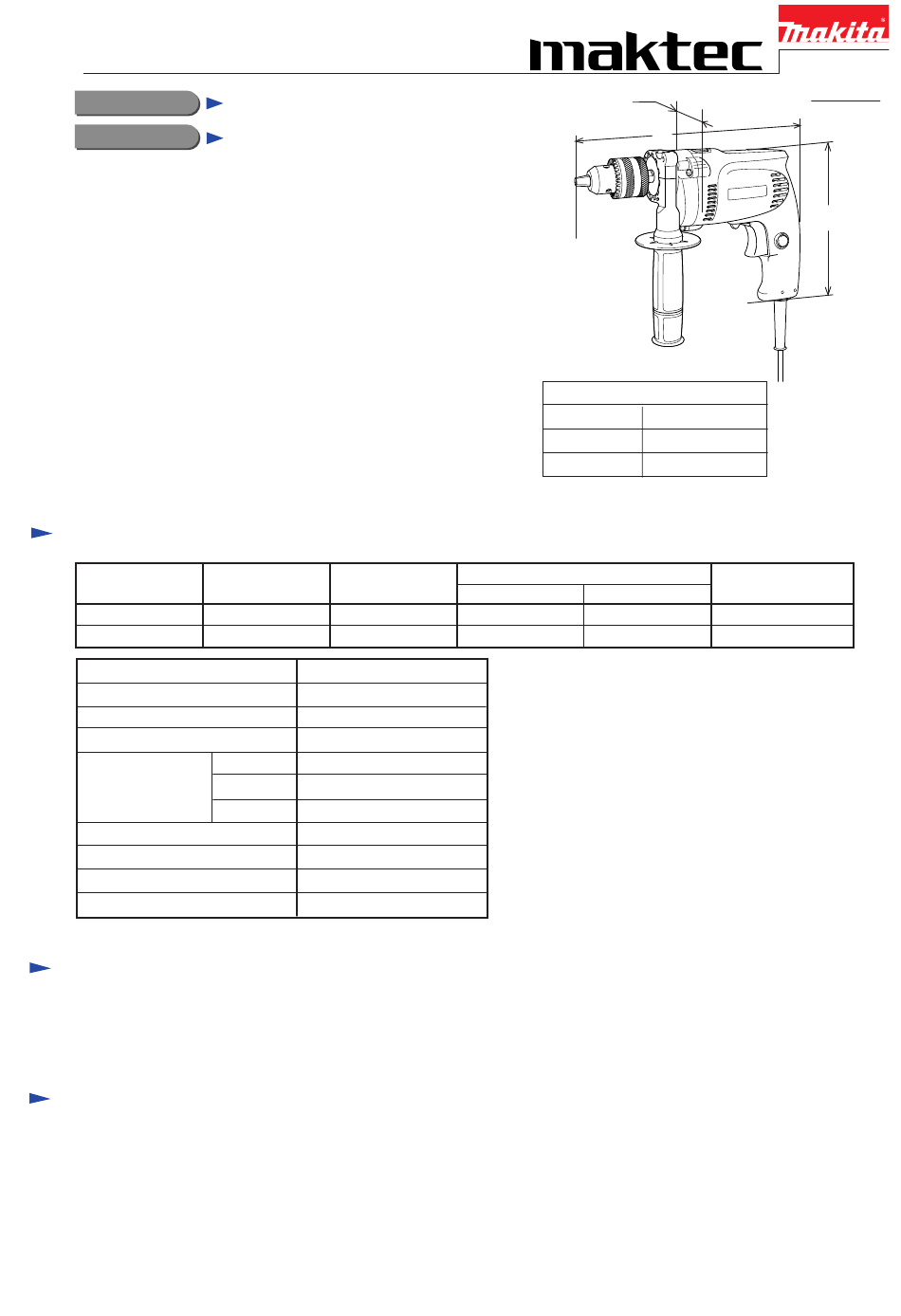

Model No.
Description
C
ONCEPT AND MAIN APPLICATIONS
New power tool series from MAKITA
* Less expensive but service life is as long as existing
MAKITA models.
* Easy to-repair-construction
S
pecification
Voltage (V)
220
230 / 240
No load speed : (min
Blows per min. : (min
Keyless chuck
Chuck ability : mm ( " )
Drilling
capacity : mm ( " )
Reverse switch
Protection from electric shock
Cord length : m ( ft )
Net weight :Kg (lbs )
S
tandard equipment
* Chuck key S13 ............................................... 1 pc.
* Side grip
< Note > The standard equipment for the tool shown may differ from country to country.
O
ptional accessories
* Stopper pole
MT811
13mm (1/2") Hammer Drill
Current (A)
Cycle (Hz)
2.0
1.9
= rpm)
0 - 2,800
-1
= bpm)
0 - 30,800
-1
No
1.5 - 13 (1/16 - 1/2)
Steel
13 (1/2)
Wood
18 (11/16)
Concrete
13 (1/2)
Yes
by double insulation
2.0 (6.6)
1.6 (3.5)
............................................... 1 pc.
Continuous Rating (W)
Input
50 / 60
430
50 / 60
430
W
L
Dimensions : mm ( " )
Length ( L )
272 (10-3/4)
Height ( H )
194 (7-5/8)
Width ( W )
71 (2-13/16)
Output
220
220
PRODUCT
P 1 / 7
H
Max. Output(W)
340
340
Advertisement
Related Manuals for Makita Maktec MT811
Summary of Contents for Makita Maktec MT811
- Page 1 Model No. MT811 Description 13mm (1/2") Hammer Drill ONCEPT AND MAIN APPLICATIONS New power tool series from MAKITA * Less expensive but service life is as long as existing MAKITA models. * Easy to-repair-construction Dimensions : mm ( " )
- Page 2 P 2 / 7 epair < 1 > Lubrication Apply MAKITA grease N. No.1 to the following portions marked with black triangle to protect parts and product from unusual abrasion. Apply 3.6g of the above mentioned grease Apply 0.1g of the above mentioned grease to the gear room.
- Page 3 P 3 / 7 epair < 5 > Disassembling helical gear 39 See Fig. 4. 1. Take off retaining ring S12, pin 4 and steel ball 3.5 from spindle. 2. Set gear housing on No.1R037 "Bearing setting plate", and set No.1R284 "Round bar for arbor" on spindle. 3.
-
Page 4: Circuit Diagram
P 4 / 7 ircuit diagram Insulated terminal Color index of lead wires Black White Choke coil Orange Purple Choke coil Brush Field holders Switch A side Switch 1a 1b 2b Switch B side Noise suppressor White Black or blue or brown... - Page 5 P 5 / 7 iring diagram Wiring diagram of field lead wires Put the insulated terminal Pass field lead wire (red) into the space illustrated below. between rib B and rib C Field lead wire (red) as illustrated below. Field lead Rib A Pass field lead wire wire (white)
- Page 6 P 6 / 7 iring diagram ( With choke coil) Wiring diagram of wires connected with brush holders Lead wire (purple) Inflect the receptacles as illustrated in Fig. A. The receptacle of lower brush holder side has Choke coil to be so inflected, that it does not cross the line of (purple) Fig.
- Page 7 P 7 / 7 iring diagram Wiring diagram of wires connected with brush holders ( Without choke coil) Inflect the receptacles as illustrated in Fig. B. The receptacle of lower brush holder has to be so inflected, that it does not cross the line of Fig.
